Total 18084 part numbers listed in this database. Shown in 566 pages by 32 items.
Pages:   Prev,   Next,   84  85  86  87  88  89  90  91  92  93  94  95  96  97  98  99  100  101  102  103  104
Part Number	Product Category	Description	Image	Stock Qty	Weight (lbs.)	Price (US$)	Order Quantity

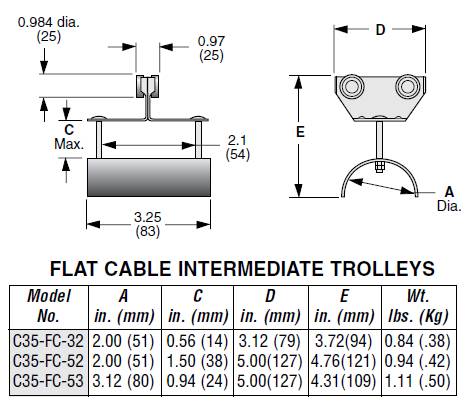

GRD-C35-FC-52	Gleason Parts	Gleason Hubbell Festoon Cable Trolley  Part C35-FC-52  aka GR629088  Series C35 Festoon   FC - Flat Cable Trolley  5 = 5 Inches Long  2 = 2 Inch Saddler Diameter  Ships from Stock to 10 Days  Dated 1-19  (1LB) H 6" L 6" W 6" Box		0	0.00	86.64
GRD-C35-FC-53	Gleason Parts	Gleason Hubbell Festoon Cable Trolley  Series C35 Festoon   Part GRD-C35-FC-53  FC - Flat Cable Trolley  5 = 5 Inches Long  3 = 3.12 Inch Saddle Diameter  aka GR629089  (1LB) H 6" L 6" W 6" Box		12	0.00	40.69
GRD-C35-FCA	Gleason Parts	Gleason Hubbell Festoon C35  Fixed Clamp Assembly  Part GRD-C35-FCA[1/2018]  aka GR629167	-	0	0.00	39.38
GRD-C35-FE-02	Gleason Parts	Gleason Hubbell Festoon C35  End Clip  Part GRD-C35-FE-02  Series C35 Festoon  GRD-C35-FE-02  FE - Flat cable End clamp  02 = 2 Inch Saddle Diameter  (2LBS) H 6" L 6" W 6"   Product available at Amazon.com and BrakeProducts.com  [Amazon][1/2018]  aka GR629085		0	0.00	32.60

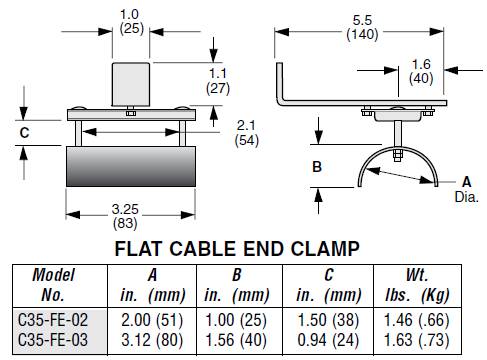

GRD-C35-FE-03	Gleason Parts	Gleason Hubbell Festoon C35  End Clip  Part GRD-C35-FE-03  Series C35 Festoon  Part GRD-C35-FE-03  FE - Flat cable End clamp  03 = 3.12 Inch Saddle Diameter  (2LBS) H 6" L 6" W 6"   Product available at Amazon.com and BrakeProducts.com  [Amazon][1/2018]  aka GR629086		0	0.00	32.60

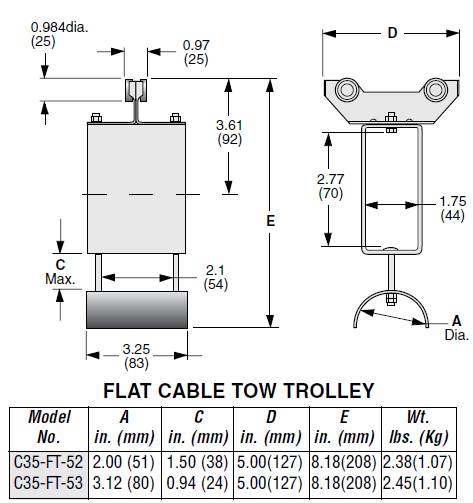

GRD-C35-FT-52	Gleason Parts	Gleason Hubbell Festoon Tow Trolley C35  Part C35-FT-53  aka GR629090  Series C35 Festoon Series  FT - Flat Tow Trolley  5 = 5 Inches Long  3 = 3 Inch Saddler Diameter  Ships in 5 Days, WI 53050  Dated 08-2023  (3LBS) H 10" L 6" W 6"		0	0.00	77.40
GRD-C35-FT-53	Gleason Parts	Gleason Hubbell Festoon Tow Trolley  Series C35 Festoon   Part GRD-C35-FT-53  FT - Flat Tow Trolley  5 = 5 Inches Long  3 = 3 Inch Saddler Diameter  (1LBS) H 6" L 6" W 6"   Product available at Amazon.com and BrakeProducts.com  [Amazon][1/2018]  aka GR629091		1	0.00	77.40

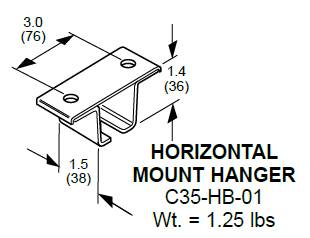

GRD-C35-HB-01	Gleason Parts	Gleason Hubbell Festoon C35  Track Hanger  Part GRD-C35-HB-01  For Horizontal Mounting  Sliding Clamp, does not clamp track tight  aka GR628269  (2LBS) H 4" L 6" W 6"		0	0.00	24.43

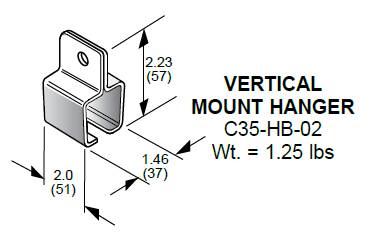

GRD-C35-HB-02	Gleason Parts	Gleason Hubbell Festoon C35  Hanger for Vertical Rail  Part GRD-C35-HB-02  aka GR628270  Product available at Amazon.com and BrakeProducts.com  [Amazon]  (2LBS) H 4" L 6" W 6" Box[1/2018]		0	0.00	28.51

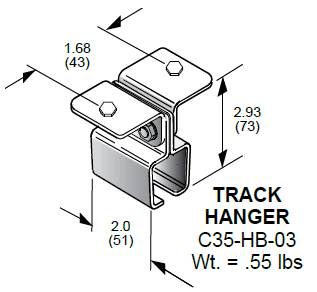

GRD-C35-HB-03	Gleason Parts	Gleason Hubbell Hanger C35  Part C35-HB-03  aka GR628271  Track Hanger & Clamp with Mounting Angles  C35 for Hanging and Fixing Track near its center point  Product available at Amazon.com and BrakeProducts.com  [Amazon] Dated 1/18  Ships in 5 days  (2LBS) H 4" L 6" W 6" Box		0	0.00	24.43
GRD-C35-ITG	Gleason Parts	Gleason Hubbell Festoon C35  Intermediate Trolley Assembly  Part GRD-C35-ITG  C35 Series[1/2018]  aka GR629169	-	0	0.00	87.53
GRD-C35-RC-11	Gleason Parts	Gleason Hubbell Festoon C35  Intermediate Trolley for Round Cable or Hose  Series C35 Festoon   Part GRD-C35-RC-11  With a Diameter between 0.31 to 0.59 Steel Construction  aka GR62825401  (2LBS) H 6" L 6" W 6"		0	0.00	77.40
GRD-C35-RC-12	Gleason Parts	Gleason Hubbell Festoon C35  Intermediate Trolley for Round Cable or Hose  Series C35 Festoon   Part GRD-C35-RC-12  With a Diameter between 0.60 to 0.94 Steel Construction  aka GR62825402  (2LBS) H 6" L 6" W 6"		0	0.00	77.40

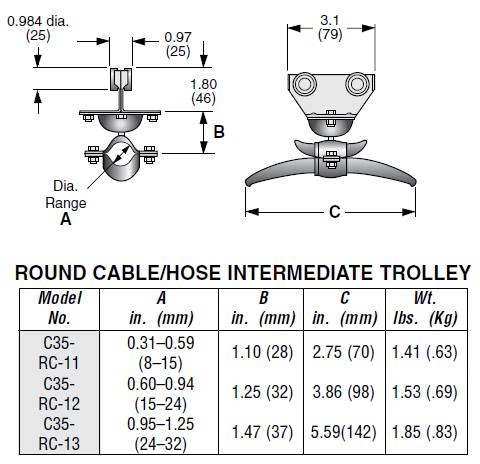

GRD-C35-RC-13	Gleason Parts	Gleason Hubbell Festoon C35  Intermediate Trolley for Round Cable or Hose  Series C35 Festoon   Part GRD-C35-RC-13  With a Diameter between 0.95 to 1.25 Steel Construction  aka GR62825403  (2LBS) H 6" L 6" W 6"		0	0.00	85.51
GRD-C35-RC-22	Gleason Parts	Hubbell Gleason Intermediate Trolley Assembly  Part GRD-C35-RC-22  aka GR62825502  Ships in 5 Days  Dated 1-19	-	0	0.00	107.15
GRD-C35-RE-11	Gleason Parts	Gleason Hubbell Festoon C35  End Clip for Round Cable or Hose  Series C35 Festoon   Part GRD-C35-RE-11  With a Diameter between 0.31 to 0.59 Steel Construction  aka GR62825101  (2LBS) H 6" L 6" W 6"		0	0.00	51.72

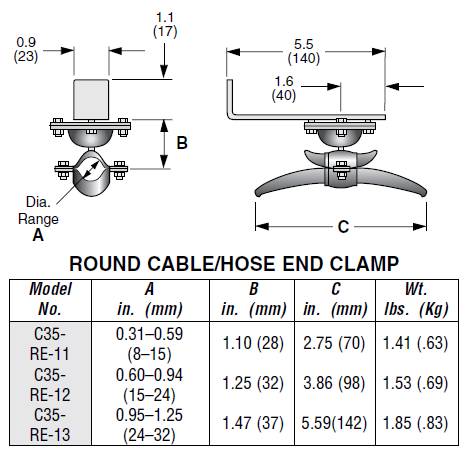

GRD-C35-RE-12	Gleason Parts	Gleason Hubbell Festoon C35  End Clip for Round Cable or Hose  Series C35 Festoon   Part GRD-C35-RE-12  With a Diameter between 0.60 to 0.94 Steel Construction  (2LBS) H 6" L 6" W 6"   Product available at Amazon.com and BrakeProducts.com  [Amazon][1/2018]  aka GR62825102		0	0.00	51.42
GRD-C35-RE-13	Gleason Parts	Gleason Hubbell Festoon C35  End Clip for Round Cable or Hose  Series C35 Festoon   Part GRD-C35-RE-13  With a Diameter between 0.95 to 1.25 Steel Construction  (2LBS) H 6" L 6" W 6"   Product available at Amazon.com and BrakeProducts.com  [Amazon][1/2018]  aka GR62825103		0	0.00	69.25
GRD-C35-RT-11	Gleason Parts	Gleason Hubbell Festoon C35  Tow Trolley for Round Cable or Hose  Series C35 Festoon   Part GRD-C35-RT-11  With a Diameter between 0.31 to 0.59 Steel Construction  (2LBS) H 6" L 6" W 6"   aka GR62825701		1	0.00	101.82
GRD-C35-RT-12	Gleason Parts	Gleason Hubbell Festoon C35  Tow Trolley for Round Cable or Hose  Series C35 Festoon   Part GRD-C35-RT-12  With a Diameter between 0.60 to 0.94 Steel Construction  (2LBS) H 6" L 6" W 6"   aka GR62825702		0	0.00	101.82

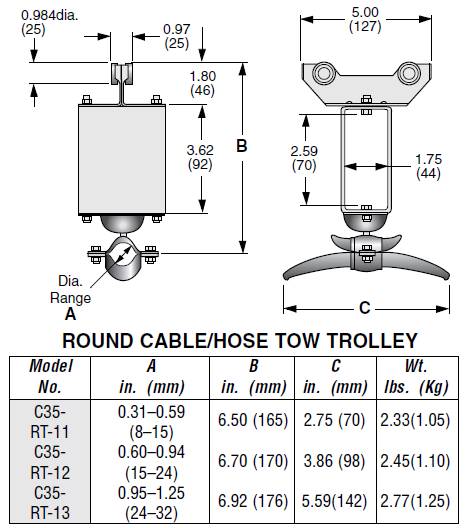

GRD-C35-RT-13	Gleason Parts	Gleason Hubbell Festoon C35  Tow Trolley for Round Cable or Hose  Series C35 Festoon   Part GRD-C35-RT-13  With a Diameter between 0.95 to 1.25 Steel Construction  (2LBS) H 6" L 6" W 6"   aka GR62825703		0	0.00	109.94
GRD-C35-TB	Gleason Parts	Gleason Hubbell Festoon C35  Track Bracket Assembly  Part GRD-C35-TB  C35 Series[1/2018]  aka GR629162	-	0	0.00	34.13
GRD-C35-TR-04	Gleason Parts	Gleason Hubbell Festoon C35  Part GRD-C35-TR-04  Rail, Box / C Track  4 Foot Long / 1.2192 Meters  1.26 Width X 1.180 High X 0.079 Thick  C30, C35, C40, 14 Gauge Galvanized  Product available at Amazon.com and BrakeProducts.com  (5LBS) H 52" L 4" W 4" Box[1/2018]  aka GR62826504	-	0	0.00	35.25
GRD-C35-TR-06	Gleason Parts	Gleason Hubbell Festoon C35  Part GRD-C35-TR-06  Rail, Box / C Track  6 Foot Long / 1.8288 Meters  1.26 Width X 1.180 High X 0.079 Thick  C30, C35, C40, 14 Gauge Galvanized  aka GR62826506  Product available at Amazon.com and BrakeProducts.com  [Amazon]  (10LBS) H 80" L 4" W 4" Box[1/2018]		0	0.00	44.79
GRD-C35-TR-10	Gleason Parts	Gleason Hubbell Rail - C Track C35  Part C35-TR-10  aka GR62915010  Rail, Box / C Track  10 Foot Long - 3.048 Meters  1.26 Width X 1.180 High X 0.079 Thick  C30, C35, C40 14 Gauge Galvanized  Motor Freight Only  Ships in 5 Days, WI 53050  Dated 08-2023  (11LBS) H 4" L 128" W 4" Box	-	8	0.00	74.13
GRD-C35-TR-12	Gleason Parts	Gleason Hubbell Festoon Rail C35  Part C35-TR-12  aka GR62826512  Rail, Box / C Track  12 Foot Long / 3.6576 Meters  1.26 Width X 1.180 High X 0.079 Thick  For C30, C35, C40  14 Gauge Galvanized  Ships in 5 Days, WI 51030  Due to the Length this requires Shipment via Motor Freight  Dated 08-2023  (14LBS) H 4" L 144" W 4" Box		0	0.00	89.57

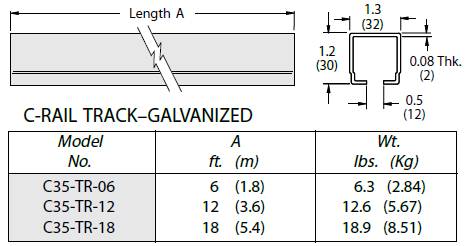

GRD-C35-TR-18	Gleason Parts	Gleason Hubbell Rail C35  Part C35-TR-18  aka GR62826518  Rail, Box / C Track  18 Foot Long / 5.4864 Meters  1.26 Width X 1.180 High X 0.079 Thick  C30, C35, C40, 14 Gauge Galvanized  Motor Freight Only  Dated 1/18  (20LBS) H 144" L 4" W 4"		0	0.00	126.22
GRD-C35-TR-2.5	Gleason Parts	Gleason Hubbell Festoon C35  Part GRD-C35-TR-2.5  Cross Arm Rail  By 30 Inches Long  C30, C35, C40 Series  aka GR629164  Dated 4/17[1/2018]	-	0	0.00	31.25
GRD-C35-TSA	Gleason Parts	Gleason Hubbell Festoon C35  Track Splice Assembly  Part GRD-C35-TSA  C35 Series[1/2018]  aka GR629161	-	0	0.00	54.65
GRD-C35-TTG	Gleason Parts	Gleason Hubbell Festoon C35  Tow Trolley Assembly  HNA Festoon  Part GRD-C35-TTG[1/2018]  aka GR62916805	-	0	0.00	79.78
GRD-C35-UN-01	Gleason Parts	Gleason Hubbell Control Unit  (20LBS) H 8" L 24" W 18"   Product available at Amazon.com and BrakeProducts.com  [Amazon][1/2018]  aka GR628260		0	0.00	614.73

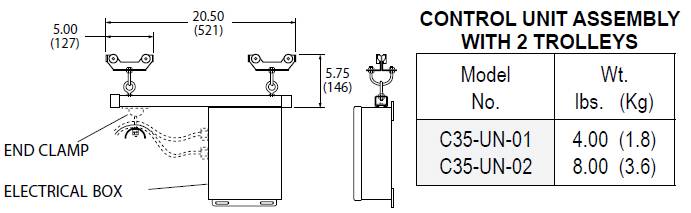

GRD-C35-UN-02	Gleason Parts	Gleason Hubbell Control Unit  (20LBS) H 8" L 24" W 18"   Product available at Amazon.com and BrakeProducts.com  [Amazon][1/2018]  aka GR628261		0	0.00	665.63

Prices are subject to change without notice. Last updated: 30-Apr-2025 05:42:36 AM (EST)
