GleasonDirect Online Order


Database Lookup:     By Part Number By Description
Total 18084 part numbers listed in this database. Shown in 566 pages by 32 items.
Pages:   Prev,   Next,   111  112  113  114  115  116  117  118  119  120  121  122  123  124  125  126  127  128  129  130  131
Part Number	Product Category	Description	Image	Stock Qty	Weight (lbs.)	Price (US$)	Order Quantity
GRD-C60-M12-3108I-S-S	Gleason Parts	Gleason Festoon (part C60-M12-3108I-S-S) [4/2017] [1/2018]	-	0	0.00	939.12
GRD-C60-M12-3108I-Z-S	Gleason Parts	Gleason Festoon (part C60-M12-3108I-Z-S) [4/2017] [1/2018]	-	0	0.00	900.58
GRD-C60-M12-3108T-S-S	Gleason Parts	Gleason Festoon (part C60-M12-3108T-S-S) [4/2017] [1/2018]	-	0	0.00	939.12
GRD-C60-M12-3108T-Z-S	Gleason Parts	Gleason Festoon (part C60-M12-3108T-Z-S) [4/2017] [1/2018]	-	0	0.00	900.58
GRD-C60-M12-3108U-S-S	Gleason Parts	Gleason Festoon (part C60-M12-3108U-S-S) [4/2017] [1/2018]	-	0	0.00	1,451.64
GRD-C60-M12-3108U-Z-S	Gleason Parts	Gleason Festoon (part C60-M12-3108U-Z-S) [4/2017] [1/2018]	-	0	0.00	1,374.55
GRD-C60-TR-06	Gleason Parts	Gleason Festoon Part C60  Part C60-TR-06  aka GR01749106  Rail/ C-Track  6 Foot Long / 1.8288 Meters  1.968" Width X 1.968" High X 0.123" Thick  Gauge, Galvanized  Dated 1/18  (8LBS) H 4" L 76" W 4" Box	-	0	0.00	103.80
GRD-C60-TR-12	Gleason Parts	Gleason Hubbell Rail - Track C60  Part C60-TR-12  aka GR01749112  Rail - C-Track  12 Foot Long - 3.6576 Meters  1.968" Width X 1.968" High X 0.123" Thick  Galvanized  Ships in 5 Days, WI 53050  Motor Freight Only  Dated 01-2021  (15LBS) H 4" L 150" W 4" Box	-	1	0.00	208.10
GRD-C60-TR-18	Gleason Parts	Gleason Hubbell Festoon Rail C60 18 FT  Part C60-TR-18  aka GR01749118  Rail - C-Track  18 Foot Long - 5.4864 Meters  1.968" Width X 1.968" High X 0.123" Thick  Gauge, Galvanized  Motor Freight Only 18 FT  Ships in 2 Weeks  Dated 01-2020  (24LBS) H 4" L 330" W 4" Box	-	4	0.00	311.55

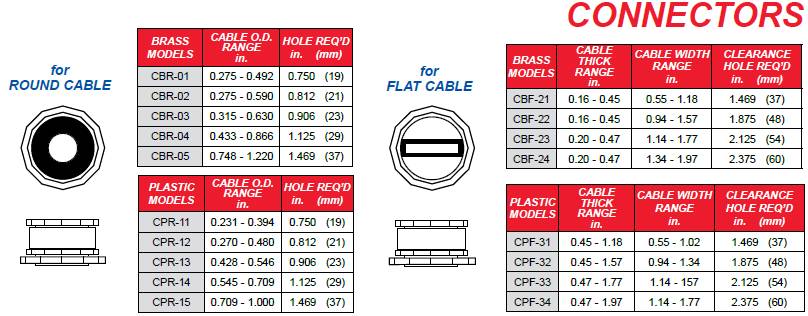

GRD-CBF-21	Gleason Parts	Gleason Hubbell Flat Cable Connector  Part CBF-21  aka GR613001  Flat Cable JB Connector Brass Construction   For Flat Cable PG29  0.45 Inches High  1.18 Inches Wide  Origin USA  Export Code 7419805050  Ships in 3 Days, WI 53050  Dated 08-2023  (2LBS) H 4" L 6" W 6" Box		0	0.00	97.66
GRD-CBF-22	Gleason Parts	Gleason Hubbell Connector  Part CBF-22  aka GR613002  Flat Cable Connector Brass Construction   For Flat Cable   0.45 Inches High  1.57 Inches Wide  Origin USA  Export Code 7419805050  Ships in 3 Days, WI 53050  Dated 07-2022  (2LBS) H 4" L 6" W 6" Box		46	0.00	144.35
GRD-CBF-23	Gleason Parts	Gleason Hubbell Connector  Part CBF-23  aka GR613003  Flat Cable Connector, Brass Construction   For Flat Electric Cable   0.47 Inches High  1.77 Inches Wide  Ships in 5 Days, WI 53050  Dated 08-2023  (2LBS) H 4" L 6" W 6" Box		2	0.00	233.51
GRD-CBF-24	Gleason Parts	Gleason Connector Flat Cable Connector Brass Construction   For Flat Cable   0.47 Inches High  1.97 Inches Wide  (2LBS) H 4" L 6" W 6"   Product available at Amazon.com and BrakeProducts.com  [Amazon][1/2018]  aka GR613004		0	0.00	318.43
GRD-CBR-01	Gleason Parts	Gleason Hubbell Connector  Round Cable Connector  Brass Construction  Round Cable Diameter Range  0.275 to - 0.492 Inches  (2LBS) H 4" L 6" W 6"   Product available at Amazon.com and BrakeProducts.com  [Amazon][1/2018]  aka GR611001		0	0.00	21.23
GRD-CBR-02	Gleason Parts	Gleason Hubbell Connector  Round Cable Connector  Brass Construction  Round Cable Diameter Range  0.275 to - 0.590 Inches  (2LBS) H 4" L 6" W 6"   Product available at Amazon.com and BrakeProducts.com  [Amazon][1/2018]  aka GR611002		0	0.00	25.45
GRD-CBR-03	Gleason Parts	Gleason Hubbell Connector  Round Cable Connector  Brass Construction  Round Cable Diameter Range  0.315 to - 0.630 Inches  (2LBS) H 4" L 6" W 6"   Product available at Amazon.com and BrakeProducts.com  [Amazon][1/2018]  aka GR611003		0	0.00	29.73
GRD-CBR-04	Gleason Parts	Gleason Hubbell Connector  Round Cable Connector  Brass Construction  Round Cable Diameter Range  0.433 to - 0.866 Inches  (2LBS) H 4" L 6" W 6"   Product available at Amazon.com and BrakeProducts.com  [Amazon][1/2018]  aka GR611004		0	0.00	42.48
GRD-CBR-05	Gleason Parts	Gleason Hubbell Connector  Round Cable Connector  Brass Construction  Round Cable Diameter Range  0.748 to - 1.22 Inches  (2LBS) H 4" L 6" W 6"   Product available at Amazon.com and BrakeProducts.com  [Amazon][1/2018]  aka GR611005		0	0.00	80.67

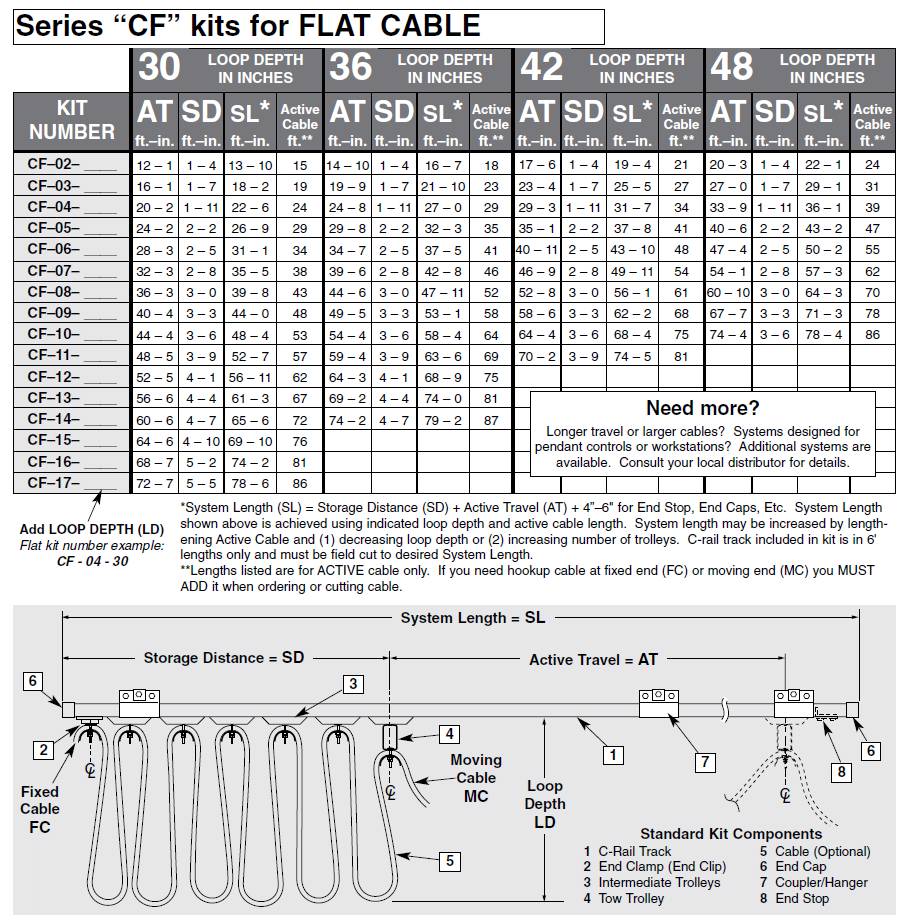

GRD-CF-02-30	Gleason Parts	Gleason Festoon Kit C-Rail C35  Part GRD-CF-02-30  CF = Cable Flat, for Flat Electric Cable  02 = Trolley / Carriers  30 = Inch Loop Depth  12 Feet 1 Inch AC, Active Travel  1 Foot 4 Inch SD, Storage Distance  13 Foot 10 Inch SL, System Length  15 Feet of Cable Required for Active Travel  Add the additional cable required for termination  at each end of the system  The Flat Electric Cable in not included with the kit  Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,  Intermediate Trolleys, Tow Trolley, End Clamp  Ships in 5 days or sooner[1/2018]  aka GR629001		0	0.00	544.78
GRD-CF-02-36	Gleason Parts	Gleason Festoon Kit C-Rail C35  Part GRD-CF-02-36  CF = Cable Flat, for Flat Electric Cable  02 = Trolley / Carriers  36 = Inch Loop Depth  14 Feet 10 Inch AC, Active Travel  1 Foot 4 Inch SD, Storage Distance  16 Foot 7 Inch SL, System Length  18 Feet of Cable Required for Active Travel  Add the additional cable required for termination  at each end of the system  The Flat Electric Cable in not included with the kit  Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,  Intermediate Trolleys, Tow Trolley, End Clamp  Ships in 5 days or sooner[1/2018]  aka GR629002		0	0.00	615.27
GRD-CF-02-42	Gleason Parts	Gleason Festoon Kit C-Rail C35  Part GRD-CF-02-42  CF = Cable Flat, for Flat Electric Cable  02 = Trolley / Carriers  42 = Inch Loop Depth  17 Feet 6 Inch AC, Active Travel  1 Foot 4 Inch SD, Storage Distance  19 Foot 4 Inch SL, System Length  21 Feet of Cable Required for Active Travel  Add the additional cable required for termination  at each end of the system  The Flat Electric Cable in not included with the kit  Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,  Intermediate Trolleys, Tow Trolley, End Clamp  Ships in 5 days or sooner[1/2018]  aka GR629003		0	0.00	484.60
GRD-CF-02-48	Gleason Parts	Gleason Festoon Kit C-Rail C35  Part GRD-CF-02-48  CF = Cable Flat, for Flat Electric Cable  02 = Trolley / Carriers  48 = Inch Loop Depth  20 Feet 3 Inch AC, Active Travel  1 Foot 4 Inch SD, Storage Distance  22 Foot 1 Inch SL, System Length  24 Feet of Cable Required for Active Travel  Add the additional cable required for termination  at each end of the system  The Flat Electric Cable in not included with the kit  Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,  Intermediate Trolleys, Tow Trolley, End Clamp  Ships in 5 days or sooner[1/2018]  aka GR629004		0	0.00	500.89
GRD-CF-03-30	Gleason Parts	Gleason Festoon Kit C-Rail C35  Part GRD-CF-03-30  CF = Cable Flat, for Flat Electric Cable  03 = Trolley / Carriers  30 = Inch Loop Depth  16 Feet 1 Inch AC, Active Travel  1 Foot 7 Inch SD, Storage Distance  18 Foot 2 Inch SL, System Length  19 Feet of Cable Required for Active Travel  Add the additional cable required for termination  at each end of the system  The Flat Electric Cable in not included with the kit  Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,  Intermediate Trolleys, Tow Trolley, End Clamp  Ships in 5 days or sooner[1/2018]  aka GR629005		0	0.00	545.67
GRD-CF-03-36	Gleason Parts	Gleason Festoon Kit C-Rail C35  Part GRD-CF-03-36  CF = Cable Flat, for Flat Electric Cable  03 = Trolley / Carriers  36 = Inch Loop Depth  19 Feet 9 Inch AC, Active Travel  1 Foot 7 Inch SD, Storage Distance  21 Foot 10 Inch SL, System Length  23 Feet of Cable Required for Active Travel  Add the additional cable required for termination  at each end of the system  The Flat Electric Cable in not included with the kit  Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,  Intermediate Trolleys, Tow Trolley, End Clamp  Ships in 5 days or sooner[1/2018]  aka GR629006		0	0.00	553.80
GRD-CF-03-42	Gleason Parts	Gleason Festoon Kit C-Rail C35  Part GRD-CF-03-42  CF = Cable Flat, for Flat Electric Cable  03 = Trolley / Carriers  42 = Inch Loop Depth  23 Feet 4 Inch AC, Active Travel  1 Foot 7 Inch SD, Storage Distance  25 Foot 5 Inch SL, System Length  27 Feet of Cable Required for Active Travel  Add the additional cable required for termination  at each end of the system  The Flat Electric Cable in not included with the kit  Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,  Intermediate Trolleys, Tow Trolley, End Clamp  Ships in 5 days or sooner[1/2018]  aka GR629007		0	0.00	745.27
GRD-CF-04-30	Gleason Parts	Gleason Festoon Kit C-Rail C35  Part GRD-CF-04-30  CF = Cable Flat, for Flat Electric Cable  04 = Trolley / Carriers  30 = Inch Loop Depth  20 Feet 2 Inch AC, Active Travel  1 Foot 11 Inch SD, Storage Distance  22 Foot 6 Inch SL, System Length  24 Feet of Cable Required for Active Travel  Add the additional cable required for termination  at each end of the system  The Flat Electric Cable in not included with the kit  Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,  Intermediate Trolleys, Tow Trolley, End Clamp  Ships in 5 days or sooner[1/2018]  aka GR629009		0	0.00	615.86
GRD-CF-04-36	Gleason Parts	Gleason Festoon Kit C-Rail C35  Part GRD-CF-04-36  CF = Cable Flat, for Flat Electric Cable  04 = Trolley / Carriers  36 = Inch Loop Depth  24 Feet 8 Inch AC, Active Travel  1 Foot 11 Inch SD, Storage Distance  27 Foot 0 Inch SL, System Length  29 Feet of Cable Required for Active Travel  Add the additional cable required for termination  at each end of the system  The Flat Electric Cable in not included with the kit  Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,  Intermediate Trolleys, Tow Trolley, End Clamp  Ships in 5 days or sooner[1/2018]  aka GR629010		0	0.00	774.32
GRD-CF-04-42	Gleason Parts	Gleason Festoon Kit C-Rail C35  Part GRD-CF-04-42  CF = Cable Flat, for Flat Electric Cable  04 = Trolley / Carriers  42 = Inch Loop Depth  29 Feet 3 Inch AC, Active Travel  1 Foot 11 Inch SD, Storage Distance  31 Foot 7 Inch SL, System Length  34 Feet of Cable Required for Active Travel  Add the additional cable required for termination  at each end of the system  The Flat Electric Cable in not included with the kit  Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,  Intermediate Trolleys, Tow Trolley, End Clamp  Ships in 5 days or sooner[1/2018]  aka GR629011		0	0.00	696.35
GRD-CF-05-30	Gleason Parts	Gleason Festoon Kit C-Rail C35  Part GRD-CF-05-30  CF = Cable Flat, for Flat Electric Cable  05 = Trolley / Carriers  30 = Inch Loop Depth  24 Feet 2 Inch AC, Active Travel  2 Foot 2 Inch SD, Storage Distance  26 Foot 9 Inch SL, System Length  29 Feet of Cable Required for Active Travel  Add the additional cable required for termination  at each end of the system  The Flat Electric Cable in not included with the kit  Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,  Intermediate Trolleys, Tow Trolley, End Clamp  Ships in 5 days or sooner[1/2018]  aka GR629013		0	0.00	762.71
GRD-CF-05-36	Gleason Parts	Gleason Festoon Kit C-Rail C35  Part GRD-CF-05-36  CF = Cable Flat, for Flat Electric Cable  05 = Trolley / Carriers  36 = Inch Loop Depth  29 Feet 8 Inch AC, Active Travel  2 Foot 2 Inch SD, Storage Distance  32 Foot 3 Inch SL, System Length  35 Feet of Cable Required for Active Travel  Add the additional cable required for termination  at each end of the system  The Flat Electric Cable in not included with the kit  Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,  Intermediate Trolleys, Tow Trolley, End Clamp  Ships in 5 days or sooner[1/2018]  aka GR629014		0	0.00	741.12
GRD-CF-05-42	Gleason Parts	Gleason Festoon Kit C-Rail C35  Part GRD-CF-05-42  CF = Cable Flat, for Flat Electric Cable  05 = Trolley / Carriers  42 = Inch Loop Depth  35 Feet 1 Inch AC, Active Travel  2 Foot 2 Inch SD, Storage Distance  37 Foot 8 Inch SL, System Length  41 Feet of Cable Required for Active Travel  Add the additional cable required for termination  at each end of the system  The Flat Electric Cable in not included with the kit  Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,  Intermediate Trolleys, Tow Trolley, End Clamp  Ships in 5 days or sooner[1/2018]  aka GR629015		0	0.00	794.07
GRD-CF-05-48	Gleason Parts	Gleason Festoon Kit C-Rail C35  Part GRD-CF-05-48  CF = Cable Flat, for Flat Electric Cable  05 = Trolley / Carriers  48 = Inch Loop Depth  40 Feet 6 Inch AC, Active Travel  2 Foot 2 Inch SD, Storage Distance  43 Foot 2 Inch SL, System Length  47 Feet of Cable Required for Active Travel  Add the additional cable required for termination  at each end of the system  The Flat Electric Cable in not included with the kit  Includes: Rail, Rail Couplers, Rail Hangers, Rail End Stop, Rail End Caps,  Intermediate Trolleys, Tow Trolley, End Clamp  Ships in 5 days or sooner[1/2018]  aka GR629016		0	0.00	969.22

Prices are subject to change without notice. Last updated: 30-Apr-2025 05:42:36 AM (EST)
