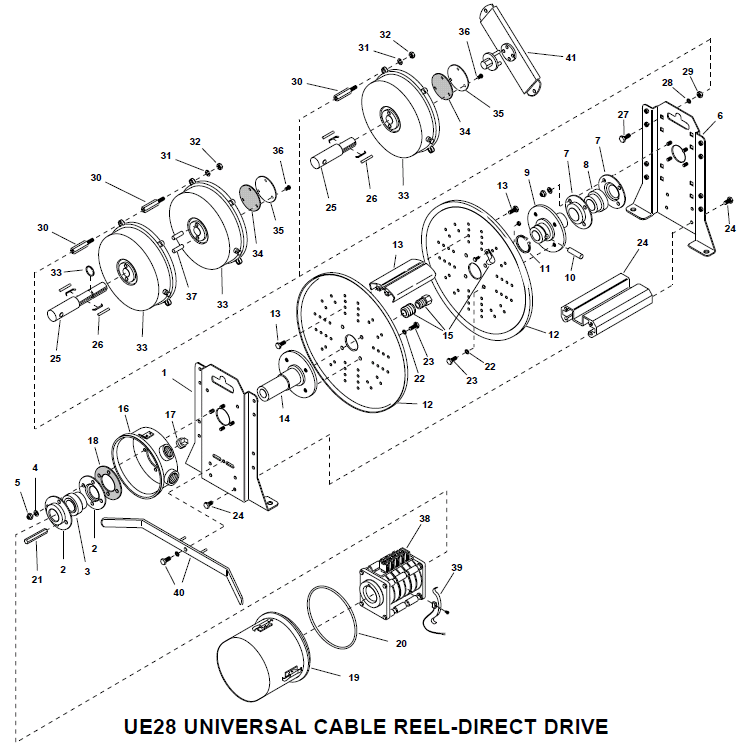

Gleason UE-28 Universal Cable Direct Drive Reels Replacement Parts

No	Qty Req'd	Part Number	Description	Picture	Stock Qty	Price Each	Qty Ord'd	Update Cart
1	1	GRD-GR042018	Gleason FRAME,SWIV,U28,SAFETY ORANGE (aka GR042018) Ships in 10 days	-	0	$486.95
2	2	GRD-GR012140	Gleason HOUSING FOR 2" BORE BEARING (aka GR012140) Ships in 10 days	-	0	$50.50
3	1	GRD-GR103837	Gleason BEARING-BALL 2.00 ID (aka GR103837) Ships in 21 days	-	0	$163.55
4	9	GRD-GR038424	N/A	-	0	N/A	N/A	N/A
5	8	GRD-GR028268	N/A	-	0	N/A	N/A	N/A
6	1	GRD-GR042008	Gleason FRAME,DRIVE,U28,SAFETY ORANGE (aka GR042008) Ships in 10 days	-	0	$560.00
7	2	GRD-GR119114	N/A	-	0	N/A	N/A	N/A
8	1	GRD-GR103823	N/A	-	0	N/A	N/A	N/A
9	1	GRD-GR042030	N/A	-	0	N/A	N/A	N/A
10	1	GRD-GR012137	Gleason STUB SHAFT DRIVE PIN,ZINC PLT (aka GR012137) Ships in 15 days	-	0	$5.50
11	1	GRD-GR118322	N/A	-	0	N/A	N/A	N/A
12	2	GRD-GR042028	Gleason SPOOL DISC,U28,SAFETY ORANGE (aka GR042028) Ships in 10 days	-	0	$260.85
13	1	GRD-GR04271001 N/A - 0 N/A N/A N/A GRD-GR04271002 N/A - 0 N/A N/A N/A GRD-GR04271003 N/A - 0 N/A N/A N/A GRD-GR04271004 N/A - 0 N/A N/A N/A GRD-GR04271005 N/A - 0 N/A N/A N/A GRD-GR04271006 N/A - 0 N/A N/A N/A GRD-GR04271007 N/A - 0 N/A N/A N/A GRD-GR04271008 N/A - 0 N/A N/A N/A GRD-GR04271009 N/A - 0 N/A N/A N/A GRD-GR04271010 N/A - 0 N/A N/A N/A GRD-GR04271011 N/A - 0 N/A N/A N/A GRD-GR04271012 N/A - 0 N/A N/A N/A GRD-GR04271013 N/A - 0 N/A N/A N/A GRD-GR04271014 N/A - 0 N/A N/A N/A GRD-GR04271015 N/A - 0 N/A N/A N/A
14	1	GRD-GR042068	N/A	-	0	N/A	N/A	N/A
15	1	Consult Factory	Cable Clamp/Connector Kit	-	0	N/A	N/A	N/A
16	1	GRD-GR040784	N/A	-	0	N/A	N/A	N/A
17	1	GRD-GR101652	Gleason Hubbell Plug  Part 101652  aka GR101652  Plug Square HD 3/4-14 C-FE/STL GAL  Origin USA  Export Code 7325991000  Ships in 5 Days, WI 53050  (1LB)	-	0	$56.10
18	1	GRD-GR118220	N/A	-	0	N/A	N/A	N/A
19	1	GRD-GR012409 Gleason Hubbell Slip Ring Cover Kit  Part 012409  aka GR012409  8 Inches Long  With Ring Seal  Ships in 5 Days, WI 53050  Dated 04-2024 - 0 $835.55 GRD-GR012410 Gleason Hubbell Slip Ring Cover Kit  Part 012410  aka GR012410  Extends 10.5 Inches to Cover the Slip Ring  For Slip Rings 47 &   Powder Coat Polyester Orange  Origin USA  Export Code 8479909596  Ships in 5 Days, WI 53050  Dated 01-2023  (10LBS) H 6" L 12" W 6" Box - 0 $913.70 GRD-GR012411 Gleason Hubbell Slip Ring Cover  Part 012441  aka GR012411  13 Inches Long  Color Orange  Ships in 5 Days, WI 53050  Dated 12-2021  (12LBS) - 2 $1,047.30 GRD-GR012412 Gleason Hubbell Cover Kit  Part 012412  aka GR012412  Cable Reel Slip Ring Cover  15.5 Inches Long  Color Orange  Ships in 4 Weeks, WI 53050  Dated 01-2023  (12LBS) H 10" L 16" W 10" Box - 0 $1,078.10 GRD-GR012413 Gleason Hubbell Slip Ring Cover Kit  Part 012413   aka GR012413   20.5 Inches Long  Ship in 10 Days, WI 53050  Dated 12-2022  (10LBS) - 1 $1,228.30 GRD-GR012414 Gleason Hubbell Slip Ring Cover Kit  Part 012414  aka GR012414  28.5 Inches Long  Ships in 10 Days, WI 53050  Dated 02-26-2022  (12LBS) - 1 $1,687.95
20	1	GRD-GR012458	Gleason Hubbell Housing Seal Ring  Part 012458  aka GR012458  Slip Ring Housing Seal  Origin USA  Export Code 4016935010  Ships in 15 Days, WI 53050  Dated 04-2025  (1LB)	-	0	$86.30
21	1	GRD-GR042067	N/A	-	0	N/A	N/A	N/A
22	4	GRD-GR028138	N/A	-	0	N/A	N/A	N/A
23	4	GRD-GR028131	N/A	-	0	N/A	N/A	N/A
24	1	GRD-GR04272201 N/A - 0 N/A N/A N/A GRD-GR04272202 N/A - 0 N/A N/A N/A GRD-GR04272203 N/A - 0 N/A N/A N/A GRD-GR04272204 N/A - 0 N/A N/A N/A GRD-GR04272205 N/A - 0 N/A N/A N/A
25	1	GRD-GR042152 Gleason SHAFT,SPRING,1002,DIR,STD (aka GR042152) Ships in 5 days - 0 $822.50 GRD-GR042153 Gleason SHAFT,SPRING,1001,DIR,STD (aka GR042153) Ships in 5 days - 0 $698.90 GRD-GR042156 N/A - 0 N/A N/A N/A GRD-GR042157 Gleason SHAFT,SPRING,621/801,DIR,STD (aka GR042157) Ships in 10 days - 0 $682.30 GRD-GR042554 Gleason SHAFT,STUB,351,DIR,STD,UREEL (aka GR042554) Ships in 5 days - 0 $633.95 GRD-GR042160 Gleason SHAFT,SPRING,1002,DIR,REV (aka GR042160) Ships in 5 days - 0 $82.55 GRD-GR042161 Gleason SHAFT,SPRING,1001,DIR,REV (aka GR042161) Ships in 5 days - 0 $698.90 GRD-GR042164 Gleason SHAFT,SPRING,622/802,DIR,REV (aka GR042164) Ships in 5 days - 0 $793.55 GRD-GR042165 Gleason SHAFT,SPRING,621/801,DIR,REV (aka GR042165) Ships in 5 days - 0 $682.30 GRD-GR042566 Gleason SHAFT,STUB,351,DIR,REV,UREEL (aka GR042566) Ships in 5 days - 0 $633.95
26	A/R	GRD-GR012425 Gleason Hubbell Pawl Kit  Part 012425  aka GR012425  Pawl Kit  For 35 & 60 Series Main Spring  Ships in 3 Days, WI 53050  Dated 01-2-20 - 0 $93.10 GRD-GR012426 Gleason Hubbell Pawl Kit for Main Springs  Part 012426  aka GR012426   For 62, 75 & 80 Series Main Springs  Includes Pawl Pin, Pawl Leaf Spring, Pawl Clip & a Snap Ring  Item 12, 1 per reel  NSN 3040-01-223-0631 Gov #  Ships in 5 Days, WI 53050  Dated 02-2024 - 2 $96.75 GRD-GR012427 Gleason SPL PAWL KIT 100 SPRING (aka GR012427) Ships in 5 days - 0 $98.35
27	4	GRD-GR031484	N/A	-	0	N/A	N/A	N/A
28	4	GRD-GR025942	N/A	-	0	N/A	N/A	N/A
29	4	GRD-GR025941	N/A	-	0	N/A	N/A	N/A
30	A/R	GRD-GR042555 Gleason STUD BOLT EXTENSION, #35SPRING (aka GR042555) Ships in 10 days - 0 $23.45 GRD-GR042183 N/A - 0 N/A N/A N/A GRD-GR042182 Gleason STUD BOLT EXTENSION, 100 SPRIN (aka GR042182) Ships in 10 days - 0 $30.80
31	4	GRD-GR029159	N/A	-	0	N/A	N/A	N/A
32	4	GRD-GR028502	N/A	-	0	N/A	N/A	N/A
33	A/R	GRD-GR042727 Gleason Hubbell Spring Motor Kit  Part 042727  aka GR042727  For a U Hose Reel  Series 35  Standard Rotation  Ships in 5 Days, WI 53050  Dated 05-2024 - 0 $650.55 GRD-GR042725 Gleason Hubbell Spring Motor Kit  Part 042725  aka GR042725  For a U Hose Reel  Series 62  Standard Rotation  Ships in 5 Days, WI 53050  Dated 01-2021  (42LBS) - 0 $986.75 GRD-GR042726 Gleason Hubbell Spring Motor Kit  Part 042726  aka GR042726  For a U Hose Reel  Series 75  Standard Rotation  Ships in 10 Days, WI 53050  Dated 01-2021 - 0 $1,038.35 GRD-GR042724 Gleason Hubbell Spring Motor Kit  Part 042724  aka GR042724  For a U Hose Reel  Series 80  Standard Rotation  Ships in 5 Days, WI 53050  Dated 07-2023 - 0 $1,139.70 GRD-GR042723 N/A - 0 N/A N/A N/A GRD-GR042732 N/A - 0 N/A N/A N/A GRD-GR042730 N/A - 0 N/A N/A N/A GRD-GR042731 Gleason Hubbell Spring Motor Kit  Part 042731  aka GR042731  For a U Hose Reel  Series 75  Reverse Rotation Hose Reel  Ships in 5 Days, WI 53050  Dated 01-2021 - 0 $1,038.35 GRD-GR042729 Gleason Hubbell Spring Motor Kit  Part 042729  aka GR042729  For a U Hose Reel  Series 80  Reverse Rotation Hose Reel  Ships in 10 Days, WI 53050  Dated 01-2021 - 0 $1,139.70 GRD-GR042728 N/A - 0 N/A N/A N/A
34	1	GRD-G51–23	N/A	-	0	N/A	N/A	N/A
35	1	GRD-G27–42	N/A	-	0	N/A	N/A	N/A
36	3	GRD-GR101220	N/A	-	0	N/A	N/A	N/A
37	1	GRD-GR021762 Gleason Hubbell Pin Kit  Part 021762  aka GR021762  Hub lock Pin Kit  100 Series Spring  Origin USA  Export Code 7318190000  Ships in 5 Days, WI 53050  Dated 07-2022  (1LB) H 4" L 6" W 4" Box - 0 $19.30 GRD-GR021761 Gleason HUB LOCK PIN KIT-80 SPRINGS (aka GR021761) Ships in 3 days - 0 $10.25
38	1	GRD-GR012285 Gleason Slip Ring Assembly  Part aka GR012285  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  2 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 23  Dated 1/18  (8LBS) H 5" L 10" W 5" Box - 1 $1,690.60 GRD-GR012286 Gleason Slip Ring Assembly  Part aka GR012286  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  3 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 33  Dated 1/18  (9LBS) H 5" L 10" W 5" Box - 1 $1,792.95 GRD-GR012287 Gleason Hubbell Slip Ring Assembly  Part 012287  aka GR012287  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  4 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 43  NSN 5977-01-311-2203 Gov  Ships in 10 Days, WI 53050  Dated 04-2024  (10LBS) H 5" L 10" W 5" Box 0 $1,905.95 GRD-GR012288 Gleason Hubbell Slip Ring Assembly  Part 012288  aka GR012288  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  6 Independent Circuits - Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 63  NSN 5977-01-186-6639 Gov#  Dated 01-2021  (10LBS) H 5" L 12" W 5" Box - 0 $2,213.00 GRD-GR012289 Gleason Hubbell Slip Ring Assembly 83  Part 012289  aka GR012289  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  8 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 83  NSN 5977-01-265-5103 Gov  Ships in 10 Days, WI 53050  Dated 01-2021  (9LBS) H 5" L 12" W 5" Box - 0 $2,520.70 GRD-GR012290 Gleason Hubbell Slip Ring Assembly  Part 012290  aka GR012290  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  10 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 103  Gov # NSN 5977-01-252-6406  Ships in 15 Days, WI 53050  Dated 01-2025  (12LBS) H 5" L 14" W 5" Box - 0 $2,868.45 GRD-GR012291 Gleason Hubbell Slip Ring Assembly  Part 012291  aka GR012291  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  12 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 123  Ship sin 10 Days, WI 53050  Dated 1-2020 - 0 $3,216.95 GRD-GR012292 Gleason Hubbell Slip Ring Assembly  Part 012292  aka GR012292  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  14 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 143  Ships in 5 Days, WI 53050  Dated 01-2021  (13LBS) H 5" L 18" W 5" Box - 0 $3,495.60 GRD-GR012293 Gleason Hubbell Slip Ring Assembly  Part 012293  aka GR012293  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  16 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 163  Ships in 10 Days, WI 53050  Dated 10-2024  (18LBS) H 5" L 20" W 5" Box - 0 $276.72 GRD-GR012294 Gleason Hubbell Slip Ring Assembly  Part 012294  aka GR012294  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  20 Independent Circuits - Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 203  NSN 5977-01-362-0979 US Gov #  Dated 01-2023  Ships in 2 to 3 Weeks, WI 53030  (20LBS) H 5" L 22" W 5" Box - 0 $5,193.15 GRD-GR012295 Gleason Hubbell Slip Ring Assembly  Part 012295  aka GR012295  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  24 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 243  [NSN 5977-01-371-8300]  Ships in 10 Days, WI 53050  Dated 1-19  (22LBS) H 5" L 24" W 5" Box - 0 $5,832.80 GRD-GR012296 Gleason Hubbell Slip Ring Assembly  Part 012296  aka GR012296  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  30 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 303  [NSN 5977-01-181-3136]  Dated 1-19  (24LBS) H 5" L 26" W 5" Box - 0 $6,822.30 GRD-GR012297 N/A - 0 N/A N/A N/A GRD-GR012298 Gleason Hubbell Slip Ring Assembly  Part RP075-02  aka GR012298  ROTA-POWER Self Contained Slip Ring   75 Amp Continuous Duty  Must be derated for multiple conductors  2 Conductor / Circuits  600 Volt Maximum  8 AWG Lead Wires for connection  2 Inch ID Drive Collar with double screws  6.38 Inch, Assembled Length Dim "A"  Part # 27   Normally a Stock Item @ BPI  Ships from Stock to 10 Days   Dated 08-2023  (10LBS) H 7" L 10" W 8" Box - 0 $1,752.40 GRD-GR012299 Gleason Hubbell Slip Ring Assembly  Part 012299 # 37  aka GR012299  Self Contained Ring Assembly  75 AMP Continuous Duty  3 Independent Circuits - Conductors  600 Volts Maximum  2 Inch Bore Diameter  Dated 01-2023  (13LBS) H 6" L 10" W 6" Box 0 $1,896.00 GRD-GR012300 Gleason Hubbell Slip Ring Assembly SR  Part 012300  aka GR012300  Completely Self Contained Ring Assembly  75 AMP Continuous Duty  4 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  Normally a Stock Item @ BPI  (10LBS) H 12" L 16" W 16" Box - 0 $2,008.50 GRD-GR012376 Gleason Hubbell Slip Ring Assembly  Part 012376  aka GR012376  Completely Self Contained Ring Assembly  75 AMP Continuous Duty  4 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #47  NSN 5977-01-317-4238 US GOV #  Dated 07-2020  (10LBS) H 5" L 10" W 5" Box - 2 $2,274.60 GRD-GR037194 Gleason Hubbell Slip Ring Assembly   Part 037194  aka GR037194  A Completely Self Contained Assembly  2 Conductor - Circuits  125 Amps Continuous Duty  600 Volts Maximum  2 Inch Bore Diameter  # 212  Origin USA  Export Code 8536908585  Normally a Stock Item @ BPI  Ships from Stock to 15 Days  Dated 01-2024  (7LBS) H 6" L 8" W 6" Box 0 $3,118.30 GRD-GR012377 Gleason Hubbell Slip Ring Assembly  Part 012377  aka GR012377  Completely Self Contained Ring Assembly  75 AMP Continuous Duty  8 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #87  Dated 1-19  (10LBS) H 5" L 10" W 5" Box - 0 $2,439.05 GRD-GR037294 Gleason COLLECTOR ASSEMBLY 312 (aka GR037294) Ships in 10 days - 1 $3,501.55 GRD-GR037295 Gleason Hubbell Slip Ring Assembly RP  Part 037295 #412  aka GR037295  ROTA-POWER Self Contained Slip Ring   125 Amp Continuous Duty  Must be derated for multiple conductors  4 Conductor - Circuits  600 Volt Maximum  4 AWG Lead Wires for connection  2 Inch ID Drive Collar with double set screws & a woodruff key  10.38 Inch Assemble Length Dim "A"  Origin USA  Export Code 8536908585  Ships in 15 Days, WI 53050 - 0 $3,811.85 GRD-GR012304 Gleason Hubbell Slip Ring Assembly  Part 012304  aka GR012304  Completely Self Contained Ring Assembly  200 AMP Continuous Duty  2 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  aka #220  Dated 07-2021  (8LBS) H 6" L 10" W 6" Box - 0 $2,735.10 GRD-GR012381 Gleason Hubbell Slip Ring Assembly  Part 012381  aka GR012381  Completely Self Contained Ring Assembly  200 AMP Continuous Duty  3 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #320  Dated 1-19  (12LBS) H 6" L 10" W 6" Box - 0 $3,299.10 GRD-GR012382 Gleason Hubbell Slip Ring Assembly  Part 012382  aka GR012382  #420 090065  Completely Self Contained Ring Assembly  200 AMP Continuous Duty  4 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #420  Normally a Stock Item @ BPI  Ships from Stock to 5 Days  Dated 06-2024 3 $3,861.45 GRD-GR012383 Gleason Hubbell Slip Ring Assembly  Part 012383  aka GR012383  Completely Self Contained Ring Assembly  75 AMP Continuous Duty  6 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #62  Ships in 5 Weeks, WI   Dated 08-2021  (10LBS) H 6" L 12" W 6" Box - 0 $5,264.70 GRD-GR012384 Gleason Hubbell Slip Ring Assembly  Part 012384  aka GR012384  Completely Self Contained Ring Assembly  200 AMP Continuous Duty  8 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #820  Dated 1-19  (18LBS) H 6" L 16" W 6" Box - 0 $6,601.05
39	A/R	GRD-GR012440 Gleason Hubbell Brush Kit  Part 012440  aka GR012440  For a 3 or 4 Conductors 35 AMP Slip Ring  Includes:  4, Brushes  4, Brush Fingers - Springs & Instructions  NSN 5977-01-182-7784 US Gov #  Origin USA  Export Code 8545200000  Ships in 5 Days, WI 53050  Dated 01-2024 - 0 $457.95 GRD-GR012441 Gleason Hubbell Brush Kit  Part 012441  aka GR012441  For a 75 Amp Slip Ring Assembly  Includes:  4 Brushes  4, Spring Fingers & Instructions  NSN 5977-01-317-4284 Gov #  Ships from Stock to 5 Days  Dated 08-2021  (2LBS) H 4" L 8" W 4" Box" - 0 $904.15 GRD-GR012443 Gleason Hubbell Brush Kit  Part 012443  aka GR012443  For a 200 Amp Slip Ring Assembly  Includes:  4 Brushes / 2 Brushes per Ring  Spring Fingers & Instructions  Enough brushes & spring fingers for a 2 conductor slip ring assembly  Origin USA  Export Code 8545200000  Ships from Stock to 5 Days, WI 53050  Dated 04-2025  (2LBS) H 4" L 8" W 4" Box - 0 $968.20
40	1	GRD-GR042733 Gleason SPANNER WRENCH KIT,UREEL,35-80 (aka GR042733) Ships in 5 days - 0 N/A N/A N/A GRD-GR042734 Gleason Hubbell Spanner Wrench  Part 042734  aka GR047734  Spanner Wrench, Main Spring Pretension  For U-Reels  With 100 Series Main Springs  Ships in 5 Days, WI 53050  Dated 01-2024  (6LBS) - 0 $128.00
41	1	GRD-GR042735 N/A - 0 N/A N/A N/A GRD-GR042736 Gleason RATCHET WRENCH KIT,UREEL,100 (aka GR042736) Ships in 5 days - 0 $791.35

Gleason "UE-28" Parts List (PDF)
