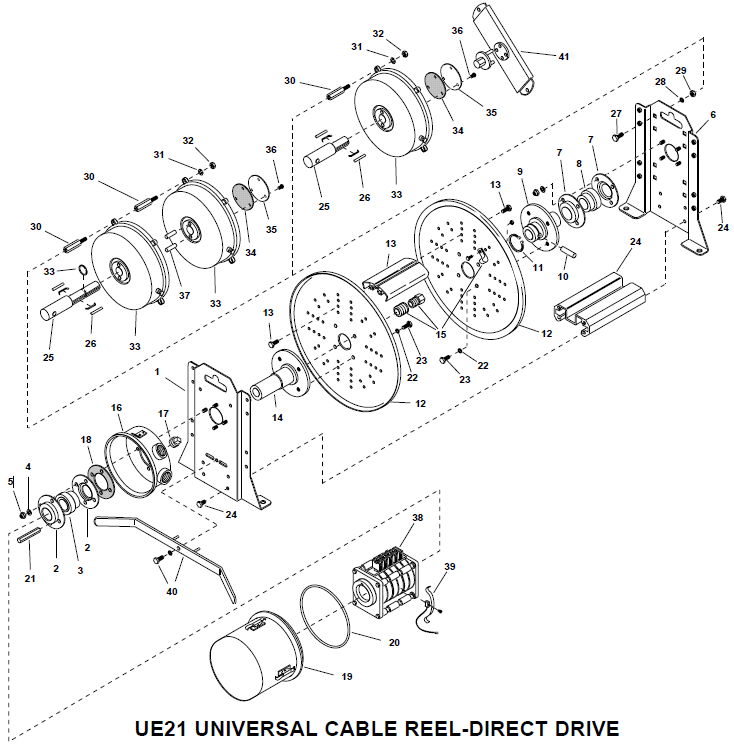

Gleason UE-21 Universal Cable Direct Drive Reels Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 1 GRD-042016 Gleason FRAME,SWIV,U21,SAFETY ORANGE - 0 $256.45
2 2 GRD-012140 Gleason HOUSING FOR 2" BORE BEARING - 0 $28.60
3 1 GRD-103837 Gleason BEARING-BALL 2.00 ID [NSN 3110-01-369-8974] - 0 $92.55
4 9 GRD-038424 Gleason M8 FLAT WASHER - 0 $0.31
5 8 GRD-028268 N/A - 0 N/A N/A N/A
6 1 GRD-042006 Gleason FRAME,DRIVE,U21,SAFETY ORANGE - 0 $237.55
7 2 GRD-119114 N/A - 0 N/A N/A N/A
8 1 GRD-103823 N/A - 0 N/A N/A N/A
9 1 GRD-042030 N/A - 0 N/A N/A N/A
10 1 GRD-012137 Gleason STUB SHAFT DRIVE PIN [NSN 5315-01-341-5375] - 0 $3.10
11 1 GRD-118322 N/A - 0 N/A N/A N/A
12 2 GRD-042026 Gleason SPOOL DISC,U21,SAFETY ORANGE - 0 $114.80
13 1
GRD-04271001 N/A - 0 N/A N/A N/A
GRD-04271002 N/A - 0 N/A N/A N/A
GRD-04271003 N/A - 0 N/A N/A N/A
GRD-04271004 N/A - 0 N/A N/A N/A
GRD-04271005 N/A - 0 N/A N/A N/A
GRD-04271006 N/A - 0 N/A N/A N/A
GRD-04271007 N/A - 0 N/A N/A N/A
GRD-04271008 N/A - 0 N/A N/A N/A
GRD-04271009 N/A - 0 N/A N/A N/A
GRD-04271010 N/A - 0 N/A N/A N/A
GRD-04271011 N/A - 0 N/A N/A N/A
GRD-04271012 N/A - 0 N/A N/A N/A
GRD-04271013 N/A - 0 N/A N/A N/A
GRD-04271014 N/A - 0 N/A N/A N/A
GRD-04271015 N/A - 0 N/A N/A N/A
14 1 GRD-042068 N/A - 0 N/A N/A N/A
15 1 Consult Factory Cable Clamp/Connector Kit - 0 N/A N/A N/A
16 1 GRD-040784 N/A - 0 N/A N/A N/A
17 1 GRD-101652 Gleason PLUG SQ HD 3/4-14 C-FE/STL GAL - 0 $31.70
18 1 GRD-118220 N/A - 0 N/A N/A N/A
19 1
GRD-012409 Gleason Cable Reel Part Slip Ring Cover Kit Extends 8 Inches to Cover the Slip Ring Part GRD-012409 aka GR012409 Ships in 5 Days (10LBS) H 6" L 12" W 6" Box - 0 $473.00
GRD-012410 Gleason Cable Reel Part Slip Ring Cover Kit Part GRD-012410 Extends 10.5 Inches to Cover the Slip Ring aka GR012410 (10LBS) H 6" L 12" W 6" Box 3/17 [Amazon] 0 $483.03
GRD-012411 Gleason Cable Reel Part Slip Ring Cover Kit Extends 13 Inches to Cover the Slip Ring Part GRD-012411 aka GR012411 Ships in 5 Days (12LBS) H 6" L 14" W 6" Box - 0 $592.85
GRD-012412 Gleason Cable Reel Part Slip Ring Cover Kit Extends 15.5 Inches to Cover the Slip Ring Part GRD-012412 aka GR012412 Ships in 5 Days (12LBS) H 6" L 17" W 6" Box - 0 $610.30
GRD-012413 Gleason Cable Reel Part Slip Ring Cover Kit Extends 20.5 Inches to Cover the Slip Ring Part GRD-012413 aka GR012413 Ships in 5 Days (12LBS) H 6" L 22" W 6" Box - 0 $695.35
GRD-012414 Gleason Cable Reel Part Slip Ring Cover Kit Extends 28.5 Inches to Cover the Slip Ring Part GRD-012414 aka GR012414 Ships in 5 Days (12LBS) H 6" L 30" W 6" Box - 0 $955.50
20 1 GRD-012458 Gleason Cable Reel Part Slip Ring Cover Seal Part GRD-012458 aka GR012458 Ships in 5 Days (1LB) H 4" L 5" W 4" Box - 3 $48.90
21 1 GRD-042067 N/A - 0 N/A N/A N/A
22 4 GRD-028138 N/A - 0 N/A N/A N/A
23 4 GRD-028131 N/A - 0 N/A N/A N/A
24 1
GRD-04272201 N/A - 0 N/A N/A N/A
GRD-04272202 N/A - 0 N/A N/A N/A
GRD-04272203 N/A - 0 N/A N/A N/A
GRD-04272204 N/A - 0 N/A N/A N/A
GRD-04272205 N/A - 0 N/A N/A N/A
25 1
GRD-042152 Gleason SHAFT,SPRING,1002,DIR,STD - 0 $465.60
GRD-042153 Gleason SHAFT,SPRING,1001,DIR,STD - 0 $395.60
GRD-042156 N/A - 0 N/A N/A N/A
GRD-042157 Gleason SHAFT,SPRING,621/801,DIR,STD - 0 $386.20
GRD-042554 Gleason SHAFT,STUB,351,DIR,STD,UREEL - 0 $358.90
GRD-042160 Gleason SHAFT,SPRING,1002,DIR,REV - 0 $46.70
GRD-042161 Gleason SHAFT,SPRING,1001,DIR,REV - 0 $395.60
GRD-042164 Gleason SHAFT,SPRING,622/802,DIR,REV - 0 $449.20
GRD-042165 Gleason SHAFT,SPRING,621/801,DIR,REV - 0 $386.20
GRD-042566 Gleason SHAFT,STUB,351,DIR,REV,UREEL - 0 $358.90
26 A/R
GRD-012425 Gleason Hubbell Cable Reel Part Pawl Kit For 35 & 60 Series Main Springs Includes Pawl Pin, Pawl Leaf Spring, Pawl Clip & a Snap Ring Item 12, 1 per reel Part GRD-012425 aka GR012425 Ships in 3 Days (1LB) - 0 $52.70
GRD-012426 Gleason Hubbell Cable Reel Part Pawl Kit For 62, 75 or 80 Series Main Springs Includes Pawl Pin, Pawl Leaf Spring, Pawl Clip & a Snap Ring Item 12, 1 per reel Part GRD-012426 aka GR012426 [NSN 3040-01-223-0631] Ships in 3 Days (1LB) - 2 $54.80
GRD-012427 Gleason Pawl Kit for a 100 Series Spring [NSN 3040-01-316-6511] - 0 $55.65
27 4 GRD-031484 N/A - 0 N/A N/A N/A
28 4 GRD-025942 N/A - 0 N/A N/A N/A
29 4 GRD-025941 N/A - 0 N/A N/A N/A
30 A/R
GRD-042555 Gleason STAND-OFF,#35SPRING,UREEL - 0 $13.25
GRD-042183 N/A - 0 N/A N/A N/A
GRD-042182 Gleason STAND-OFF,SPRING,100 - 0 $17.45
31 4 GRD-029159 N/A - 0 N/A N/A N/A
32 4 GRD-028502 Gleason LOCKNUT-NYLON COLLAR M12X1.75 - 0 $2.10
33 A/R
GRD-042727 Gleason SPRING MOTOR KIT, UREEL, 35, STD. - 0 $729.75
GRD-042725 Gleason SPRING MOTOR KIT,UREEL,62,STD - 0 $1,096.20
GRD-042726 Gleason SPRING MOTOR KIT, UREEL, 75, STD. - 0 $1,164.90
GRD-042724 Gleason SPRING MOTOR KIT, UREEL, 80, STD. - 0 $1,420.65
GRD-042723 Gleason SPRING MOTOR KIT,UREEL,100,STD - 0 $1,745.10
GRD-042732 N/A - 0 N/A N/A N/A
GRD-042730 N/A - 0 N/A N/A N/A
GRD-042731 Gleason SPRING MOTOR KIT,UREEL,75,REV - 0 $1,164.90
GRD-042729 Gleason SPRING MOTOR KIT,UREEL,80,REV - 0 $1,420.65
GRD-042728 N/A - 0 N/A N/A N/A
34 1 GRD-G51–23 N/A - 0 N/A N/A N/A
35 1 GRD-G27–42 N/A - 0 N/A N/A N/A
36 3 GRD-101220 Gleason RD HD MS SLTD #8-32 X .25 LNG [NSN 5305-01-341-3544] - 0 $4.40
37 1
GRD-021762 Gleason Hubbell Hub Lock Pin Kit Part GR021762 For 100 Series Main Springs 2 pieces aka 021762 Dated 1/18 Ships in 3 days, WI 53050 (1LB) H 4" L 5" W 4" Box - 0 $11.80
GRD-021761 Gleason Hubbell Hub Lock Pin Kit Part GR021761 For 80 Series Main Springs Qty 2 Ships in 3 days, WI 53050 Dated 1/18 - 0 $6.25
38 1
GRD-012285 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 2 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 23 (8LBS) H 5.00" L 10.00" W 5.00" [Amazon] 1 $1,086.05
GRD-012286 Gleason Slip Ring Assembly Part GR012286 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 3 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 33 Dated 1/18 (9LBS) H 5" L 10" W 5" Box 1 $1,245.85
GRD-012287 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 43 Part GRD-012287 aka GR012287 [Amazon] [NSN 5977-01-311-2203] (10LBS) H 5" L 10" W 5" Box - 1 $1,224.45
GRD-012288 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 6 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 63 Part GRD-012288 aka GR012288 [Amazon] [NSN 5977-01-186-6639] (10LBS) H 5" L 12" W 5" Box - 0 $1,421.75
GRD-012289 Gleason Slip Ring Assembly 83 Part GRD-GR012289 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 8 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 83 Part GRD-012289 aka GR012289 [Amazon] [NSN 5977-01-265-5103] (10LBS) H 5" L 12" W 5" Box 0 $2,100.19
GRD-012290 Gleason Slip Ring Assembly Part GR012290 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 10 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 103 aka 012290 [NSN 5977-01-252-6406] Dated 1/18 (12LBS) H 5" L 14" W 5" Box - 0 $1,993.20
GRD-012291 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 12 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 123 Part GRD-012291 aka GR012291 (14LBS) H 5" L 16" W 5" Box - 0 $2,066.70
GRD-012292 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 14 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 143 Part GRD-012292 aka GR012292 (16LBS) H 5" L 18" W 5" Box - 0 $2,245.70
GRD-012293 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 16 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 163 Part GRD-012293 aka GR012293 (18LBS) H 5" L 20" W 5" Box - 0 $2,566.50
GRD-012294 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 20 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 203 Part GRD-012294 aka GR012294 [NSN 5977-01-362-0979] (20LBS) H 5" L 22" W 5" Box - 0 $3,336.30
GRD-012295 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 24 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 243 Part GRD-012294 aka GR012294 [NSN 5977-01-371-8300] (22LBS) H 5" L 24" W 5" Box - 0 $3,747.20
GRD-012296 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 30 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 303 Part GRD-012296 aka GR012296 [NSN 5977-01-181-3136 (24LBS) H 5" L 26" W 5" Box - 0 $4,383.00
GRD-012297 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 35 AMP Continuous Duty 36 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 363 Part GRD-012297 aka GR012297 (26LBS) H 5" L 28" W 5" Box - 0 $5,165.70
GRD-012298 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 75 AMP Continuous Duty 2 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 27 Part GRD-012298 aka GR012298 (12LBS) H 6" L 8" W 6" Box [Amazon] 1 $1,125.85
GRD-012299 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 75 AMP Continuous Duty 3 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 37 Part GRD-012299 aka GR012299 (13LBS) H 6" L 10" W 6" Box [Amazon] 1 $1,218.05
GRD-012300 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 75 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #47 Part GRD-012300 aka GR012300 [NSN 5977-01-317-4238] [Amazon] (10LBS) H 5" L 10" W 5" Box 0 $1,290.30
GRD-012376 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 75 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #47 Part GRD-012376 aka GR012376 [Amazon] [NSN 5977-01-317-4238] (10LBS) H 5" L 10" W 5" Box - 0 $1,461.30
GRD-037194 Gleason Slip Ring Assembly Part GRD-GR037194 A Completely Self Contained Assembly 125 Amps Continuous Duty 2 Conductor / Circuits 600 Volts Maximum 2 Inch Bore Diameter aka # 212, 012301 037194 [Amazon] Dated 1/18 (7LBS) H 6" L 8" W 6" Box 0 $2,105.05
GRD-012377 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 75 AMP Continuous Duty 8 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #87 Part GRD-012377 aka GR012377 [Amazon] (10LBS) H 5" L 10" W 5" Box - 0 $1,567.00
GRD-037294 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 125 AMP Continuous Duty 3 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #312 Part GRD-037294 aka GR037294 (10LBS) H 6" L 10" W 6" Box - 1 $2,185.50
GRD-037295 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 125 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #412 Part GRD-037295 aka GR037295 (10LBS) H 6" L 10" W 6" Box [Amazon] 0 $2,379.15
GRD-012304 Gleason Slip Ring Assembly Part GRD-012304 Completely Self Contained Ring Assembly 200 AMP Continuous Duty 2 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter aka GR012304 & #220 [Amazon] Dated 1/18 (10LBS) H 6" L 10" W 6" Box 0 $1,900.50
GRD-012381 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 200 AMP Continuous Duty 3 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #320 Part GRD-012381 aka GR012381 (12LBS) H 6" L 10" W 6" Box - 0 $2,119.45
GRD-012382 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 200 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #420 Part GRD-012382 aka GR012382 aka 090065 [Amazon] Dated 4/17 (14LBS) H 6" L 12" W 6" Box 0 $2,573.75
GRD-012383 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 200 AMP Continuous Duty 6 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #620 Part GRD-012383 aka GR012383 [Amazon] (16LBS) H 6" L 14" W 6" Box - 0 $3,382.20
GRD-012384 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 200 AMP Continuous Duty 8 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #820 Part GRD-012384 aka GR012384 (18LBS) H 6" L 16" W 6" Box - 0 $4,240.70
39 A/R
GRD-012440 Gleason Brush Kit Part GR012440 Includes: 4, Brushes 4, Brush Fingers / Springs & Instructions For a 3 or 4 conductors 35 AMP Slip Ring [NSN 5977-01-182-7784] Dated 1/18 Ships in 5 days (2LBS) H 4" L 8" W 4" Box - 0 $280.40
GRD-012441 Gleason Brush Kit Part GRD-012441 For a 75 Amp Slip Ring Assembly Includes: 4 Brushes 4, Spring Fingers & Instructions aka GR012441 [NSN 5977-01-317-4284] [Amazon] (2LBS) H 4" L 8" W 4" Box" 7 $531.05
GRD-012443 Gleason Brush Kit Part GRD-012443 For a 200 Amp Slip Ring Assembly Includes: 4 Brushes / 2 Brushes per Ring Spring Fingers & Instructions Enough brushes & spring fingers for a 2 conductor slip ring assembly aka GR012443 Dated 4/17 Ships in 5 days OS (2LBS) H 4" L 8" W 4" Box - 0 $568.75
40 1
GRD-042733 Gleason SPANNER WRENCH KIT,UREEL,35-80 - 0 $87.30
GRD-042734 Gleason SPANNER WRENCH KIT,UREEL,100 - 0 $88.45
41 1
GRD-042735 N/A - 0 N/A N/A N/A
GRD-042736 Gleason RATCHET WRENCH KIT,UREEL,100 - 0 $448.00
Gleason "UE-21" Parts List (PDF)
