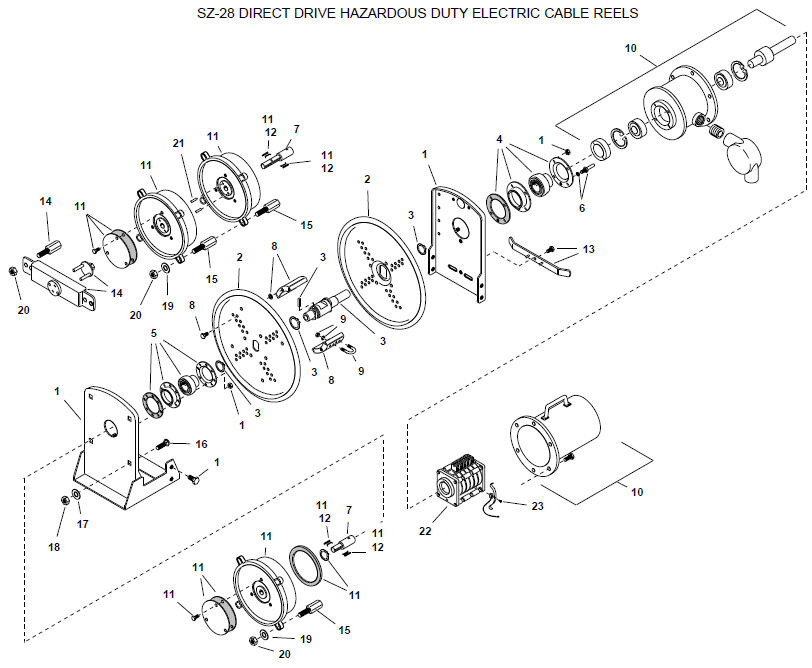

Gleason SZ-28 Direct Drive Hazardous Duty Electric Cable Reels Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 1 GRD-GR01239501 N/A - 0 N/A N/A N/A
2 1 GRD-GR012408 Gleason SPL DISCS S28 (aka GR012408) Ships in 5 days - 0 $1,431.50
3 1 GRD-GR01239801 N/A - 0 N/A N/A N/A
4 1 GRD-GR012402 Gleason Hubbell Bearing Kit
Part 012402
aka GR012402
Ships in 5 Days, WI 53050
Dated 03-02-2021
- 0 $170.10
5 1 GRD-GR012401 Gleason Hubbell Bearing Kit SPL
Part 012401
aka GR012401
1.75 Inch Bore
Ships in 5 Days, WI 53050
Dated 01-2021
- 0 $397.70
6 1 GRD-GR012456 Gleason SPL DRIVE STUD KIT (aka GR012456) Ships in 5 days - 1 $76.85
7 1
GRD-GR012208 Gleason SHAFT,STUB,DIRECT,351,601,STD (aka GR012208) Ships in 5 days - 0 $482.55
GRD-GR01220801 Gleason SHAFT,STUB,DIRECT,351,601,REV (aka GR01220801) Ships in 5 days - 0 $482.55
GRD-GR012209 Gleason Hubbell Stub Shaft
Part 012209
aka GR012209
Stub Shaft
For Direct Drive, Standard Rotation Cable Reels
With Series 621,751 & Springs
NSN 3040-01-223-7342 Gov #
Ships in 5 Days, WI 53050
Dated 01-2021
- 0 $539.90
GRD-GR01220901 Gleason Hubbell Stub Shaft
Part 01220901
aka GR01220901
Stub Shaft
For Direct Drive, Standard Rotation Cable Reels
With Series 621,751 & Springs
NSN 3040-01-223-7342 Gov #
Ships in 5 Days, WI 53050
Dated 01-2021
- 0 $539.90
GRD-GR012210 Gleason SHAFT,STUB,DIRECT,622,802,STD (aka GR012210) Ships in 5 days - 0 $603.65
GRD-GR01221001 Gleason SHAFT,STUB,DIRECT,622,802,REV (aka GR01221001) Ships in 10 days - 0 $603.65
GRD-GR012211 Gleason SHAFT,STUB,DIRECT,623,803,STD (aka GR012211) Ships in 10 days - 0 $705.75
GRD-GR01221101 Gleason SHAFT,STUB,DIRECT,623,803,REV (aka GR01221101) Ships in 5 days - 0 $705.75
GRD-GR012212 Gleason SHAFT,STUB,DIRECT,624,STD (aka GR012212) Ships in 5 days - 0 $795.65
GRD-GR01221201 Gleason SHAFT,STUB,DIRECT,624,REV (aka GR01221201) Ships in 5 days - 0 $795.65
GRD-GR012213 Gleason SHAFT,STUB,DIRECT,1001,STD (aka GR012213) Ships in 5 days - 0 $532.15
GRD-GR01221301 Gleason SHAFT,STUB,DIRECT,1001,REV (aka GR01221301) Ships in 5 days - 0 $511.30
GRD-GR012214 Gleason SHAFT,STUB,DIRECT,1002,STD (aka GR012214) Ships in 5 days - 0 $625.65
GRD-GR01221401 Gleason SHAFT,STUB,DIRECT,1002,REV (aka GR01221401) Ships in 5 days - 1 $625.65
GRD-GR012371 Gleason SHAFT,STUB,DIRECT,1003,STD (aka GR012371) Ships in 5 days - 0 $568.05
GRD-GR01237101 Gleason SHAFT,STUB,DIRECT,1003,REV (aka GR01237101) Ships in 5 days - 0 $735.60
GRD-GR014619 Gleason SHAFT,STUB,DIRECT,1004,STD (aka GR014619) Ships in 5 days - 0 $808.10
GRD-GR01461901 Gleason SHAFT,STUB,DIRECT,1004,REV (aka GR01461901) Ships in 5 days - 0 $808.10
8 1
GRD-GR012418 Gleason SPL WRAPPER KIT 7.0W X SM.DIA (aka GR012418) Ships in 5 days - 0 $335.85
GRD-GR012419 Gleason SPL WRAPPER KIT 7.0W X LG.DIA (aka GR012419) Ships in 5 days - 0 $348.25
9 1
GRD-GR012444 Gleason Hubbell Clamp Kit
Part GR012444
Cable Clamp Kit
Item 9, 1 per reel
U Bolt & Hardware
For Cable Diameters 0.38 to 0.74 Inches
aka GR012444
[NSN 5340-01-342-1000]
Ships in 5 Days
Dated 1/18
(1LB) H 4" L 5" W 4" Box
- 0 $11.90
GRD-GR012445 Gleason SPL CABLE CLAMP KIT .75-1.11 (aka GR012445) Ships in 5 days - 0 $14.75
GRD-GR012446 Gleason SPL CABLE CLAMP KIT 1.25-1.50 (aka GR012446) Ships in 5 days - 0 $15.45
10 1
GRD-GR03303901 N/A - 0 N/A N/A N/A
GRD-GR03303902 N/A - 0 N/A N/A N/A
GRD-GR03303903 N/A - 0 N/A N/A N/A
GRD-GR03303904 N/A - 0 N/A N/A N/A
GRD-GR03303905 N/A - 0 N/A N/A N/A
GRD-GR03303906 N/A - 0 N/A N/A N/A
11 A/R
GRD-GR017041 Gleason Hubbell Spring
Part 017041
aka GR017041
Main Spring Kit
35 Series, Standard Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
NSN 5360-01-423-7121 Gov #
Ships in 5 Days, WI
Dated 01-2020
(30LBS) H 4" L 10" W 10" Box
- 3 $605.15
GRD-GR017042 Gleason Hubbell Main Spring Kit
Part GR017042
aka GR017042
35 Series Spring
For Reveres Rotation Cable Reel R
Includes:
Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
Dated 1-19
(20LBS) H 4" L 10" W 10" Box
- 0 $605.15
GRD-GR017043 Gleason SPARE SPRING KIT,60S (aka GR017043) Ships in 10 days - 2 $652.45
GRD-GR017044 Gleason SPARE SPRING KIT,60R (aka GR017044) Ships in 10 days - 0 $652.45
GRD-GR017045 Gleason Hubbell Main Spring Kit
Part 017045
aka GR017045
Main Spring Kit
62 Series for a Standard Rotation Cable Reel
Includes Containerized Safety Spring Assembly
Snap Ring
2, Pawls
2, Pawl Leaf Springs
Hub Cover & Cover Gasket
Ships in 5 Days, WI 53050
Dated 01-2021
(50LBS) H 4" L 10" W 10" Box
- 2 $917.90
GRD-GR017046 Gleason SPARE SPRING KIT,62R (aka GR017046) Ships in 10 days - 0 $917.90
GRD-GR017047 Gleason Hubbell Main Spring Kit
Part 017047
aka GR017041
75 Series Main Spring
For a Standard Rotation able Reel
Includes:
Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
Ships in 5 Days, WI 53050
Dated 01-2021
(50LBS) H 4" L 10" W 10" Box
- 6 $965.90
GRD-GR017048 Gleason Hubbell Main Spring Kit
Part GR017048
aka GR017048
75 Series, Reverse Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
[NSN 5360-01-224-2307]
Dated 1-19
(50LBS) H 4" L 10" W 10" Box
- 0 $965.90
GRD-GR017049 Gleason Hubbell Main Spring Kit
Part 017049
aka GR017049
80 Series Main Spring
For a "Standard Rotation" Cable Reel
Containerized Safety Spring Assembly
Includes:
Snap Ring
2 Pawls
2 Pawl Leaf Springs
Hub Cover & Cover Gasket
NSN 5360-01-148-5893
Ships in 5 Days, WI 53050
Dated 01-2021
(48LBS) H 4" L 10" W 10" Box
- 0 $1,060.20
GRD-GR017050 Gleason Spring. Main Spring Kit
Part GR017050
For a Reel with an 80 Series
Main Spring Designation
And the Reverse Rotation option
Includes Containerized Safety Spring Assembly
Snap Ring, 2 Pawls, 2 Pawl / Leaf Springs, Hub Cover & Cover Gasket
aka GR017050
[NSN 6105-01-189-3576] Dated 4/17
(50LBS) H 4" L 10" W 10" Box [1/2018]
- 0 $1,060.20
GRD-GR017051 Gleason Hubbell Main Spring Kit
Part 017051
aka GR017051
100 Series Main Spring
For Standard Rotation Reels
Includes:
Containerized Safety Spring
Snap Ring
2 Pawls
2 Pawl Leaf Springs
Hub Cover & Cover Gasket
NSN 5360-01-297-1022 Gov #
Ships in 5 Days, WI 53050
Dated 01-2021
(68LBS) H 4" L 13" W 13" Box
- 34 $1,461.15
GRD-GR017052 Gleason Hubbell Main Spring
Part 017052
aka GR017052
Main Spring Kit
100 Series
Reverse Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl - Leaf Springs
Hub Cover & Cover Gasket
Ships in 5 Days, WI 53050
Dated 01-2021
(68LBS) H 4" L 13" W 13" Box
- 0 $1,461.15
12 A/R
GRD-GR012425 Gleason Hubbell Pawl Kit
Part 012425
aka GR012425
Pawl Kit
For 35 & 60 Series Main Spring
Ships in 3 Days, WI 53050
Dated 01-2-20
- 0 $63.75
GRD-GR012426 Gleason Hubbell Pawl Kit for Main Springs
Part GR012426
aka GR012426
For 62, 75 or 80 Series Main Springs
Includes Pawl Pin, Pawl Leaf Spring, Pawl Clip & a Snap Ring
Item 12, 1 per reel
[NSN 3040-01-223-0631]
[Ships in 5 to 7 Days]
[Updated 1/19]
- 2 $66.25
GRD-GR012427 Gleason SPL PAWL KIT 100 SPRING (aka GR012427) Ships in 5 days - 0 $67.30
13 1
GRD-GR017190 Gleason Hubbell Tension Wrench
Part 017190
aka GR017190
Main Spring Tension Wrench
For 35 - 60 - 62 - & 75 Series Main Springs
Ships in 3 Days, WI 53050
Dated 1-2020
- 1 $105.60
GRD-GR017191 Gleason SPL TENSION WRENCH 100 SPRING (aka GR017191) Ships in 5 days - 0 $106.95
14 1
GRD-GR032805 Gleason Hubbell Pre-Tension Wrench Kit
Part GR032805
aka GR032805
Main Spring Pretension Wrench Kit
For 75/80 Series Main Springs
[Ships in 5 Days]
[Updated 1-19]
- 1 $246.70
GRD-GR032804 Gleason PRE-TENSION WRENCH KIT-100 (aka GR032804) Ships in 10 days - 4 $384.30
15 A/R
GRD-GR017054 Gleason STUD BOLT EXTENSION KIT-3.00"L (aka GR017054) Ships in 5 days - 2 $45.20
GRD-GR017055 Gleason STUD BOLT EXTENSION KIT-4.00"L (aka GR017055) Ships in 3 days - 4 $48.20
16 A/R GRD-GR016182 N/A - 0 N/A N/A N/A
17 A/R GRD-GR021291 N/A - 0 N/A N/A N/A
18 A/R GRD-GR100959 N/A - 0 N/A N/A N/A
19 A/R GRD-GR101211 N/A - 0 N/A N/A N/A
20 A/R GRD-GRP06-03 N/A - 0 N/A N/A N/A
21 A/R
GRD-GR021762 Gleason HUB LOCK PIN KIT-100 SPRINGS (aka GR021762) Ships in 3 days - 0 $13.20
GRD-GR021761 Gleason HUB LOCK PIN KIT-80 SPRINGS (aka GR021761) Ships in 3 days - 0 $7.00
22 1
GRD-GR012285 Gleason Slip Ring Assembly
Part aka GR012285
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
2 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 23
Dated 1/18
(8LBS) H 5" L 10" W 5" Box
- 1 $1,288.60
GRD-GR012286 Gleason Slip Ring Assembly
Part aka GR012286
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
3 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 33
Dated 1/18
(9LBS) H 5" L 10" W 5" Box
- 1 $1,366.65
GRD-GR012287 Gleason Hubbell Slip Ring Assembly
Part 012287
aka GR012287
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 43
NSN 5977-01-311-2203 Gov
Ships from Stock to 10 Days
Dated 01-2021
(10LBS) H 5" L 10" W 5" Box
0 $1,496.35
GRD-GR012288 Gleason Hubbell Slip Ring Assembly
Part 012288
aka GR012288
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
6 Independent Circuits - Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 63
NSN 5977-01-186-6639 Gov#
Dated 01-2021
(10LBS) H 5" L 12" W 5" Box
- 0 $1,737.45
GRD-GR012289 Gleason Hubbell Slip Ring Assembly 83
Part 012289
aka GR012289
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
8 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 83
NSN 5977-01-265-5103 Gov
Ships in 10 Days, WI 53050
Dated 01-2021
(9LBS) H 5" L 12" W 5" Box
- 0 $1,979.00
GRD-GR012290 Gleason Hubbell Slip Ring Assembly
Part 012290
aka GR012290
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
10 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 103
aka GR012290
[NSN 5977-01-252-6406]
Dated 1-19
(12LBS) H 5" L 14" W 5" Box
- 0 $2,186.45
GRD-GR012291 Gleason Hubbell Slip Ring Assembly
Part 012291
aka GR012291
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
12 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 123
Ship sin 10 Days, WI 53050
Dated 1-2020
- 0 $2,452.05
GRD-GR012292 Gleason Hubbell Slip Ring Assembly
Part 012292
aka GR012292
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
14 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 143
Ships in 5 Days, WI 53050
Dated 01-2021
(13LBS) H 5" L 18" W 5" Box
- 0 $2,744.35
GRD-GR012293 Gleason Hubbell Slip Ring Assembly
Part 012293
aka GR012293
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
16 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 163
Ships in 10 Days, WI 53050
Dated 1-19
(18LBS) H 5" L 20" W 5" Box
- 0 $3,045.05
GRD-GR012294 Gleason Slip Ring Assembly
Part GR012294
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
20 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 203
aka GR012294
[NSN 5977-01-362-0979]
Dated 1/18
(20LBS) H 5" L 22" W 5" Box
- 0 $3,958.35
GRD-GR012295 Gleason Hubbell Slip Ring Assembly
Part 012295
aka GR012295
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
24 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 243
[NSN 5977-01-371-8300]
Ships in 10 Days, WI 53050
Dated 1-19
(22LBS) H 5" L 24" W 5" Box
- 0 $4,445.90
GRD-GR012296 Gleason Hubbell Slip Ring Assembly
Part 012296
aka GR012296
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
30 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 303
[NSN 5977-01-181-3136]
Dated 1-19
(24LBS) H 5" L 26" W 5" Box
- 0 $5,200.20
GRD-GR012297 N/A - 0 N/A N/A N/A
GRD-GR012298 Gleason Hubbell Slip Ring Assembly
Part RP075-02
aka GR012298
ROTA-POWER Self Contained Slip Ring
75 Amp Continuous Duty
Must be derated for multiple conductors
2 Conductor / Circuits
600 Volt Maximum
8 AWG Lead Wires for connection
2 Inch ID Drive Collar with double screws
6.38 Inch, Assembled Length Dim "A"
Part # 27
Normally a Stock Item @ BPI
Ships from Stock to 10 Days
Dated 1-19
(10LBS) H 7" L 10" W 8" Box
- 1 $1,335.75
GRD-GR012299 Gleason Hubbell Slip Ring Assembly
Part 012299
aka GR012299
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
3 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 37
Dated 1-19
(13LBS) H 6" L 10" W 6" Box
2 $1,445.20
GRD-GR012300 Gleason Hubbell Slip Ring Assembly
Part 012300
aka GR012300
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
Normally a Stock Item @ BPI
Ships from Stock to 10 Days
Dated 01-2021
(12LBS) H 6" L 10" W 6" Box
- 0 $1,530.90
GRD-GR012376 Gleason Hubbell Slip Ring Assembly
Part 012376
aka GR012376
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#47
NSN 5977-01-317-4238 US GOV #
Dated 01-2020
(10LBS) H 5" L 10" W 5" Box
- 0 $1,733.80
GRD-GR012377 Gleason Hubbell Slip Ring Assembly
Part 012377
aka GR012377
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
8 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#87
Dated 1-19
(10LBS) H 5" L 10" W 5" Box
- 0 $1,859.15
GRD-GR037194 Gleason Hubbell Slip Ring Assembly
Part 037194
aka GR037194
A Completely Self Contained Assembly
2 Conductor - Circuits
125 Amps Continuous Duty
600 Volts Maximum
2 Inch Bore Diameter
# 212
Normally a Stock Item @ BPI
Ships from Stock to 10 Days
(7LBS) H 6" L 8" W 6" Box
0 $2,448.15
GRD-GR037294 Gleason COLLECTOR ASSEMBLY 312 (aka GR037294) Ships in 10 days - 1 $2,643.30
GRD-GR037295 Gleason COLLECTOR ASSEMBLY 412 (aka GR037295) Ships in 10 days - 0 $2,877.55
GRD-GR012304 Gleason Hubbell Slip Ring Assembly
Part 012304
aka GR012304
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
2 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
aka #220
Dated 01-2021
(8LBS) H 6" L 10" W 6" Box
- 1 $2,147.30
23 A/R
GRD-GR012440 Gleason Hubbell Brush Kit
Part 012440
aka GR012440
Includes:
4, Brushes
4, Brush Fingers - Springs & Instructions
For a 3 or 4 Conductors 35 AMP Slip Ring
NSN 5977-01-182-7784 US Gov #
Dated 01-2021
Ships in 5 Days, WI 53050
(2LBS) H 4" L 8" W 4" Box
- 0 $326.15
GRD-GR012441 Gleason Hubbell Brush Kit
Part 012441
aka GR012441
For a 75 Amp Slip Ring Assembly
Includes:
4 Brushes
4, Spring Fingers & Instructions
NSN 5977-01-317-4284 Gov #
Ships from Stock to 5 Days
Dated 1-2020
(2LBS) H 4" L 8" W 4" Box"
- 1 $619.10
GRD-GR012443 Gleason Hubbell Brush Kit
Part 012443
aka GR012443
For a 200 Amp Slip Ring Assembly
Includes:
4 Brushes / 2 Brushes per Ring
Spring Fingers & Instructions
Enough brushes & spring fingers for a 2 conductor slip ring assembly
Ships from Stock to 5 Days, WI 53050
Dated 1-2020
(2LBS) H 4" L 8" W 4" Box
- 0 $663.00
  1 GRD-GR02180901 N/A - 0 N/A N/A N/A
Gleason "SZ-28" Parts List (PDF)
Gleason Reels Replacement Parts

    Gleason Spring Operated Electric Cable-Master Reels Replacement Parts
  • C14, C16, C19 Reels Manufactured Before 1-1-2010 • C14, C16, C19 Reels Manufactured After 1-1-2010

    Gleason Hose-Master Reels Replacement Parts
  • HM14, HM19 Manufactured Before 1-1-2010 • HM14-4 • HM14-6 • HM14-8 • HM16-6 • HM16-8 • HM19-4 • HM19-6 • HM19-8

    Gleason Series J Hose Reels Replacement Parts
  • GL15-23 Roller Guide • GL15-24 Roller Guide • GL20-07 Roller Guide • GL20-08 Roller Guide • J35A Reel • J60A Reel • J62A-KM Reel
  • J80A Reel • J100A Reel

    Gleason Series K Hose Reels Replacement Parts
  • K-18 • K-21 • K-24 • K-28 • K-32

    Gleason Mill Duty Electric Cable Reels Replacement Parts
  • MMD21 Direct • MMD21 Gear, Manufactured before July 1, 1999 • MMD21 Gear, Manufactured after July 1, 1999 • MMD24 Direct
  • MMD24 Gear, Manufactured before July 1, 1999 • MMD24 Gear, Manufactured after July 1, 1999 • MMD28 Direct
  • MMD28 Gear, Manufactured before July 1, 1999 • MMD28 Gear, Manufactured after July 1, 1999 • MMD32 Direct • MMD32 Gear

    Gleason Pendant Station Reels Replacement Parts
  • P14 • P16 • P18 • P21 • P24 • P28

    Gleason Spring Operated Hose Reels Replacement Parts
  • R-35 • R-45

    Gleason S-Reels Replacement Parts
  • S-14 • S-16 • S-18 • S-21 Direct • S-21 Gear • S-24 Direct • S-24 Gear • S-28 Direct • S-28 Gear • S-32 Direct • S-32 Gear

    Gleason Series SHO Special Magnet Reels Replacement Parts
  • SHO-101A • SHO-Cable • SHO-Hose • SHO-Twin

    Gleason Gear Drive Electric Cable Reels Replacement Parts
  • SM-21 • SM-24 • SM-28 • SM-32

    Gleason Direct Drive Hazardous Duty Electric Cable Reels Replacement Parts
  • SZ-16 • SZ-18 • SZ-21 • SZ-24 • SZ-28 • SZ-32

    Gleason TMR Series Electric Cable Reels Replacement Parts
  • TMR

    Gleason Universal Cable/Hose Reels Replacement Parts
  • UE-18 • UE-21 • UE-24 • UE-28 • UE-32 • UH-18 • UH-21 • UH-24-Chain • UH-24-Direct • UH-28-Chain • UH-28-Direct
  • UH-32-Chain • UH-32-Direct • UH-60 / UH-62

    Gleason Direct Drive Welding Reels Replacement Parts
  • W14 / W19

    Gleason WB Series Continuous Contact Reels Replacement Parts
  • WB60-25 • WB75-25 • WB100-60 • WB100-100-60

Secure Online Order



Secure Online Order

part numbers available for
online order

Shopping Cart
Empty
Checkout is secure

All products are covered by a $1,000,000 liability insurance:
Click to view the Certificate

Products Available From Stock
Free shipping via UPS Ground (continental US only, motor freight excluded)

Web Site Features

Part Number Lookup

Enter at least three characters of a Gleason part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


Search scope:
This web site only

Formal PDF Quotation

To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

Your shopping cart is kept intact and you can still check out at a later time.
Engineered Products


Gleason
Engineered Products


  • Cable Reels:
    • Cable-Master Reels
    • Series "S" & "WB" Reels
    • Series "MMD" & "SM" Reels
    • Series "SHO" & "TMR" Reels
    • Welding Cable Reels
    • Low Profile Level Wind Reels
    • Vari-Matic Drive Reels
    • Motor-Driven Pendant Station
      Reels
    • Emergency Vehicle Reels
    • Series "SZ" Reels
    • Main Spring Assemblies
    • Cable Reel Roller Guides
    • Heavy Duty Reeling Systems
  • Festoon Systems:
    • Series Track Master
    • Series Beam Master
    • Series I-132
    • Series PDQ 300 I-Beam
    • Series PDQ 450 & 700 I-Beam
    • Series RTG 450 & 700 I-Beam
    • Series T-50 Curved Rail
  • Hose Reels:
    • Hose Reels
  • PowerTrak Drag Chains:
    • PowerFlex
    • PowerTube
    • Type "GRP" Molded Nylon
    • Type "E" & "EF" Steel Link
    • Type "G" Nylon & Aluminum
  • Conductor Bar, Electrification:
    • Conductor Bar, Electrification
  • Slip Ring Assemblies:
    • Compact & Rota-Power
    • Compact 30 Amp & 55 Amp
    • Compact 30 Amp (DR)
    • Rota-Power 35 Amp
    • Rota-Power 75 Amp
    • Rota-Power 125 Amp
    • Rota-Power 200 Amp
Pre-Engineered Products


Gleason
Pre-Engineered Products


  • Cable Reels:
    • "A" Cast Aluminum Reels
    • "ER" Hoist Reels
    • "G" Heavy Duty Cable Reels
  • Cord Reels:
    • Compact Cord Reels
    • Industrial Duty Cord Reels
    • Outlets, Lamps & Receptacles
  • Festoon Kits & Components:
    • Wire Rope, Nylon, Cable/Hose
    • Wire Rope, Nylon, Flat Cables
    • Wire Rope, Steel, Flat Cables
    • Optional Components
    • C-Rail C25, Components
    • C-Rail C35, Flat Cable
    • C-Rail C35, Round Cable
    • C-Rail C35, Components
    • T-Track Heavy Duty
    • Kellems Cord Grips
    • Kellems Support Grips
    • NEMA 12 Electrical Boxes
    • Cable Connectors
    • Universal Cable Grips
    • Festoon Cable
    • Adjustable Beam Trolleys
    • Festoon Pendants
  • Hose Reels:
    • "GHA" Industrial Duty Reels
    • "EZ" Pull Heavy Duty Reels
    • "HC" Heavy Duty Reels
    • "EZ9" Clean Air Reels
    • "HH" Hand Crank Reels
    • "UH" Universal Reels
  • PowerTrak Kits:
    • PowerTrak Kits
  • Limit Switches, Geared Rotary:
    • 54 Series
    • 55 Series, NEMA 4
    • 55 Series, NEMA 7
  • Static Discharge Products:
    • Cable & Accessories
    • Static Discharge Reels
  • Tool Balancer Reels:
    • Accessories
    • Tool Balancer Reels

Workplace Solutions


Hubbell
Workplace Solutions


  • Booms and Jibs
  • Mobile Carts
  • Qualtech Computer Enclosures
  • Qualtech Document Stands
  • Tool Balancers
  • Workstations
  • Complete List & Catalog
  • Hubbell WS Idea Sheets
  • WS Replacement Parts
Gleason Replacement Parts


Gleason Replacement Parts

  • PowerTrak Replacement Parts

  • Reel Replacement Parts
Entertainment Solutions


Gleason
Entertainment Solutions


From performing arts and concerts to studio and television, Gleason Reel has the right products for the right application. These events typically include a variety of learning and entertainment activities, performances, plays and general assemblies, or large-scale seminars, theatre productions and award ceremonies. These spaces must accommodate the latest audio, visual, and lighting technology while providing maximum reliability to ensure that the show goes on.


  • Entertainment Products Guide
Manuals and Information


Gleason
Manuals and Information


  • Manuals and Information


This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com
  Federal ID #: 34-1473351
  CAGE Code: 1QTP8
  DUNS# 14-748-2392
  Download: Form W-9
Supplier of Industrial Brake Parts Since 1985
