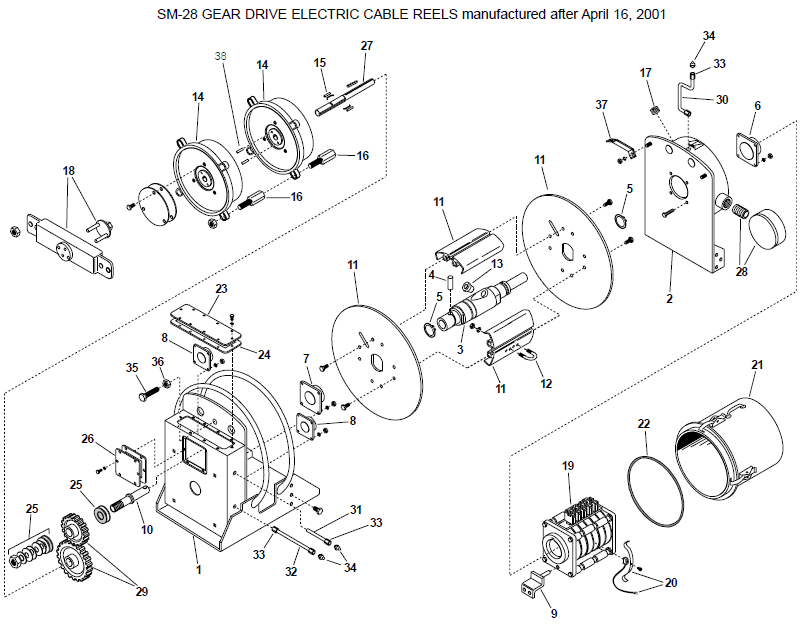

Gleason SM-28 Gear Drive Electric Cable Reels Replacement Parts, manufactured after April 16, 2001

No	Qty Req'd	Part Number	Description	Picture	Stock Qty	Price Each	Qty Ord'd	Update Cart
1	1	GRD-GR015901	N/A	-	0	N/A	N/A	N/A
2	1	GRD-GR015921	N/A	-	0	N/A	N/A	N/A
3	1	GRD-GR039358	Gleason SHAFT,MAIN,CAST,SM28 & 32 (aka GR039358) Ships in 15 days	-	0	$1,950.40
4	1	GRD-GR012137	Gleason STUB SHAFT DRIVE PIN,ZINC PLT (aka GR012137) Ships in 15 days	-	0	$5.50
5	2	GRD-GR118322	N/A	-	0	N/A	N/A	N/A
6	1	GRD-GR016516	Gleason Hubbell Bearing Kit SPL  Part 016516  aka GR016516  2.00 Inch Bore  SM2  Ships in 5 Days, WI 53050  Dated 01-2020	-	0	$1,049.05
7	1	GRD-GR016517	Gleason Hubbell Bearing Kit SPL  Part 016517  aka GR016517  1.75 Inch Bore  SM2  Ships in 5 Days, WI 53050  Dated 01-2020	-	0	$832.85
8	2	GRD-GR016518	Gleason Hubbell Bearing Kit SPL  Part 016518  aka GR016518  1.25 Inch Bore  SM2  Ships in 5 Days, WI 53050  Dated 01-2020	-	0	$643.70
9	1	GRD-GR016519	N/A	-	0	N/A	N/A	N/A
10	1	GRD-GR015944	Gleason STUB SHAFT,SM REEL (aka GR015944) Ships in 15 days	-	0	$720.30
11	1	GRD-GR04756201 N/A - 0 N/A N/A N/A GRD-GR04756202 N/A - 0 N/A N/A N/A GRD-GR04756203 N/A - 0 N/A N/A N/A GRD-GR04756204 N/A - 0 N/A N/A N/A GRD-GR04756205 N/A - 0 N/A N/A N/A GRD-GR04756206 N/A - 0 N/A N/A N/A GRD-GR04756207 N/A - 0 N/A N/A N/A GRD-GR04756208 N/A - 0 N/A N/A N/A GRD-GR04756209 N/A - 0 N/A N/A N/A GRD-GR04756210 N/A - 0 N/A N/A N/A
12	1	GRD-GR012444 Gleason Hubbell Clamp Kit  Part GR012444   Cable Clamp Kit  Item 9, 1 per reel  U Bolt & Hardware  For Cable Diameters 0.38 to 0.74 Inches  aka GR012444  [NSN 5340-01-342-1000]  Ships in 5 Days  Dated 1/18  (1LB) H 4" L 5" W 4" Box - 0 $17.45 GRD-GR012445 Gleason SPL CABLE CLAMP KIT .75-1.11 (aka GR012445) Ships in 5 days - 0 $21.60 GRD-GR012446 Gleason SPL CABLE CLAMP KIT 1.25-1.50 (aka GR012446) Ships in 5 days - 0 $22.50
13	1	GRD-GR012459 N/A - 0 N/A N/A N/A GRD-GR012460 Gleason Hubbell Cable Connector  Part 012460  aka GR012460  For Cables with a Diameter Range OF:  0.50 to 0.52 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $166.95 GRD-GR012461 Gleason Hubbell Cable Connector  Part 012461  aka GR012461  For Cables with a Diameter Range OF:  0.62 to 0.75 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 1 $173.20 GRD-GR012462 Gleason Hubbell Cable Connector  Part 012462  aka GR012462  For Cables with a Diameter Range OF:  0.75 to 0.88 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $241.70 GRD-GR012463 Gleason Hubbell Cable Connector  Part 012463  aka GR012463  For Cables with a Diameter Range OF:  0.88 to 1.00 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $254.85 GRD-GR012464 Gleason Hubbell Cable Connector  Part 012464  aka GR012464  For Cables with a Diameter Range OF:  1.00 to 1.12 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $261.15 GRD-GR012465 Gleason Hubbell Cable Connector  Part 012465  aka GR012465  For Cables with a Diameter Range OF:  1.12 to 1.25 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $270.55 GRD-GR012466 Gleason Hubbell Cable Connector  Part 012466  aka GR012466  For Cables with a Diameter Range OF:  1.25 to 1.38 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023ys - 0 $300.80 GRD-GR012467 Gleason Hubbell Cable Connector  Part 012467  aka GR012467  For Cables with a Diameter Range OF:  1.38 to 1.50 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $457.00
14	A/R	GRD-GR016520 Gleason Hubbell Spring Motor Kit  Part 016520  aka GR016520  Standard Rotation  SM2  Ships in 5 Days, WI 53050  Dated 11-2024  (40LBS) - 0 $1,787.60 GRD-GR016521 Gleason SPRING MOTOR KIT REV ROT SM2 (aka GR016521) Ships in 10 days - 0 $1,787.60
15	1	GRD-GR012427	Gleason SPL PAWL KIT 100 SPRING (aka GR012427) Ships in 5 days	-	0	$98.35
16	1	GRD-GR016522	Gleason SPL SPRING MOUNTING KIT SM2 (aka GR016522) Ships in 5 days	-	0	$303.25
17	1	GRD-GR106873	Gleason PLUG SQ HD 3/4-14NPT SST (aka GR106873) Ships in 7 days	-	0	$106.40
18	1	GRD-GR032804	Gleason Hubbell Wrench  Part 032804  aka GR032804  Pretension Wrench Kit  For a 100- Series Spring   Ships from Stock to 10 Days, WI 53050  Dated 07-2021	-	2	$561.15
19	1	GRD-GR012285 Gleason Slip Ring Assembly  Part aka GR012285  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  2 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 23  Dated 1/18  (8LBS) H 5" L 10" W 5" Box - 1 $1,690.60 GRD-GR012286 Gleason Slip Ring Assembly  Part aka GR012286  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  3 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 33  Dated 1/18  (9LBS) H 5" L 10" W 5" Box - 1 $1,792.95 GRD-GR012287 Gleason Hubbell Slip Ring Assembly  Part 012287  aka GR012287  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  4 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 43  NSN 5977-01-311-2203 Gov  Ships in 10 Days, WI 53050  Dated 04-2024  (10LBS) H 5" L 10" W 5" Box 0 $1,905.95 GRD-GR012288 Gleason Hubbell Slip Ring Assembly  Part 012288  aka GR012288  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  6 Independent Circuits - Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 63  NSN 5977-01-186-6639 Gov#  Dated 01-2021  (10LBS) H 5" L 12" W 5" Box - 0 $2,213.00 GRD-GR012289 Gleason Hubbell Slip Ring Assembly 83  Part 012289  aka GR012289  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  8 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 83  NSN 5977-01-265-5103 Gov  Ships in 10 Days, WI 53050  Dated 01-2021  (9LBS) H 5" L 12" W 5" Box - 0 $2,520.70 GRD-GR012290 Gleason Hubbell Slip Ring Assembly  Part 012290  aka GR012290  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  10 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 103  Gov # NSN 5977-01-252-6406  Ships in 15 Days, WI 53050  Dated 01-2025  (12LBS) H 5" L 14" W 5" Box - 0 $2,868.45 GRD-GR012291 Gleason Hubbell Slip Ring Assembly  Part 012291  aka GR012291  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  12 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 123  Ship sin 10 Days, WI 53050  Dated 1-2020 - 0 $3,216.95 GRD-GR012292 Gleason Hubbell Slip Ring Assembly  Part 012292  aka GR012292  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  14 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 143  Ships in 5 Days, WI 53050  Dated 01-2021  (13LBS) H 5" L 18" W 5" Box - 0 $3,495.60 GRD-GR012293 Gleason Hubbell Slip Ring Assembly  Part 012293  aka GR012293  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  16 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 163  Ships in 10 Days, WI 53050  Dated 10-2024  (18LBS) H 5" L 20" W 5" Box - 0 $276.72 GRD-GR012298 Gleason Hubbell Slip Ring Assembly  Part RP075-02  aka GR012298  ROTA-POWER Self Contained Slip Ring   75 Amp Continuous Duty  Must be derated for multiple conductors  2 Conductor / Circuits  600 Volt Maximum  8 AWG Lead Wires for connection  2 Inch ID Drive Collar with double screws  6.38 Inch, Assembled Length Dim "A"  Part # 27   Normally a Stock Item @ BPI  Ships from Stock to 10 Days   Dated 08-2023  (10LBS) H 7" L 10" W 8" Box - 0 $1,752.40 GRD-GR012299 Gleason Hubbell Slip Ring Assembly  Part 012299 # 37  aka GR012299  Self Contained Ring Assembly  75 AMP Continuous Duty  3 Independent Circuits - Conductors  600 Volts Maximum  2 Inch Bore Diameter  Dated 01-2023  (13LBS) H 6" L 10" W 6" Box 0 $1,896.00 GRD-GR012300 Gleason Hubbell Slip Ring Assembly SR  Part 012300  aka GR012300  Completely Self Contained Ring Assembly  75 AMP Continuous Duty  4 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  Normally a Stock Item @ BPI  (10LBS) H 12" L 16" W 16" Box - 0 $2,008.50 GRD-GR037194 Gleason Hubbell Slip Ring Assembly   Part 037194  aka GR037194  A Completely Self Contained Assembly  2 Conductor - Circuits  125 Amps Continuous Duty  600 Volts Maximum  2 Inch Bore Diameter  # 212  Origin USA  Export Code 8536908585  Normally a Stock Item @ BPI  Ships from Stock to 15 Days  Dated 01-2024  (7LBS) H 6" L 8" W 6" Box 0 $3,118.30 GRD-GR037294 Gleason COLLECTOR ASSEMBLY 312 (aka GR037294) Ships in 10 days - 1 $3,501.55 GRD-GR037295 Gleason Hubbell Slip Ring Assembly RP  Part 037295 #412  aka GR037295  ROTA-POWER Self Contained Slip Ring   125 Amp Continuous Duty  Must be derated for multiple conductors  4 Conductor - Circuits  600 Volt Maximum  4 AWG Lead Wires for connection  2 Inch ID Drive Collar with double set screws & a woodruff key  10.38 Inch Assemble Length Dim "A"  Origin USA  Export Code 8536908585  Ships in 15 Days, WI 53050 - 0 $3,811.85 GRD-GR013756 Gleason Hubbell Slip Ring Assembly  Part 013756  aka GR013756  200 AMP  2 Conductor  Magnet Duty Cycle  #220   Normally a Stock Item @ BPI  Dated 01-2020 - 0 $2,258.75 GRD-GR016197 Gleason Hubbell Slip Ring Assembly  Part aka GR016197  200 Amp  3 Conductor / Circuit  # 320  Magnet Duty Cycle  Ships in 15 work days, WI 53050  Dated 1/18 - 0 $3,703.20 GRD-GR013757 Gleason Hubbell Slip Ring Assembly 420  Part 013757  aka GR013757  200 AMP  4 Conductor - Circuit  Magnet Duty Cycle for High Voltage Spikes  Origin USA  Export Code 8536908585  Ships in 15 Work Days, WI 53050  Dated 08-2024 - 0 $4,613.80
20	A/R	GRD-GR012440 Gleason Hubbell Brush Kit  Part 012440  aka GR012440  For a 3 or 4 Conductors 35 AMP Slip Ring  Includes:  4, Brushes  4, Brush Fingers - Springs & Instructions  NSN 5977-01-182-7784 US Gov #  Origin USA  Export Code 8545200000  Ships in 5 Days, WI 53050  Dated 01-2024 - 0 $457.95 GRD-GR012441 Gleason Hubbell Brush Kit  Part 012441  aka GR012441  For a 75 Amp Slip Ring Assembly  Includes:  4 Brushes  4, Spring Fingers & Instructions  NSN 5977-01-317-4284 Gov #  Ships from Stock to 5 Days  Dated 08-2021  (2LBS) H 4" L 8" W 4" Box" - 0 $904.15 GRD-GR012443 Gleason Hubbell Brush Kit  Part 012443  aka GR012443  For a 200 Amp Slip Ring Assembly  Includes:  4 Brushes / 2 Brushes per Ring  Spring Fingers & Instructions  Enough brushes & spring fingers for a 2 conductor slip ring assembly  Origin USA  Export Code 8545200000  Ships from Stock to 5 Days, WI 53050  Dated 04-2025  (2LBS) H 4" L 8" W 4" Box - 0 $968.20
21	1	GRD-GR03742101 Gleason COLLECTOR COVER ASSY 9.75 SM (aka GR03742101) Ships in 15 days - 0 $2,245.30 GRD-GR03742102 Gleason COLLECTOR COVER ASSY 12.75 SM (aka GR03742102) Ships in 15 days - 0 $2,297.70 GRD-GR03742103 Gleason COLLECTOR COVER ASSY 14.75 SM (aka GR03742103) Ships in 15 days - 0 $2,352.90 GRD-GR03742104 Gleason COLLECTOR COVER ASSY 19.25 SM (aka GR03742104) Ships in 15 days - 0 $2,447.45
22	1	GRD-GR016213	Gleason Hubbell Seal  Part 016213  aka GR016213  12 Inch I.D.  0.38 Thick  For SM2 Collector  Origin USA  Export Code 4016935050  Ships in 5 Days, WI 53050  Dated 01-2023  (1LB)	-	0	$46.35
23	1	GRD-GR015936	N/A	-	0	N/A	N/A	N/A
24	1	GRD-GR015937	N/A	-	0	N/A	N/A	N/A
25	1	GRD-GR016525	Gleason GEAR DETENSIONING KIT SM REEL (aka GR016525) Ships in 5 days	-	0	$884.90
26	1	GRD-GR016527	Gleason SPL GEAR ACCESS COVER KIT SM2 (aka GR016527) Ships in 5 days	-	0	$143.05
27	1	GRD-GR015945 Gleason SHAFT,SPRING,SMII,STD,1001 (aka GR015945) Ships in 5 days - 0 $1,078.95 GRD-GR01594501 N/A - 0 N/A N/A N/A GRD-GR015946 Gleason SHAFT,SPRING,SMII,STD,1002 (aka GR015946) Ships in 10 days - 0 $1,259.10 GRD-GR01594601 N/A - 0 N/A N/A N/A GRD-GR015947 Gleason SHAFT,SPRING,SMII,STD,1003 (aka GR015947) Ships in 5 days - 0 $1,440.45 GRD-GR01594701 Gleason SHAFT,SPRING,SMII,REV,1003 (aka GR01594701) Ships in 5 days - 0 $1,440.45 GRD-GR015948 Gleason SHAFT,SPRING,SMII,STD,1004 (aka GR015948) Ships in 10 days - 0 $1,621.30 GRD-GR01594801 Gleason SHAFT,SPRING,SMII,REV,1004 (aka GR01594801) Ships in 5 days - 0 $1,621.30
28	1	GRD-GR016529	N/A	-	0	N/A	N/A	N/A
29	1	GRD-GR016202 Gleason GEAR ASSEMBLY RATIO"M" 1.50:1 (aka GR016202) Ships in 5 days - 0 $3,430.70 GRD-GR016203 Gleason GEAR ASSEMBLY RATIO"N" 1.72:1 (aka GR016203) Ships in 15 days - 0 $3,558.25 GRD-GR016204 Gleason GEAR ASSEMBLY RATIO"P" 2.00:1 (aka GR016204) Ships in 15 days - 0 $3,406.25 GRD-GR016205 Gleason GEAR ASSEMBLY RATIO"Q" 2.33:1 (aka GR016205) Ships in 15 days - 0 $3,126.85 GRD-GR016206 Gleason GEAR ASSEMBLY RATIO"R" 2.75:1 (aka GR016206) Ships in 5 days - 0 $3,352.30 GRD-GR016207 Gleason GEAR ASSEMBLY RATIO"S" 4.00:1 (aka GR016207) Ships in 15 days - 0 $3,182.55 GRD-GR016208 Gleason GEAR ASSEMBLY RATIO"T" 1.50:1 (aka GR016208) Ships in 5 days - 0 $3,508.80 GRD-GR016209 Gleason GEAR ASSEMBLY RATIO"V" 2.00:1 (aka GR016209) Ships in 5 days - 0 $3,691.40 GRD-GR016210 Gleason GEAR ASSEMBLY RATIO"W" 2.75:1 (aka GR016210) Ships in 5 days - 0 $3,613.10 GRD-GR016211 Gleason GEAR ASSEMBLY RATIO"Y" 4.00:1 (aka GR016211) Ships in 15 days - 0 $3,280.95
30	1	GRD-GR015958	N/A	-	0	N/A	N/A	N/A
31	1	GRD-GR015957	N/A	-	0	N/A	N/A	N/A
32	1	GRD-GR016234	N/A	-	0	N/A	N/A	N/A
33	5	GRD-GR015955	N/A	-	0	N/A	N/A	N/A
34	3	GRD-GR101377	N/A	-	0	N/A	N/A	N/A
35	1	GRD-GR047563	N/A	-	0	N/A	N/A	N/A
36	1	GRD-GR101030	N/A	-	0	N/A	N/A	N/A
37	2	GRD-GR015929	N/A	-	0	N/A	N/A	N/A
38	1	GRD-GR021762	Gleason Hubbell Pin Kit  Part 021762  aka GR021762  Hub lock Pin Kit  100 Series Spring  Origin USA  Export Code 7318190000  Ships in 5 Days, WI 53050  Dated 07-2022  (1LB) H 4" L 6" W 4" Box	-	0	$19.30

Gleason "SM-28" Parts List (PDF)
