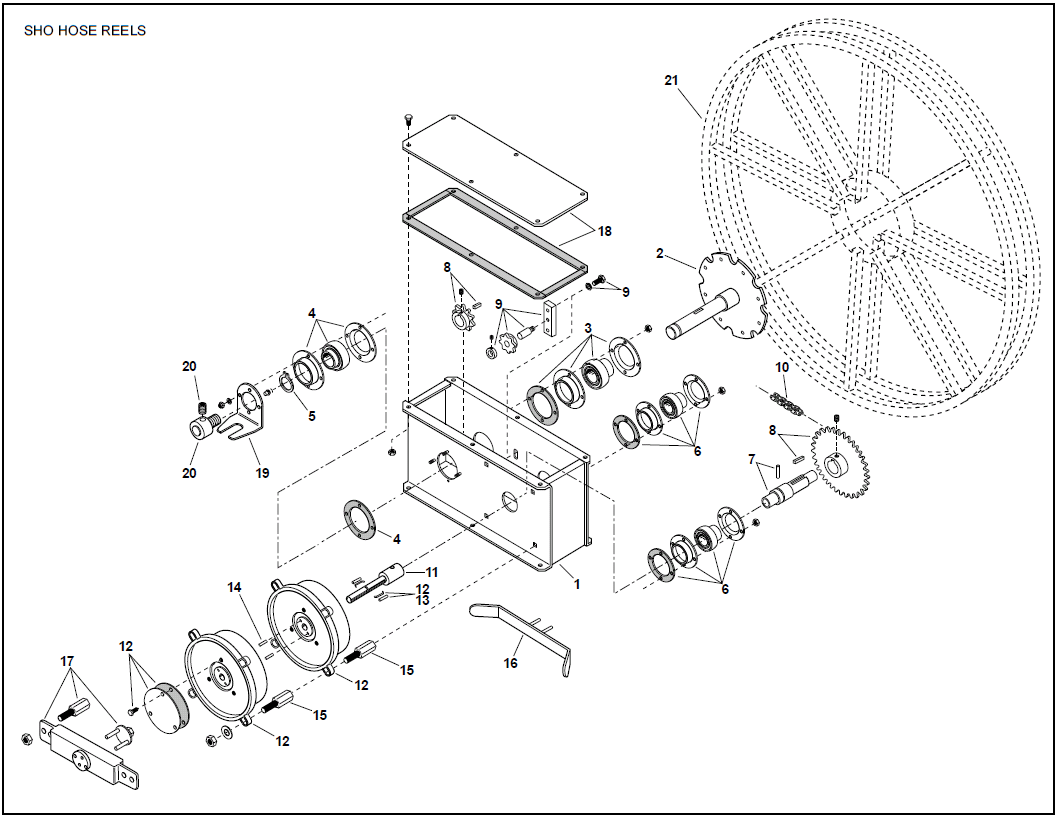

Gleason SHO Series Electric Hose Reels Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 1 GRD-020554 N/A - 0 N/A N/A N/A
2 1
GRD-027856 N/A - 0 N/A N/A N/A
GRD-027857 N/A - 0 N/A N/A N/A
3 1 GRD-021752 Gleason Hubbell Bearing Kit
Part GRD-021752
2 Inch Bore
Includes 2 Housings and a Gasket
Ships in 4 days, WI 53050
Dated 1/18
- 3 $146.25
4 1 GRD-012402 Gleason Hubbell Bearing Kit
Part GR012402
2 Inch Bore
Includes 2 Housings & Gasket
Item 4, 1 per reel
Part GRD-012402
aka GR012402
[NSN 3120-01-234-0350]
Ships in 5 Days
Dated 1/18
- 1 $146.25
5 1 GRD-105060 Gleason TRUARC RING CAT # 5100-200 - 0 $5.70
6 2 GRD-012401 Gleason Cable Reel Part S14
Bearing Kit
1.75 Inch Bore
Includes 2 Housings & Gasket
Item 5, 1 per reel
Part GRD-012401
aka GR012401
[NSN 3120-01-233-0577]
Ships in 3 Days
- 0 $316.15
7 1 GRD-021753 Gleason Hubbell Shaft Kit
Part GR021753
Spring Shaft Kit
Ships in 5 days, WI 53050
Dated 1/18
- 0 $134.70
8 1
GRD-021754 N/A - 0 N/A N/A N/A
GRD-021755 N/A - 0 N/A N/A N/A
GRD-021756 GLEASON SPROCKET KIT-RATIO AC-SHO
aka GR021756
[Lead Time: 5 days]
- 0 N/A N/A N/A
GRD-021757 N/A - 0 N/A N/A N/A
GRD-021758 Gleason Hubbell Sprocket Kit
Part GR021758
Ratio AE
For an SHO Cable Reel
ships in 15 Days, WI 53050
Dated 1/18
- 0 $466.70
9 1 GRD-021759 Gleason Hubbell Idler Kit
Part GR021759
Ships in 5 days, WI 53050
Dated 1/18
- 0 $825.40
10 1 GRD-021760 Gleason Hubbell Roller Chain Kit
aka GR021760
Ships in 5 Days, WI 53050
- 0 $69.22
11 1
GRD-012209 Gleason Shaft. Stub Shaft connects to the main shaft on a Standard Rotation, Direct Drive Reel with a Single Main Spring, Main Spring Series 62 or 75 (5LBS)
[NSN 3040-01-262-7584]
- 0 $429.20
GRD-01220901 Gleason Shaft
Part GRD-GR01220901
Stub Shaft
For Direct Drive Reels
Single Spring Models 621,751 & 801 Rev Rot
aka GR01220901
[NSN 3040-01-223-7342]
(4LBS) H 4" L 6" W 4" Box
- 0 $445.30
GRD-012210 Gleason Shaft Spring Motor Stub Shaft
Connects to the Main Shaft
On a Standard Rotation, Direct Drive Reel with Two Main Springs
Main Spring Series 62 or 80
(6LBS) H 4.00" L 8.00" W 4.00"
[Amazon]
0 $499.10
GRD-01221001 Gleason Shaft Spring Motor Stub Shaft
Connects to the Main Shaft
On a Standard Rotation, Direct Drive Reel with Two Main Springs
Main Spring Series 622 or 802
(6LBS) H 4.00" L 8.00" W 4.00"
- 0 $499.10
GRD-012211 Gleason Stub Shaft for a 603 & 803 spring reel, standard rotation - 0 $583.50
GRD-01221101 Gleason STUB SHAFT-DIRECT 623,803 REV - 0 $583.50
GRD-012212 Gleason STUB SHAFT-DIRECT 624 - 0 $657.85
GRD-01221201 Gleason Stub Shaft, Reverse Rotation - 0 $657.85
GRD-012213 Gleason Stub Shaft for a 100 Series Spring, Standard Rotation with single spring stack on a direct drive reel - 0 $439.95
GRD-01221301 Gleason Stub Shaft for a 100 Series Spring, Reverse Rotation with a single spring stack on a direct drive reel - 0 $422.75
GRD-012214 Gleason Stub Shaft. Stub Shaft for 100 Series Springs, Standard Rotation, for a 2 spring stack, direct drive reel - 0 $517.30
GRD-01221401 Gleason Stub Shaft. Stub Shaft for 100 Series Springs, Reverse Rotation, for a 2 spring stack, direct drive reel - 1 $517.30
GRD-012371 Gleason Stub Shaft
100 Series Springs
Qty 3 Spring Pack
Direct Drive
Standard Rotation
Part GRD-012371
aka GR012371
- 0 $469.70
GRD-01237101 Gleason Stub Shaft
100 Series Springs
Qty 3 Spring Pack
Direct Drive
Reverse Rotation
Part GRD-01237101
aka GR01237101
- 0 $608.20
GRD-014619 Gleason Shaft. Stub Shaft for a 4 Spring Reel - 0 $668.15
GRD-01461901 Gleason SHAFT,STUB,DIRECT,1004,REV - 0 $668.15
12 A/R
GRD-017049 Gleason Hubbell Main Spring Kit
Part GR017049
aka GR017049
80 Series Main Spring
For a "Standard Rotation" Cable Reel
Containerized Safety Spring Assembly
Includes:
Snap Ring
2 Pawls
2 Pawl Leaf Springs
Hub Cover & Cover Gasket
[NSN 5360-01-148-5893]
[Ships from Stock to 5 Days]
[Updated 1-19]
(50LBS) H 4" L 10" W 10" Box
- 1 $1,060.20
GRD-017050 Gleason Spring. Main Spring Kit
Part GR017050
For a Reel with an 80 Series
Main Spring Designation
And the Reverse Rotation option
Includes Containerized Safety Spring Assembly
Snap Ring, 2 Pawls, 2 Pawl / Leaf Springs, Hub Cover & Cover Gasket
[NSN 6105-01-189-3576] Dated 1/18
(50LBS) H 4" L 10" W 10" Box
- 0 $1,039.40
GRD-017051 Gleason Hubbell Main Spring Kit
Part 017051
aka GR017051
100 Series Main Spring
For Standard Rotation Reels
Includes:
Containerized Safety Spring
Snap Ring
2 Pawls
2 Pawl Leaf Springs
Hub Cover & Cover Gasket
NSN 5360-01-297-1022
Ships from BPI Stock
Dated 1-19
(65LBS) H 4" L 13" W 13" Box
35 $1,461.15
GRD-017052 Gleason Hubbell Main Spring
Part 017052
aka GR017052
Main Spring Kit
100 Series
Reverse Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
Dated 1-19
(65LBS) H 4" L 13" W 13" Box
- 0 $1,461.15
13 A/R
GRD-012426 Gleason Hubbell Pawl Kit for Main Springs
Part GR012426
aka GR012426
For 62, 75 or 80 Series Main Springs
Includes Pawl Pin, Pawl Leaf Spring, Pawl Clip & a Snap Ring
Item 12, 1 per reel
[NSN 3040-01-223-0631]
[Ships in 5 to 7 Days]
[Updated 1/19]
- 2 $59.25
GRD-012427 Gleason Pawl Kit for a 100 Series Spring
[NSN 3040-01-316-6511]
- 0 $55.65
14 A/R
GRD-021761 Gleason Hubbell Hub Lock Pin Kit
Part GR021761
For 80 Series Main Springs
Qty 2
Ships in 3 days, WI 53050
Dated 1/18
- 0 $6.25
GRD-021762 Gleason Hubbell Hub Lock Pin Kit
Part GR021762
For 100 Series Main Springs
2 pieces
aka GR021762
Dated 1/18
Ships in 3 days, WI 53050
(1LB) H 4" L 5" W 4" Box
- 0 $11.80
15 A/R
GRD-017054 Gleason Hubbell Bolt Kit
Part GR017054
Extension Bolt Kit
For 80 Series Main Springs
Includes 4 Bolts
3 Inches Long
aka GR017054
Ships in 5 days
Dated 1/18
(21LBS) H 4" L 6" W 4" Box
- 2 $40.40
GRD-017055 Gleason Bolt Kit
Part GRD-017055
Stud Bolt Extension Kit
For Spring Motors
For 100 Series Main Springs
Includes 4 Bolts
4 Inches Long
aka GR017055
[NSN 5307-01-341-3562]
Dated 1/18
Ships in 5 days
(1LBS) H 4" L 6" W 4" Box
- 4 $43.10
16 1
GRD-G64-29 N/A - 0 N/A N/A N/A
GRD-G64-27 N/A - 0 N/A N/A N/A
17 1
GRD-032805 Gleason Pre Tension Wrench for the 70 & 80 Series Springs - 1 $203.95
GRD-032804 Gleason Wrench. Pre-Tension Wrench with Socket for the 100 Series Spring (10LBS) 5/9 - 4 $317.75
18 1 GRD-021763 Gleason Hubbell Chain Cover Kit
Part GR021763
Includes Cover & Gasket
For an SHO Cable Reel
Ships in 15 Days, WI 53050
Dated
- 0 $46.70
19 1 GRD-042229 N/A - 0 N/A N/A N/A
20 1
GRD-102159
Gleason Hose Swivel
Part GR102159
360 Degree Hose Swivel
0.50 Inch I.D.
Male & Female Threads
90 Degree
Viton Seals
[NSN 4910-01-142-3015]
Dated 1/18
(2LBS)
- 0 $244.00
GRD-024670 N/A - 0 N/A N/A N/A
GRD-102160 Gleason Hose Swivel
Part GR102160
360 Degree Hose Swivel
1 Inch I.D.
Male & Female Threads
90 Degree
Viton Seals
Up to 3500 P.S.I.
Nickle Plated
[NSN 4930-01-175-5221]
Ships in 14 work days, WI 53050
Dated 1/18
(4LBS)
- 0 $357.30
GRD-102161 Gleason SWVL JNT 1.25 W/ VITON SEALS - 0 $438.10
GRD-041276 N/A - 0 N/A N/A N/A
21 1 - Spool Assembly - 0 N/A N/A N/A
Gleason "SHO-Hose" Parts List (PDF)
