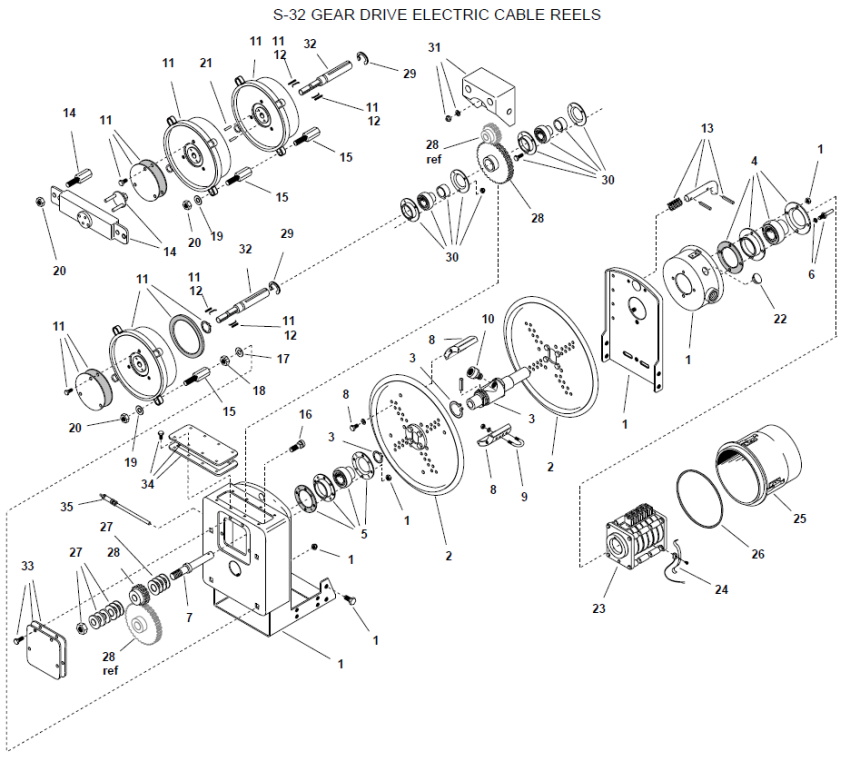

Gleason S-32 Gear Drive Electric Cable Reel Replacement Parts

No	Qty Req'd	Part Number	Description	Picture	Stock Qty	Price Each	Qty Ord'd	Update Cart
1	1	GRD-GR041039	N/A	-	0	N/A	N/A	N/A
2	1	GRD-GR041034	N/A	-	0	N/A	N/A	N/A
3	1	GRD-GR041035	Gleason MAIN SHAFT ASSEMBLY KIT,S32 (aka GR041035) Ships in 5 days	-	0	N/A	N/A	N/A
4	1	GRD-GR012402	Gleason Hubbell Bearing Kit  Part 012402  aka GR012402  Origin USA  Export Code 8482105056  Ships in 5 Days, WI 53050  Dated 01-2023	-	0	$238.90
5	1	GRD-GR012401	Gleason Hubbell Bearing Kit SPL  Part 012401  aka GR012401  1.75 Inch Bore  Ships in 5 Days, WI 53050  Dated 01-2021	-	0	$558.45
6	1	GRD-GR012456	Gleason SPL DRIVE STUD KIT (aka GR012456) Ships in 5 days	-	1	$112.20
7	1	GRD-GR012138 Gleason SHAFT,STUB,#8 PITCH GEARS (aka GR012138) Ships in 5 days - 0 $285.05 GRD-GR012207 Gleason SHAFT,STUB,#6 PITCH GEARS (aka GR012207) Ships in 5 days - 0 $351.25
8	1	GRD-GR012418 Gleason SPL WRAPPER KIT 7.0W X SM.DIA (aka GR012418) Ships in 5 days - 0 $490.55 GRD-GR012419 Gleason SPL WRAPPER KIT 7.0W X LG.DIA (aka GR012419) Ships in 5 days - 0 $508.60
9	1	GRD-GR012444 Gleason Hubbell Clamp Kit  Part GR012444   Cable Clamp Kit  Item 9, 1 per reel  U Bolt & Hardware  For Cable Diameters 0.38 to 0.74 Inches  aka GR012444  [NSN 5340-01-342-1000]  Ships in 5 Days  Dated 1/18  (1LB) H 4" L 5" W 4" Box - 0 $17.45 GRD-GR012445 Gleason SPL CABLE CLAMP KIT .75-1.11 (aka GR012445) Ships in 5 days - 0 $21.60 GRD-GR012446 Gleason SPL CABLE CLAMP KIT 1.25-1.50 (aka GR012446) Ships in 5 days - 0 $22.50
10	1	GRD-GR012459 N/A - 0 N/A N/A N/A GRD-GR012460 Gleason Hubbell Cable Connector  Part 012460  aka GR012460  For Cables with a Diameter Range OF:  0.50 to 0.52 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $166.95 GRD-GR012461 Gleason Hubbell Cable Connector  Part 012461  aka GR012461  For Cables with a Diameter Range OF:  0.62 to 0.75 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 1 $173.20 GRD-GR012462 Gleason Hubbell Cable Connector  Part 012462  aka GR012462  For Cables with a Diameter Range OF:  0.75 to 0.88 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $241.70 GRD-GR012463 Gleason Hubbell Cable Connector  Part 012463  aka GR012463  For Cables with a Diameter Range OF:  0.88 to 1.00 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $254.85 GRD-GR012464 Gleason Hubbell Cable Connector  Part 012464  aka GR012464  For Cables with a Diameter Range OF:  1.00 to 1.12 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $261.15 GRD-GR012465 Gleason Hubbell Cable Connector  Part 012465  aka GR012465  For Cables with a Diameter Range OF:  1.12 to 1.25 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $270.55 GRD-GR012466 Gleason Hubbell Cable Connector  Part 012466  aka GR012466  For Cables with a Diameter Range OF:  1.25 to 1.38 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023ys - 0 $300.80 GRD-GR012467 Gleason Hubbell Cable Connector  Part 012467  aka GR012467  For Cables with a Diameter Range OF:  1.38 to 1.50 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $457.00
11	A/R	GRD-GR017050 Gleason Hubbell Main Spring Kit  Part 017050  aka GR017050  NSN 6105-01-189-3576  For 80 Series, Reverse Rotation Cable Reels  Includes Containerized Safety Spring Assembly  Snap Ring, 2 Pawls, 2 Pawl - Leaf Springs, Hub Cover & Cover Gasket  Ships in 5 Days, WI 53050  Dated 01-2023  (50LBS) H 4" L 10" W 10" Box - 0 $1,139.70 GRD-GR017049 Gleason Hubbell Main Spring Kit  Part 017049  aka GR017049  80 Series Main Spring  For a "Standard Rotation" Cable Reel  Containerized Safety Spring Assembly  Includes:  Snap Ring  2 Pawls  2 Pawl Leaf Springs  Hub Cover & Cover Gasket  NSN 5360-01-148-5893 Gov #  Ships in 5 Days, WI 53050  Dated 11-2024  (48LBS) H 5" L 20" W 18" Box - 0 $1,139.70 GRD-GR017052 Gleason Hubbell Main Spring  Part 017052  aka GR017052  Main Spring Kit  100 Series  Reverse Rotation  Includes Containerized Safety Spring Assembly  Snap Ring  2 Pawls  2 Pawl - Leaf Springs  Hub Cover & Cover Gasket  Ships in 5 Days, WI 53050  Dated 01-2023  (68LBS) H 4" L 13" W 13" Box - 0 $1,570.75 GRD-GR017051 Gleason Hubbell Main Spring Kit  Part 017051  aka GR017051  100 Series Main Spring  For Standard Rotation Reels  Includes:  Containerized Safety Spring  Snap Ring  2 Pawls  2 Pawl Leaf Springs  Hub Cover & Cover Gasket  NSN 5360-01-297-1022 Gov #  Ships in 5 Days, WI 53050  Dated 01-2025  (68LBS) H 4" L 13" W 13" Box - 31 $1,570.75
12	A/R	GRD-GR012426 Gleason Hubbell Pawl Kit for Main Springs  Part 012426  aka GR012426   For 62, 75 & 80 Series Main Springs  Includes Pawl Pin, Pawl Leaf Spring, Pawl Clip & a Snap Ring  Item 12, 1 per reel  NSN 3040-01-223-0631 Gov #  Ships in 5 Days, WI 53050  Dated 02-2024 - 2 $96.75 GRD-GR012427 Gleason SPL PAWL KIT 100 SPRING (aka GR012427) Ships in 5 days - 0 $98.35
13	1	GRD-GR012091	Gleason Hubbell Spool Lock Assembly  Part 012091  aka GR012091  Spool Lock Assembly  For S16 through S32 Cable Reels  Secures the spool facilitating cable reel maintenance  NSN 5342-01-341-2171 Gov #  Ships in 10 Days, WI 53050  Dated 07-2022  (6LBS) H 6" L 8" W 6" Box	-	1	$202.00
14	1	GRD-GR032805 Gleason Hubbell Pre-Tension Wrench Kit  Part GR032805  aka GR032805  Main Spring Pretension Wrench Kit  For 75/80 Series Main Springs  [Ships in 5 Days]  [Updated 1-19] - 1 $360.30 GRD-GR032804 Gleason Hubbell Wrench  Part 032804  aka GR032804  Pretension Wrench Kit  For a 100- Series Spring   Ships from Stock to 10 Days, WI 53050  Dated 07-2021 - 2 $561.15
15	A/R	GRD-GR017054 Gleason STUD BOLT EXTENSION KIT-3.00"L (aka GR017054) Ships in 5 days - 2 $66.05 GRD-GR017055 Gleason Hubbell Stud Bolt Extension Kit  Part 017055  aka GR017055  4 Inches Long  Origin USA  Export Code 7318155090  Ships in 5 Days, WI 53050  Dated 07-2022  (2LBS) - 4 $70.40
16	A/R	GRD-GR016182	N/A	-	0	N/A	N/A	N/A
17	A/R	GRD-GR021291	N/A	-	0	N/A	N/A	N/A
18	A/R	GRD-GR100959	N/A	-	0	N/A	N/A	N/A
19	A/R	GRD-GR101211	N/A	-	0	N/A	N/A	N/A
20	A/R	GRD-GRP06-03	N/A	-	0	N/A	N/A	N/A
21	A/R	GRD-GR021762 Gleason Hubbell Pin Kit  Part 021762  aka GR021762  Hub lock Pin Kit  100 Series Spring  Origin USA  Export Code 7318190000  Ships in 5 Days, WI 53050  Dated 07-2022  (1LB) H 4" L 6" W 4" Box - 0 $19.30 GRD-GR021761 Gleason HUB LOCK PIN KIT-80 SPRINGS (aka GR021761) Ships in 3 days - 0 $10.25
22	1	GRD-GR012457	Gleason SPL BUTTON PLUG (aka GR012457) Ships in 5 days	-	0	$7.75
23	1	GRD-GR012285 Gleason Slip Ring Assembly  Part aka GR012285  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  2 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 23  Dated 1/18  (8LBS) H 5" L 10" W 5" Box - 1 $1,690.60 GRD-GR012286 Gleason Slip Ring Assembly  Part aka GR012286  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  3 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 33  Dated 1/18  (9LBS) H 5" L 10" W 5" Box - 1 $1,792.95 GRD-GR012287 Gleason Hubbell Slip Ring Assembly  Part 012287  aka GR012287  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  4 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 43  NSN 5977-01-311-2203 Gov  Ships in 10 Days, WI 53050  Dated 04-2024  (10LBS) H 5" L 10" W 5" Box 0 $1,905.95 GRD-GR012288 Gleason Hubbell Slip Ring Assembly  Part 012288  aka GR012288  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  6 Independent Circuits - Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 63  NSN 5977-01-186-6639 Gov#  Dated 01-2021  (10LBS) H 5" L 12" W 5" Box - 0 $2,213.00 GRD-GR012289 Gleason Hubbell Slip Ring Assembly 83  Part 012289  aka GR012289  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  8 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 83  NSN 5977-01-265-5103 Gov  Ships in 10 Days, WI 53050  Dated 01-2021  (9LBS) H 5" L 12" W 5" Box - 0 $2,520.70 GRD-GR012290 Gleason Hubbell Slip Ring Assembly  Part 012290  aka GR012290  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  10 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 103  Gov # NSN 5977-01-252-6406  Ships in 15 Days, WI 53050  Dated 01-2025  (12LBS) H 5" L 14" W 5" Box - 0 $2,868.45 GRD-GR012291 Gleason Hubbell Slip Ring Assembly  Part 012291  aka GR012291  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  12 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 123  Ship sin 10 Days, WI 53050  Dated 1-2020 - 0 $3,216.95 GRD-GR012292 Gleason Hubbell Slip Ring Assembly  Part 012292  aka GR012292  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  14 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 143  Ships in 5 Days, WI 53050  Dated 01-2021  (13LBS) H 5" L 18" W 5" Box - 0 $3,495.60 GRD-GR012293 Gleason Hubbell Slip Ring Assembly  Part 012293  aka GR012293  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  16 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 163  Ships in 10 Days, WI 53050  Dated 10-2024  (18LBS) H 5" L 20" W 5" Box - 0 $276.72 GRD-GR012294 Gleason Hubbell Slip Ring Assembly  Part 012294  aka GR012294  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  20 Independent Circuits - Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 203  NSN 5977-01-362-0979 US Gov #  Dated 01-2023  Ships in 2 to 3 Weeks, WI 53030  (20LBS) H 5" L 22" W 5" Box - 0 $5,193.15 GRD-GR012295 Gleason Hubbell Slip Ring Assembly  Part 012295  aka GR012295  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  24 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 243  [NSN 5977-01-371-8300]  Ships in 10 Days, WI 53050  Dated 1-19  (22LBS) H 5" L 24" W 5" Box - 0 $5,832.80 GRD-GR012296 Gleason Hubbell Slip Ring Assembly  Part 012296  aka GR012296  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  30 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 303  [NSN 5977-01-181-3136]  Dated 1-19  (24LBS) H 5" L 26" W 5" Box - 0 $6,822.30 GRD-GR012297 N/A - 0 N/A N/A N/A GRD-GR012298 Gleason Hubbell Slip Ring Assembly  Part RP075-02  aka GR012298  ROTA-POWER Self Contained Slip Ring   75 Amp Continuous Duty  Must be derated for multiple conductors  2 Conductor / Circuits  600 Volt Maximum  8 AWG Lead Wires for connection  2 Inch ID Drive Collar with double screws  6.38 Inch, Assembled Length Dim "A"  Part # 27   Normally a Stock Item @ BPI  Ships from Stock to 10 Days   Dated 08-2023  (10LBS) H 7" L 10" W 8" Box - 0 $1,752.40 GRD-GR012299 Gleason Hubbell Slip Ring Assembly  Part 012299 # 37  aka GR012299  Self Contained Ring Assembly  75 AMP Continuous Duty  3 Independent Circuits - Conductors  600 Volts Maximum  2 Inch Bore Diameter  Dated 01-2023  (13LBS) H 6" L 10" W 6" Box 0 $1,896.00 GRD-GR012300 Gleason Hubbell Slip Ring Assembly SR  Part 012300  aka GR012300  Completely Self Contained Ring Assembly  75 AMP Continuous Duty  4 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  Normally a Stock Item @ BPI  (10LBS) H 12" L 16" W 16" Box - 0 $2,008.50 GRD-GR012376 Gleason Hubbell Slip Ring Assembly  Part 012376  aka GR012376  Completely Self Contained Ring Assembly  75 AMP Continuous Duty  4 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #47  NSN 5977-01-317-4238 US GOV #  Dated 07-2020  (10LBS) H 5" L 10" W 5" Box - 2 $2,274.60 GRD-GR012377 Gleason Hubbell Slip Ring Assembly  Part 012377  aka GR012377  Completely Self Contained Ring Assembly  75 AMP Continuous Duty  8 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #87  Dated 1-19  (10LBS) H 5" L 10" W 5" Box - 0 $2,439.05 GRD-GR037194 Gleason Hubbell Slip Ring Assembly   Part 037194  aka GR037194  A Completely Self Contained Assembly  2 Conductor - Circuits  125 Amps Continuous Duty  600 Volts Maximum  2 Inch Bore Diameter  # 212  Origin USA  Export Code 8536908585  Normally a Stock Item @ BPI  Ships from Stock to 15 Days  Dated 01-2024  (7LBS) H 6" L 8" W 6" Box 0 $3,118.30 GRD-GR037294 Gleason COLLECTOR ASSEMBLY 312 (aka GR037294) Ships in 10 days - 1 $3,501.55 GRD-GR037295 Gleason Hubbell Slip Ring Assembly RP  Part 037295 #412  aka GR037295  ROTA-POWER Self Contained Slip Ring   125 Amp Continuous Duty  Must be derated for multiple conductors  4 Conductor - Circuits  600 Volt Maximum  4 AWG Lead Wires for connection  2 Inch ID Drive Collar with double set screws & a woodruff key  10.38 Inch Assemble Length Dim "A"  Origin USA  Export Code 8536908585  Ships in 15 Days, WI 53050 - 0 $3,811.85 GRD-GR012304 Gleason Hubbell Slip Ring Assembly  Part 012304  aka GR012304  Completely Self Contained Ring Assembly  200 AMP Continuous Duty  2 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  aka #220  Dated 07-2021  (8LBS) H 6" L 10" W 6" Box - 0 $2,735.10 GRD-GR012381 Gleason Hubbell Slip Ring Assembly  Part 012381  aka GR012381  Completely Self Contained Ring Assembly  200 AMP Continuous Duty  3 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #320  Dated 1-19  (12LBS) H 6" L 10" W 6" Box - 0 $3,299.10 GRD-GR012382 Gleason Hubbell Slip Ring Assembly  Part 012382  aka GR012382  #420 090065  Completely Self Contained Ring Assembly  200 AMP Continuous Duty  4 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #420  Normally a Stock Item @ BPI  Ships from Stock to 5 Days  Dated 06-2024 3 $3,861.45 GRD-GR012383 Gleason Hubbell Slip Ring Assembly  Part 012383  aka GR012383  Completely Self Contained Ring Assembly  75 AMP Continuous Duty  6 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #62  Ships in 5 Weeks, WI   Dated 08-2021  (10LBS) H 6" L 12" W 6" Box - 0 $5,264.70 GRD-GR012384 Gleason Hubbell Slip Ring Assembly  Part 012384  aka GR012384  Completely Self Contained Ring Assembly  200 AMP Continuous Duty  8 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #820  Dated 1-19  (18LBS) H 6" L 16" W 6" Box - 0 $6,601.05
24	A/R	GRD-GR012440 Gleason Hubbell Brush Kit  Part 012440  aka GR012440  For a 3 or 4 Conductors 35 AMP Slip Ring  Includes:  4, Brushes  4, Brush Fingers - Springs & Instructions  NSN 5977-01-182-7784 US Gov #  Origin USA  Export Code 8545200000  Ships in 5 Days, WI 53050  Dated 01-2024 - 0 $457.95 GRD-GR012441 Gleason Hubbell Brush Kit  Part 012441  aka GR012441  For a 75 Amp Slip Ring Assembly  Includes:  4 Brushes  4, Spring Fingers & Instructions  NSN 5977-01-317-4284 Gov #  Ships from Stock to 5 Days  Dated 08-2021  (2LBS) H 4" L 8" W 4" Box" - 0 $904.15 GRD-GR012443 Gleason Hubbell Brush Kit  Part 012443  aka GR012443  For a 200 Amp Slip Ring Assembly  Includes:  4 Brushes / 2 Brushes per Ring  Spring Fingers & Instructions  Enough brushes & spring fingers for a 2 conductor slip ring assembly  Origin USA  Export Code 8545200000  Ships from Stock to 5 Days, WI 53050  Dated 04-2025  (2LBS) H 4" L 8" W 4" Box - 0 $968.20
25	1	GRD-GR012409 Gleason Hubbell Slip Ring Cover Kit  Part 012409  aka GR012409  8 Inches Long  With Ring Seal  Ships in 5 Days, WI 53050  Dated 04-2024 - 0 $835.55 GRD-GR012410 Gleason Hubbell Slip Ring Cover Kit  Part 012410  aka GR012410  Extends 10.5 Inches to Cover the Slip Ring  For Slip Rings 47 &   Powder Coat Polyester Orange  Origin USA  Export Code 8479909596  Ships in 5 Days, WI 53050  Dated 01-2023  (10LBS) H 6" L 12" W 6" Box - 0 $913.70 GRD-GR012411 Gleason Hubbell Slip Ring Cover  Part 012441  aka GR012411  13 Inches Long  Color Orange  Ships in 5 Days, WI 53050  Dated 12-2021  (12LBS) - 2 $1,047.30 GRD-GR012412 Gleason Hubbell Cover Kit  Part 012412  aka GR012412  Cable Reel Slip Ring Cover  15.5 Inches Long  Color Orange  Ships in 4 Weeks, WI 53050  Dated 01-2023  (12LBS) H 10" L 16" W 10" Box - 0 $1,078.10 GRD-GR012413 Gleason Hubbell Slip Ring Cover Kit  Part 012413   aka GR012413   20.5 Inches Long  Ship in 10 Days, WI 53050  Dated 12-2022  (10LBS) - 1 $1,228.30 GRD-GR012414 Gleason Hubbell Slip Ring Cover Kit  Part 012414  aka GR012414  28.5 Inches Long  Ships in 10 Days, WI 53050  Dated 02-26-2022  (12LBS) - 1 $1,687.95
26	1	GRD-GR012458	Gleason Hubbell Housing Seal Ring  Part 012458  aka GR012458  Slip Ring Housing Seal  Origin USA  Export Code 4016935010  Ships in 15 Days, WI 53050  Dated 04-2025  (1LB)	-	0	$86.30
27	1	GRD-GR016525	Gleason GEAR DETENSIONING KIT SM REEL (aka GR016525) Ships in 5 days	-	0	$884.90
28	1	GRD-GR016202 Gleason GEAR ASSEMBLY RATIO"M" 1.50:1 (aka GR016202) Ships in 5 days - 0 $3,430.70 GRD-GR016203 Gleason GEAR ASSEMBLY RATIO"N" 1.72:1 (aka GR016203) Ships in 15 days - 0 $3,558.25 GRD-GR016204 Gleason GEAR ASSEMBLY RATIO"P" 2.00:1 (aka GR016204) Ships in 15 days - 0 $3,406.25 GRD-GR016205 Gleason GEAR ASSEMBLY RATIO"Q" 2.33:1 (aka GR016205) Ships in 15 days - 0 $3,126.85 GRD-GR016206 Gleason GEAR ASSEMBLY RATIO"R" 2.75:1 (aka GR016206) Ships in 5 days - 0 $3,352.30 GRD-GR016207 Gleason GEAR ASSEMBLY RATIO"S" 4.00:1 (aka GR016207) Ships in 15 days - 0 $3,182.55 GRD-GR016208 Gleason GEAR ASSEMBLY RATIO"T" 1.50:1 (aka GR016208) Ships in 5 days - 0 $3,508.80 GRD-GR016209 Gleason GEAR ASSEMBLY RATIO"V" 2.00:1 (aka GR016209) Ships in 5 days - 0 $3,691.40 GRD-GR016210 Gleason GEAR ASSEMBLY RATIO"W" 2.75:1 (aka GR016210) Ships in 5 days - 0 $3,613.10 GRD-GR016211 Gleason GEAR ASSEMBLY RATIO"Y" 4.00:1 (aka GR016211) Ships in 15 days - 0 $3,280.95
29	1	GRD-GR118320	Gleason RET RING #5103-125-ZC ZINC CLE (aka GR118320) Ships in 7 days	-	0	$6.65
30	2	GRD-GR012399	Gleason SPL BEARING KIT 1.25 BORE (aka GR012399) Ships in 10 days	-	0	$281.70
31	1	GRD-GR016524	N/A	-	0	N/A	N/A	N/A
32	1	GRD-GR040318 N/A - 0 N/A N/A N/A GRD-GR04031801 N/A - 0 N/A N/A N/A GRD-GR040317 N/A - 0 N/A N/A N/A GRD-GR04031701 N/A - 0 N/A N/A N/A GRD-GR040310 N/A - 0 N/A N/A N/A GRD-GR04031001 N/A - 0 N/A N/A N/A GRD-GR040309 N/A - 0 N/A N/A N/A GRD-GR04030901 N/A - 0 N/A N/A N/A GRD-GR040308 N/A - 0 N/A N/A N/A GRD-GR04030801 N/A - 0 N/A N/A N/A GRD-GR039843 N/A - 0 N/A N/A N/A GRD-GR03984301 N/A - 0 N/A N/A N/A GRD-GR040316 N/A - 0 N/A N/A N/A GRD-GR04031601 N/A - 0 N/A N/A N/A GRD-GR040315 N/A - 0 N/A N/A N/A GRD-GR04031501 N/A - 0 N/A N/A N/A
33	1	GRD-GR041036	N/A	-	0	N/A	N/A	N/A
34	1	GRD-GR041048	N/A	-	0	N/A	N/A	N/A
35	1	GRD-GR041052	N/A	-	0	N/A	N/A	N/A

Gleason "S-32-Gear" Parts List (PDF)
