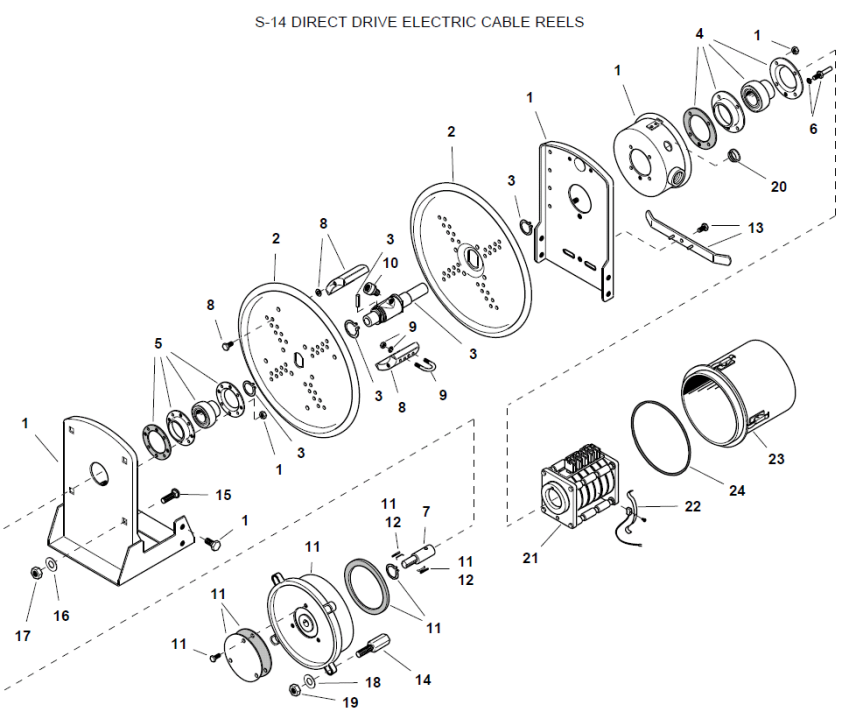

Gleason S-14 Direct Drive Electric Cable Reel Replacement Parts

No	Qty Req'd	Part Number	Description	Picture	Stock Qty	Price Each	Qty Ord'd	Update Cart
1	1	GRD-GR012390	N/A	-	0	N/A	N/A	N/A
2	1	GRD-GR012403	N/A	-	0	N/A	N/A	N/A
3	1	GRD-GR012396	Gleason SPL MAIN SHAFT ASSY S14 (aka GR012396) Ships in 5 days	-	0	$1,393.35
4	1	GRD-GR012402	Gleason Hubbell Bearing Kit  Part 012402  aka GR012402  Origin USA  Export Code 8482105056  Ships in 5 Days, WI 53050  Dated 01-2023	-	0	$238.90
5	1	GRD-GR012401	Gleason Hubbell Bearing Kit SPL  Part 012401  aka GR012401  1.75 Inch Bore  Ships in 5 Days, WI 53050  Dated 01-2021	-	0	$558.45
6	1	GRD-GR012456	Gleason SPL DRIVE STUD KIT (aka GR012456) Ships in 5 days	-	1	$112.20
7	1	GRD-GR012221 Gleason SHAFT,STUB,DIRECT,351,601,STD (aka GR012221) Ships in 10 days - 0 $537.20 GRD-GR01222101 Gleason SHAFT,STUB,DIRECT,351,601,REV, (aka GR01222101) Ships in 5 days - 0 $537.20 GRD-GR014504 N/A - 0 N/A N/A N/A GRD-GR01450401 N/A - 0 N/A N/A N/A
8	1	GRD-GR012415	N/A	-	0	N/A	N/A	N/A
9	1	GRD-GR012444 Gleason Hubbell Clamp Kit  Part GR012444   Cable Clamp Kit  Item 9, 1 per reel  U Bolt & Hardware  For Cable Diameters 0.38 to 0.74 Inches  aka GR012444  [NSN 5340-01-342-1000]  Ships in 5 Days  Dated 1/18  (1LB) H 4" L 5" W 4" Box - 0 $17.45 GRD-GR012445 Gleason SPL CABLE CLAMP KIT .75-1.11 (aka GR012445) Ships in 5 days - 0 $21.60 GRD-GR012446 Gleason SPL CABLE CLAMP KIT 1.25-1.50 (aka GR012446) Ships in 5 days - 0 $22.50
10	1	GRD-GR012459 N/A - 0 N/A N/A N/A GRD-GR012460 Gleason Hubbell Cable Connector  Part 012460  aka GR012460  For Cables with a Diameter Range OF:  0.50 to 0.52 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $166.95 GRD-GR012461 Gleason Hubbell Cable Connector  Part 012461  aka GR012461  For Cables with a Diameter Range OF:  0.62 to 0.75 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 1 $173.20 GRD-GR012462 Gleason Hubbell Cable Connector  Part 012462  aka GR012462  For Cables with a Diameter Range OF:  0.75 to 0.88 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $241.70 GRD-GR012463 Gleason Hubbell Cable Connector  Part 012463  aka GR012463  For Cables with a Diameter Range OF:  0.88 to 1.00 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $254.85 GRD-GR012464 Gleason Hubbell Cable Connector  Part 012464  aka GR012464  For Cables with a Diameter Range OF:  1.00 to 1.12 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $261.15 GRD-GR012465 Gleason Hubbell Cable Connector  Part 012465  aka GR012465  For Cables with a Diameter Range OF:  1.12 to 1.25 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $270.55 GRD-GR012466 Gleason Hubbell Cable Connector  Part 012466  aka GR012466  For Cables with a Diameter Range OF:  1.25 to 1.38 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023ys - 0 $300.80 GRD-GR012467 Gleason Hubbell Cable Connector  Part 012467  aka GR012467  For Cables with a Diameter Range OF:  1.38 to 1.50 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $457.00
11	1	GRD-GR017041 Gleason Hubbell Main Spring  Part 017041  aka GR017041  Main Spring Kit  35 Series, Standard Rotation  Includes Containerized Safety Spring Assembly  Snap Ring  2 Pawls  2 Pawl / Leaf Springs  Hub Cover & Cover Gasket  NSN 5360-01-423-7121 Gov #  Ships in 5 Days, WI  Dated 08-2024  (14LBS) H 4" L 10" W 10" Box - 4 $650.55 GRD-GR017042 Gleason Hubbell Main Spring Kit  Part GR017042  aka GR017042  35 Series Spring  For Reveres Rotation Cable Reel R  Includes:  Containerized Safety Spring Assembly  Snap Ring  2 Pawls  2 Pawl / Leaf Springs  Hub Cover & Cover Gasket  Dated 1-19  (20LBS) H 4" L 10" W 10" Box - 0 $650.55 GRD-GR017043 Gleason SPARE SPRING KIT,60S (aka GR017043) Ships in 10 days - 2 $701.40 GRD-GR017044 Gleason Hubbell Main Spring Kit  Part 017044  aka GR017044  60R  Origin USA  Export Code 8412801000  Ships in 10 Days, WI 53050  Dated 01-2023 - 0 $701.40 GRD-GR017047 Gleason Hubbell Main Spring Kit  Part 017047  aka GR017047  75 Series Main Spring  For a Standard Rotation Cable Reel  Includes:  Containerized Safety Spring Assembly  Snap Ring  2 Pawls  2 Pawl / Leaf Springs  Hub Cover & Cover Gasket  Ships in 5 Days, WI 53050  Dated 01-2024  (24LBS) H 5" L 20" W 18" Box - 0 $1,038.35 GRD-GR017048 Gleason Hubbell Main Spring Kit  Part 017048  aka GR017048   75 Series, Reverse Rotation  Includes Containerized Safety Spring Assembly  Snap Ring  2 Pawls  2 Pawl Leaf Springs  Hub Cover & Cover Gasket  NSN 5360-01-224-2307 Gov #  Dated 01-2023  (24LBS) H 5" L 20" W 18" Box - 0 $1,038.35
12	1	GRD-GR012425 Gleason Hubbell Pawl Kit  Part 012425  aka GR012425  Pawl Kit  For 35 & 60 Series Main Spring  Ships in 3 Days, WI 53050  Dated 01-2-20 - 0 $93.10 GRD-GR012426 Gleason Hubbell Pawl Kit for Main Springs  Part 012426  aka GR012426   For 62, 75 & 80 Series Main Springs  Includes Pawl Pin, Pawl Leaf Spring, Pawl Clip & a Snap Ring  Item 12, 1 per reel  NSN 3040-01-223-0631 Gov #  Ships in 5 Days, WI 53050  Dated 02-2024 - 2 $96.75
13	1	GRD-GR017190	Gleason Hubbell Tension Wrench  Part 017190  aka GR017190  Main Spring Tension Wrench  For 35 - 60 - 62 - & 75 Series Main Springs  Ships in 2 Weeks, WI 53050  Dated 01-2023  (8LBS)	-	1	$154.15
14	1	GRD-GR017054	Gleason STUD BOLT EXTENSION KIT-3.00"L (aka GR017054) Ships in 5 days	-	2	$66.05
15	A/R	GRD-GR016182	N/A	-	0	N/A	N/A	N/A
16	A/R	GRD-GR021291	N/A	-	0	N/A	N/A	N/A
17	A/R	GRD-GR100959	N/A	-	0	N/A	N/A	N/A
18	A/R	GRD-GR101211	N/A	-	0	N/A	N/A	N/A
19	A/R	GRD-GRP06-03	N/A	-	0	N/A	N/A	N/A
20	1	GRD-GR012457	Gleason SPL BUTTON PLUG (aka GR012457) Ships in 5 days	-	0	$7.75
21	1	GRD-GR012285 Gleason Slip Ring Assembly  Part aka GR012285  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  2 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 23  Dated 1/18  (8LBS) H 5" L 10" W 5" Box - 1 $1,690.60 GRD-GR012286 Gleason Slip Ring Assembly  Part aka GR012286  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  3 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 33  Dated 1/18  (9LBS) H 5" L 10" W 5" Box - 1 $1,792.95 GRD-GR012287 Gleason Hubbell Slip Ring Assembly  Part 012287  aka GR012287  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  4 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 43  NSN 5977-01-311-2203 Gov  Ships in 10 Days, WI 53050  Dated 04-2024  (10LBS) H 5" L 10" W 5" Box 0 $1,905.95 GRD-GR012288 Gleason Hubbell Slip Ring Assembly  Part 012288  aka GR012288  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  6 Independent Circuits - Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 63  NSN 5977-01-186-6639 Gov#  Dated 01-2021  (10LBS) H 5" L 12" W 5" Box - 0 $2,213.00 GRD-GR012289 Gleason Hubbell Slip Ring Assembly 83  Part 012289  aka GR012289  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  8 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 83  NSN 5977-01-265-5103 Gov  Ships in 10 Days, WI 53050  Dated 01-2021  (9LBS) H 5" L 12" W 5" Box - 0 $2,520.70 GRD-GR012290 Gleason Hubbell Slip Ring Assembly  Part 012290  aka GR012290  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  10 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 103  Gov # NSN 5977-01-252-6406  Ships in 15 Days, WI 53050  Dated 01-2025  (12LBS) H 5" L 14" W 5" Box - 0 $2,868.45 GRD-GR012291 Gleason Hubbell Slip Ring Assembly  Part 012291  aka GR012291  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  12 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 123  Ship sin 10 Days, WI 53050  Dated 1-2020 - 0 $3,216.95 GRD-GR012292 Gleason Hubbell Slip Ring Assembly  Part 012292  aka GR012292  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  14 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 143  Ships in 5 Days, WI 53050  Dated 01-2021  (13LBS) H 5" L 18" W 5" Box - 0 $3,495.60 GRD-GR012293 Gleason Hubbell Slip Ring Assembly  Part 012293  aka GR012293  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  16 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 163  Ships in 10 Days, WI 53050  Dated 10-2024  (18LBS) H 5" L 20" W 5" Box - 0 $276.72 GRD-GR012294 Gleason Hubbell Slip Ring Assembly  Part 012294  aka GR012294  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  20 Independent Circuits - Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 203  NSN 5977-01-362-0979 US Gov #  Dated 01-2023  Ships in 2 to 3 Weeks, WI 53030  (20LBS) H 5" L 22" W 5" Box - 0 $5,193.15 GRD-GR012295 Gleason Hubbell Slip Ring Assembly  Part 012295  aka GR012295  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  24 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 243  [NSN 5977-01-371-8300]  Ships in 10 Days, WI 53050  Dated 1-19  (22LBS) H 5" L 24" W 5" Box - 0 $5,832.80 GRD-GR012296 Gleason Hubbell Slip Ring Assembly  Part 012296  aka GR012296  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  30 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 303  [NSN 5977-01-181-3136]  Dated 1-19  (24LBS) H 5" L 26" W 5" Box - 0 $6,822.30 GRD-GR012297 N/A - 0 N/A N/A N/A GRD-GR012298 Gleason Hubbell Slip Ring Assembly  Part RP075-02  aka GR012298  ROTA-POWER Self Contained Slip Ring   75 Amp Continuous Duty  Must be derated for multiple conductors  2 Conductor / Circuits  600 Volt Maximum  8 AWG Lead Wires for connection  2 Inch ID Drive Collar with double screws  6.38 Inch, Assembled Length Dim "A"  Part # 27   Normally a Stock Item @ BPI  Ships from Stock to 10 Days   Dated 08-2023  (10LBS) H 7" L 10" W 8" Box - 0 $1,752.40 GRD-GR012299 Gleason Hubbell Slip Ring Assembly  Part 012299 # 37  aka GR012299  Self Contained Ring Assembly  75 AMP Continuous Duty  3 Independent Circuits - Conductors  600 Volts Maximum  2 Inch Bore Diameter  Dated 01-2023  (13LBS) H 6" L 10" W 6" Box 0 $1,896.00 GRD-GR012300 Gleason Hubbell Slip Ring Assembly SR  Part 012300  aka GR012300  Completely Self Contained Ring Assembly  75 AMP Continuous Duty  4 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  Normally a Stock Item @ BPI  (10LBS) H 12" L 16" W 16" Box - 0 $2,008.50 GRD-GR012376 Gleason Hubbell Slip Ring Assembly  Part 012376  aka GR012376  Completely Self Contained Ring Assembly  75 AMP Continuous Duty  4 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #47  NSN 5977-01-317-4238 US GOV #  Dated 07-2020  (10LBS) H 5" L 10" W 5" Box - 2 $2,274.60 GRD-GR012377 Gleason Hubbell Slip Ring Assembly  Part 012377  aka GR012377  Completely Self Contained Ring Assembly  75 AMP Continuous Duty  8 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #87  Dated 1-19  (10LBS) H 5" L 10" W 5" Box - 0 $2,439.05 GRD-GR037194 Gleason Hubbell Slip Ring Assembly   Part 037194  aka GR037194  A Completely Self Contained Assembly  2 Conductor - Circuits  125 Amps Continuous Duty  600 Volts Maximum  2 Inch Bore Diameter  # 212  Origin USA  Export Code 8536908585  Normally a Stock Item @ BPI  Ships from Stock to 15 Days  Dated 01-2024  (7LBS) H 6" L 8" W 6" Box 0 $3,118.30 GRD-GR037294 Gleason COLLECTOR ASSEMBLY 312 (aka GR037294) Ships in 10 days - 1 $3,501.55 GRD-GR037295 Gleason Hubbell Slip Ring Assembly RP  Part 037295 #412  aka GR037295  ROTA-POWER Self Contained Slip Ring   125 Amp Continuous Duty  Must be derated for multiple conductors  4 Conductor - Circuits  600 Volt Maximum  4 AWG Lead Wires for connection  2 Inch ID Drive Collar with double set screws & a woodruff key  10.38 Inch Assemble Length Dim "A"  Origin USA  Export Code 8536908585  Ships in 15 Days, WI 53050 - 0 $3,811.85 GRD-GR012304 Gleason Hubbell Slip Ring Assembly  Part 012304  aka GR012304  Completely Self Contained Ring Assembly  200 AMP Continuous Duty  2 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  aka #220  Dated 07-2021  (8LBS) H 6" L 10" W 6" Box - 0 $2,735.10 GRD-GR012381 Gleason Hubbell Slip Ring Assembly  Part 012381  aka GR012381  Completely Self Contained Ring Assembly  200 AMP Continuous Duty  3 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #320  Dated 1-19  (12LBS) H 6" L 10" W 6" Box - 0 $3,299.10 GRD-GR012382 Gleason Hubbell Slip Ring Assembly  Part 012382  aka GR012382  #420 090065  Completely Self Contained Ring Assembly  200 AMP Continuous Duty  4 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #420  Normally a Stock Item @ BPI  Ships from Stock to 5 Days  Dated 06-2024 3 $3,861.45 GRD-GR012383 Gleason Hubbell Slip Ring Assembly  Part 012383  aka GR012383  Completely Self Contained Ring Assembly  75 AMP Continuous Duty  6 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #62  Ships in 5 Weeks, WI   Dated 08-2021  (10LBS) H 6" L 12" W 6" Box - 0 $5,264.70 GRD-GR012384 Gleason Hubbell Slip Ring Assembly  Part 012384  aka GR012384  Completely Self Contained Ring Assembly  200 AMP Continuous Duty  8 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #820  Dated 1-19  (18LBS) H 6" L 16" W 6" Box - 0 $6,601.05
22	A/R	GRD-GR012440 Gleason Hubbell Brush Kit  Part 012440  aka GR012440  For a 3 or 4 Conductors 35 AMP Slip Ring  Includes:  4, Brushes  4, Brush Fingers - Springs & Instructions  NSN 5977-01-182-7784 US Gov #  Origin USA  Export Code 8545200000  Ships in 5 Days, WI 53050  Dated 01-2024 - 0 $457.95 GRD-GR012441 Gleason Hubbell Brush Kit  Part 012441  aka GR012441  For a 75 Amp Slip Ring Assembly  Includes:  4 Brushes  4, Spring Fingers & Instructions  NSN 5977-01-317-4284 Gov #  Ships from Stock to 5 Days  Dated 08-2021  (2LBS) H 4" L 8" W 4" Box" - 0 $904.15 GRD-GR012443 Gleason Hubbell Brush Kit  Part 012443  aka GR012443  For a 200 Amp Slip Ring Assembly  Includes:  4 Brushes / 2 Brushes per Ring  Spring Fingers & Instructions  Enough brushes & spring fingers for a 2 conductor slip ring assembly  Origin USA  Export Code 8545200000  Ships from Stock to 5 Days, WI 53050  Dated 04-2025  (2LBS) H 4" L 8" W 4" Box - 0 $968.20
23	1	GRD-GR012409 Gleason Hubbell Slip Ring Cover Kit  Part 012409  aka GR012409  8 Inches Long  With Ring Seal  Ships in 5 Days, WI 53050  Dated 04-2024 - 0 $835.55 GRD-GR012410 Gleason Hubbell Slip Ring Cover Kit  Part 012410  aka GR012410  Extends 10.5 Inches to Cover the Slip Ring  For Slip Rings 47 &   Powder Coat Polyester Orange  Origin USA  Export Code 8479909596  Ships in 5 Days, WI 53050  Dated 01-2023  (10LBS) H 6" L 12" W 6" Box - 0 $913.70 GRD-GR012411 Gleason Hubbell Slip Ring Cover  Part 012441  aka GR012411  13 Inches Long  Color Orange  Ships in 5 Days, WI 53050  Dated 12-2021  (12LBS) - 2 $1,047.30 GRD-GR012412 Gleason Hubbell Cover Kit  Part 012412  aka GR012412  Cable Reel Slip Ring Cover  15.5 Inches Long  Color Orange  Ships in 4 Weeks, WI 53050  Dated 01-2023  (12LBS) H 10" L 16" W 10" Box - 0 $1,078.10 GRD-GR012413 Gleason Hubbell Slip Ring Cover Kit  Part 012413   aka GR012413   20.5 Inches Long  Ship in 10 Days, WI 53050  Dated 12-2022  (10LBS) - 1 $1,228.30 GRD-GR012414 Gleason Hubbell Slip Ring Cover Kit  Part 012414  aka GR012414  28.5 Inches Long  Ships in 10 Days, WI 53050  Dated 02-26-2022  (12LBS) - 1 $1,687.95
24	1	GRD-GR012458	Gleason Hubbell Housing Seal Ring  Part 012458  aka GR012458  Slip Ring Housing Seal  Origin USA  Export Code 4016935010  Ships in 15 Days, WI 53050  Dated 04-2025  (1LB)	-	0	$86.30

Gleason "S-14" Parts List (PDF)
