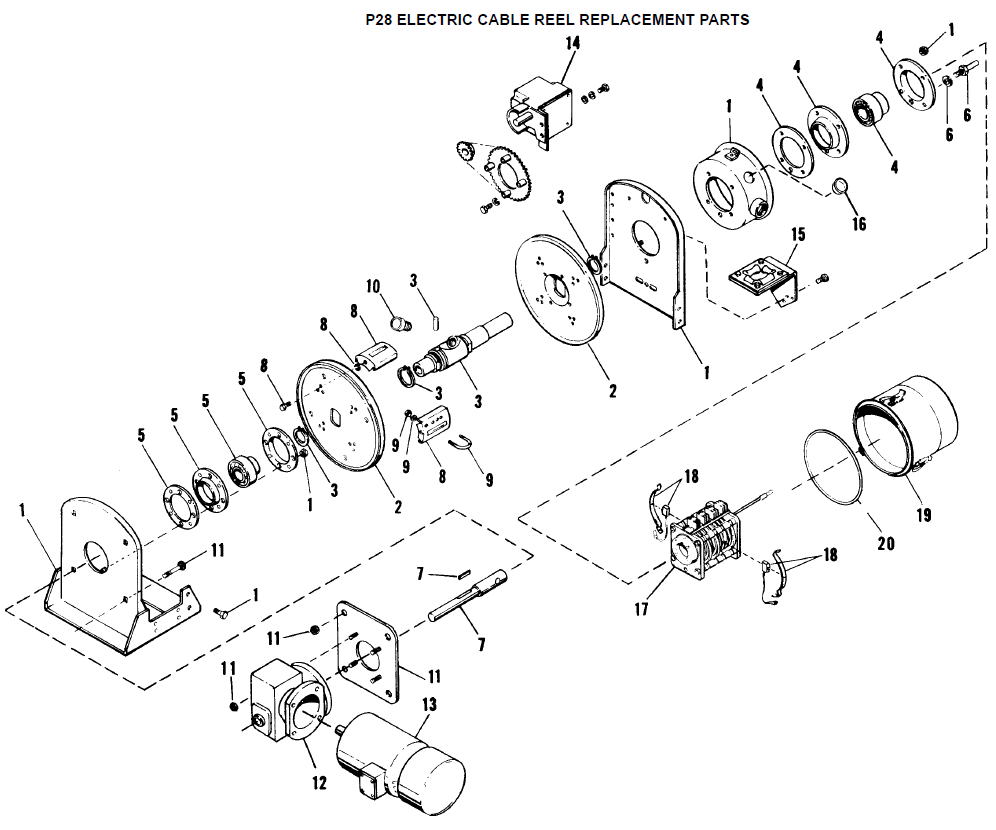

Gleason Pendant Station Reels P28 Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 1 GRD-012395 Gleason SPL FRAME ASSY S28 4/14 - 0 $2,421.00
2 1 GRD-012408 Gleason SPL DISCS S28 - 0 $1,183.55
3 1 GRD-012398 Gleason Main Shaft Assembly
For an S28 Cable Reel
Part GRD-012398
aka GR012398
- 0 $1,112.10
4 1 GRD-012402 Gleason Hubbell Bearing Kit
Part GR012402
2 Inch Bore
Includes 2 Housings & Gasket
Item 4, 1 per reel
Part GRD-012402
aka GR012402
[NSN 3120-01-234-0350]
Ships in 5 Days
Dated 1/18
- 1 $146.25
5 1 GRD-012401 Gleason Cable Reel Part S14
Bearing Kit
1.75 Inch Bore
Includes 2 Housings & Gasket
Item 5, 1 per reel
Part GRD-012401
aka GR012401
[NSN 3120-01-233-0577]
Ships in 3 Days
- 0 $316.15
6 1 GRD-012456 Gleason Cable Reel Part S14
Drive Stud Kit
Item 6, 1 per reel
Part GRD-012456
aka GR012456
Ships in 3 Days
- 1 $63.55
7 1
GRD-015745 N/A - 0 N/A N/A N/A
GRD-015746 N/A - 0 N/A N/A N/A
8 1
GRD-012418 Gleason SPL WRAPPER KIT 7.0W X SM.DIA - 0 $277.70
GRD-012419 Gleason SPL WRAPPER KIT 7.0W X LG.DIA - 0 $287.90
9 1
GRD-012444 Gleason Hubbell Clamp Kit
Part GR012444
Cable Clamp Kit
Item 9, 1 per reel
U Bolt & Hardware
For Cable Diameters 0.38 to 0.74 Inches
aka GR012444
[NSN 5340-01-342-1000]
Ships in 5 Days
Dated 1/18
(1LB) H 4" L 5" W 4" Box
- 0 $10.65
GRD-012445 Gleason Cable Clamp Kit
Part 012445
Cable Clamp Kit
Item 9, 1 per reel
U Bolt & Hardware
For Cable Diameters 0.75 to 1.11 Inches
aka GR012445
Ships in 5 Days
Dated 1/18
- 0 $13.20
GRD-012446 Gleason Cable Reel Part
Cable Clamp Kit
Item 9, 1 per reel
U Bolt & Hardware
For Cable Diameters 1.25 to 1.50 Inches
Part GRD-012446
aka GR012446
Ships in 3 Days
- 0 $12.75
10 1
GRD-012459 N/A - 0 N/A N/A N/A
GRD-012460 Gleason Cable Reel Part
Cable Connector
Item 10, 1 per reel
Round Cable Entrance
For Cable Diameters 0.50 to 0.62 Inches
Part GRD-012460
aka GR012460
Ships in 3 Days
(1LB)
- 0 $94.55
GRD-012461 Gleason Cable Reel Part
Cable Connector
Item 10, 1 per reel
Round Cable Entrance
For Cable Diameters 0.62 to 0.75 Inches
Part GRD-012461
aka GR012461
Ships in 3 Days
(1LB)
- 1 $98.05
GRD-012462 Gleason Cable Reel Part
Cable Connector
Item 10, 1 per reel
Round Cable Entrance
For Cable Diameters 0.75 to 0.88 Inches
Part GRD-012462
aka GR012462
Ships in 3 Days
(1LB)
- 0 $136.85
GRD-012463 Gleason Cable Reel Part
Cable Connector
Item 10, 1 per reel
Round Cable Entrance
For Cable Diameters 0.88 to 1.00 Inches
Part GRD-012463
aka GR012463
Ships in 3 Days
(1LB)
- 0 $144.25
GRD-012464 Gleason Cable Reel Part
Cable Connector
Item 10, 1 per reel
Round Cable Entrance
For Cable Diameters 1.00 to 1.12 Inches
Part GRD-012464
aka GR012464
Ships in 3 Days
(1LB)
- 0 $147.85
GRD-012465 Gleason Cable Reel Part
Cable Connector
Item 10, 1 per reel
Round Cable Entrance
For Cable Diameters 1.12 to 1.25 Inches
Part GRD-012465
aka GR012465
Ships in 3 Days
(1LB)
- 0 $153.20
GRD-012466 Gleason Cable Reel Part
Cable Connector
Item 10, 1 per reel
Round Cable Entrance
For Cable Diameters 1.25 to 1.38 Inches
Part GRD-012466
aka GR012466
Ships in 3 Days
(1LB)
- 1 $170.30
GRD-012467 Gleason Cable Reel Part
Cable Connector
Item 10, 1 per reel
Round Cable Entrance
For Cable Diameters 1.38 to 1.50 Inches
Part GRD-012467
aka GR012467
Ships in 3 Days
(1LB)
- 0 $258.75
11 1
GRD-015747 N/A - 0 N/A N/A N/A
GRD-015748 N/A - 0 N/A N/A N/A
GRD-015749 N/A - 0 N/A N/A N/A
GRD-015750 N/A - 0 N/A N/A N/A
12 1
GRD-700349 N/A - 0 N/A N/A N/A
GRD-700350 N/A - 0 N/A N/A N/A
GRD-700351 Gleason REDUCER,.75HP,56C FACE MOUNT - 0 $2,798.85
GRD-700352 N/A - 0 N/A N/A N/A
13 1
GRD-700353 N/A - 0 N/A N/A N/A
GRD-700354 N/A - 0 N/A N/A N/A
GRD-700355 N/A - 0 N/A N/A N/A
GRD-700356 N/A - 0 N/A N/A N/A
14 1 GRD-012092 Gleason Cable Reel Part
Rotary Limit Switch Assembly
Part GRD-012092
aka GR012092
[NSN 5930-01-270-2022]
- 0 $1,741.00
15 1 GRD-012087 N/A - 0 N/A N/A N/A
16 1 GRD-012457 Gleason Part
Button Plug
Part GRD-012457
aka GR012457
[NSN 5340-01-311-1525]
(1LB)
- 0 $4.40
17 1
GRD-012285 Gleason Slip Ring Assembly
Part GR012285
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
2 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 23
[Amazon]
Dated 1/18
(8LBS) H 5" L 10" W 5" Box
1 $1,174.70
GRD-012286 Gleason Slip Ring Assembly
Part GR012286
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
3 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 33
Dated 1/18
(9LBS) H 5" L 10" W 5" Box
1 $174.00
GRD-012287 Gleason Slip Ring Assembly
Part GR012287
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 43
Part GRD-012287
aka GR012287
[Amazon]
[NSN 5977-01-311-2203]
Dated 1/18
(10LBS) H 5" L 10" W 5" Box
- 1 $1,324.85
GRD-012288 Gleason Slip Ring Assembly
Part GR012288
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
6 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 63
Part GRD-012288
aka GR012288
[Amazon]
[NSN 5977-01-186-6639]
Dated 1/18
(10LBS) H 5" L 12" W 5" Box
- 0 $1,537.75
GRD-012289 Gleason Slip Ring Assembly 83
Part GR012289
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
8 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 83
Part GRD-012289
aka GR012289
[Amazon]
[NSN 5977-01-265-5103]
Dated 1/18
(10LBS) H 5" L 12" W 5" Box
0 $1,751.55
GRD-012290 Gleason Slip Ring Assembly
Part GR012290
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
10 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 103
aka GR012290
[NSN 5977-01-252-6406]
Dated 1/18
(12LBS) H 5" L 14" W 5" Box
- 0 $1,993.20
GRD-012291 Gleason Slip Ring Assembly
Part GR012291
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
12 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 123
aka GR012291
Dated 1/18
(14LBS) H 5" L 16" W 5" Box
- 0 $2,235.35
GRD-012292 Gleason Slip Ring Assembly
Part GR012292
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
14 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 143
aka GR012292
Dated 1/18
(16LBS) H 5" L 18" W 5" Box
- 0 $2,428.90
GRD-012293 Gleason Slip Ring Assembly
Part GR012293
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
16 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 163
aka GR012293
(18LBS) H 5" L 20" W 5" Box
- 0 $2,775.90
GRD-012294 Gleason Slip Ring Assembly
Part GR012294
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
20 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 203
aka GR012294
[NSN 5977-01-362-0979]
Dated 1/18
(20LBS) H 5" L 22" W 5" Box
- 0 $3,608.50
GRD-012295 Gleason Slip Ring Assembly
Part GR012295
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
24 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 243
aka GR012294
[NSN 5977-01-371-8300]
Dated 1/18
(22LBS) H 5" L 24" W 5" Box
- 0 $4,052.95
GRD-012296 Gleason Slip Ring Assembly
Part GR012296
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
30 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 303
aka GR012296
[NSN 5977-01-181-3136
Dated 1/18
(24LBS) H 5" L 26" W 5" Box
- 0 $4,740.60
GRD-012297 Gleason Slip Ring Assembly
Part GR012297
Completely Self Contained Ring Assembly
35 AMP Continuous Duty
36 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 363
aka GR012297
Dated 1/18
(26LBS) H 5" L 28" W 5" Box
- 0 $5,587.15
GRD-012298 Gleason Slip Ring Assembly
Part GR012298
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
2 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 27
aka GR012298
Dated 1/18
(12LBS) H 6" L 8" W 6" Box
1 $1,217.70
GRD-012299 Gleason Slip Ring Assembly
Part GR012299
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
3 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
# 37
aka GR012299
Dated 1/18
(13LBS) H 6" L 10" W 6" Box
1 $1,317.45
GRD-012300 Gleason Hubbell Slip Ring Assembly
Part 012300
aka GR012300
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#47
[NSN 5977-01-317-4238]
Dated 1-19
(10LBS) H 5" L 10" W 5" Box
0 $1,486.30
GRD-012376 Gleason Slip Ring Assembly
Part GR012376
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#47
aka GR012376
[NSN 5977-01-317-4238]
Dated 1/18
(10LBS) H 5" L 10" W 5" Box
- 0 $1,580.55
GRD-012377 Gleason Slip Ring Assembly
Part GR012377
Completely Self Contained Ring Assembly
75 AMP Continuous Duty
8 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#87
aka GR012377
Dated 1/18
(10LBS) H 5" L 10" W 5" Box
- 0 $1,694.85
GRD-037194 Gleason Slip Ring Assembly
Part GRD-GR037194
A Completely Self Contained Assembly
125 Amps Continuous Duty
2 Conductor / Circuits
600 Volts Maximum
2 Inch Bore Diameter
aka # 212, 012301 037194
[Amazon] Dated 1/18
(7LBS) H 6" L 8" W 6" Box
0 $2,105.05
GRD-037294 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
125 AMP Continuous Duty
3 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#312
Part GRD-037294
aka GR037294
(10LBS) H 6" L 10" W 6" Box
- 1 $2,185.50
GRD-037295 Gleason Slip Ring Assembly
Completely Self Contained Ring Assembly
125 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#412
Part GRD-037295
aka GR037295
(10LBS) H 6" L 10" W 6" Box
[Amazon]
0 $2,379.15
GRD-012304 Gleason Slip Ring Assembly
Part GR012304
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
2 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
aka GR012304 & #220
Dated 1/18
(10LBS) H 6" L 10" W 6" Box
0 $1,900.50
GRD-012381 Gleason Slip Ring Assembly
Part GR012381
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
3 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#320
aka GR012381
Dated 1/18
(12LBS) H 6" L 10" W 6" Box
- 0 $2,292.40
GRD-012382 Gleason Hubbell Slip Ring Assembly
Part GR012382
aka GR012382
#420 090065
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
4 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#420
Ships from Stock to 5 Work Days
Dated 3-19
2 $2,857.55
GRD-012383 Gleason Slip Ring Assembly
Part GR012383
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
6 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#620
aka GR012383
Dated 1/18
(16LBS) H 6" L 14" W 6" Box
- 0 $3,658.20
GRD-012384 Gleason Slip Ring Assembly
Part GR012384
Completely Self Contained Ring Assembly
200 AMP Continuous Duty
8 Independent Circuits / Conductors
600 Volts Maximum
2 Inch Bore Diameter
#820
aka GR012384
Dated 1/18
(18LBS) H 6" L 16" W 6" Box
- 0 $4,586.75
18 1
GRD-012440 Gleason Hubbell Brush Kit
Part GR012440
aka GR012440
Includes:
4, Brushes
4, Brush Fingers / Springs & Instructions
For a 3 or 4 conductors 35 AMP Slip Ring
[NSN 5977-01-182-7784]
[Updated 1/18]
[Ships in 5 Days]
(2LBS) H 4" L 8" W 4" Box
- 0 $280.40
GRD-012441 Gleason Hubbell Brush Kit
Part GR012441
aka GR012441
For a 75 Amp Slip Ring Assembly
Includes:
4 Brushes
4, Spring Fingers & Instructions
[NSN 5977-01-317-4284]
Ships from Stock to 5 Days
Dated 1-19
(2LBS) H 4" L 8" W 4" Box"
6 $589.60
GRD-012443 Gleason Brush Kit
Part GRD-012443
For a 200 Amp Slip Ring Assembly
Includes:
4 Brushes / 2 Brushes per Ring
Spring Fingers & Instructions
Enough brushes & spring fingers for a 2 conductor slip ring assembly
aka GR012443
Dated 4/17
Ships in 5 days OS
(2LBS) H 4" L 8" W 4" Box
- 0 $568.75
19 1
GRD-012409 Gleason Cable Reel Part
Slip Ring Cover Kit
Extends 8 Inches to Cover the Slip Ring
Part GRD-012409
aka GR012409
Ships in 5 Days
(10LBS) H 6" L 12" W 6" Box
- 0 $473.00
GRD-012410 Gleason Cable Reel Part
Slip Ring Cover Kit
Part GRD-012410
Extends 10.5 Inches to Cover the Slip Ring
aka GR012410
(10LBS) H 6" L 12" W 6" Box 3/17
[Amazon]
0 $483.03
GRD-012411 Gleason Hubbell Slip Ring Cover
Part 012411
aka GR012411
Slip Ring Cover Kit
Extends 13 Inches to Cover the Slip Ring
Color Orange
Ships in 5 Days
Dated 1-19
(12LBS) H 6" L 14" W 6" Box
- 0 $682.95
GRD-012412 Gleason Cable Reel Part
Slip Ring Cover Kit
Extends 15.5 Inches to Cover the Slip Ring
Part GRD-012412
aka GR012412
Ships in 5 Days
(12LBS) H 6" L 17" W 6" Box
- 0 $610.30
GRD-012413 Gleason Cable Reel Part
Slip Ring Cover Kit
Extends 20.5 Inches to Cover the Slip Ring
Part GRD-012413
aka GR012413
Ships in 5 Days
(12LBS) H 6" L 22" W 6" Box
- 0 $695.35
GRD-012414 Gleason Cable Reel Part
Slip Ring Cover Kit
Extends 28.5 Inches to Cover the Slip Ring
Part GRD-012414
aka GR012414
Ships in 5 Days
(12LBS) H 6" L 30" W 6" Box
- 0 $955.50
20 1 GRD-012458 Gleason Cable Reel Part
Slip Ring Cover Seal
Part GRD-012458
aka GR012458
Ships in 5 Days
(1LB) H 4" L 5" W 4" Box
- 3 $48.90
Gleason "P28" Parts List (PDF)
Gleason Reels Replacement Parts

    Gleason Spring Operated Electric Cable-Master Reels Replacement Parts
  • C14, C16, C19 Reels Manufactured Before 1-1-2010 • C14, C16, C19 Reels Manufactured After 1-1-2010

    Gleason Hose-Master Reels Replacement Parts
  • HM14, HM19 Manufactured Before 1-1-2010 • HM14-4 • HM14-6 • HM14-8 • HM16-6 • HM16-8 • HM19-4 • HM19-6 • HM19-8

    Gleason Series J Hose Reels Replacement Parts
  • GL15-23 Roller Guide • GL15-24 Roller Guide • GL20-07 Roller Guide • GL20-08 Roller Guide • J35A Reel • J60A Reel • J62A-KM Reel
  • J80A Reel • J100A Reel

    Gleason Series K Hose Reels Replacement Parts
  • K-18 • K-21 • K-24 • K-28 • K-32

    Gleason Mill Duty Electric Cable Reels Replacement Parts
  • MMD21 Direct • MMD21 Gear, Manufactured before July 1, 1999 • MMD21 Gear, Manufactured after July 1, 1999 • MMD24 Direct
  • MMD24 Gear, Manufactured before July 1, 1999 • MMD24 Gear, Manufactured after July 1, 1999 • MMD28 Direct
  • MMD28 Gear, Manufactured before July 1, 1999 • MMD28 Gear, Manufactured after July 1, 1999 • MMD32 Direct • MMD32 Gear

    Gleason Pendant Station Reels Replacement Parts
  • P14 • P16 • P18 • P21 • P24 • P28

    Gleason Spring Operated Hose Reels Replacement Parts
  • R-35 • R-45

    Gleason S-Reels Replacement Parts
  • S-14 • S-16 • S-18 • S-21 Direct • S-21 Gear • S-24 Direct • S-24 Gear • S-28 Direct • S-28 Gear • S-32 Direct • S-32 Gear

    Gleason Series SHO Special Magnet Reels Replacement Parts
  • SHO-101A • SHO-Cable • SHO-Hose • SHO-Twin

    Gleason Gear Drive Electric Cable Reels Replacement Parts
  • SM-21 • SM-24 • SM-28 • SM-32

    Gleason Direct Drive Hazardous Duty Electric Cable Reels Replacement Parts
  • SZ-16 • SZ-18 • SZ-21 • SZ-24 • SZ-28 • SZ-32

    Gleason TMR Series Electric Cable Reels Replacement Parts
  • TMR

    Gleason Universal Cable/Hose Reels Replacement Parts
  • UE-18 • UE-21 • UE-24 • UE-28 • UE-32 • UH-18 • UH-21 • UH-24-Chain • UH-24-Direct • UH-28-Chain • UH-28-Direct
  • UH-32-Chain • UH-32-Direct • UH-60 / UH-62

    Gleason Direct Drive Welding Reels Replacement Parts
  • W14 / W19

    Gleason WB Series Continuous Contact Reels Replacement Parts
  • WB60-25 • WB75-25 • WB100-60 • WB100-100-60

Secure Online Order



Secure Online Order

part numbers available for
online order

Shopping Cart
Empty
Checkout is secure

All products are covered by a $1,000,000 liability insurance:
Click to view the Certificate

Products Available From Stock
Free shipping via UPS Ground (continental US only, motor freight excluded)

Web Site Features

Part Number Lookup

Enter at least three characters of a Gleason part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


Search scope:
This web site only
All BPI web sites

Formal PDF Quotation

To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

Your shopping cart is kept intact and you can still check out at a later time.
Engineered Products


Gleason
Engineered Products


  • Cable Reels:
    • Cable-Master Reels
    • Series "S" & "WB" Reels
    • Series "MMD" & "SM" Reels
    • Series "SHO" & "TMR" Reels
    • Welding Cable Reels
    • Low Profile Level Wind Reels
    • Vari-Matic Drive Reels
    • Motor-Driven Pendant Station
      Reels
    • Emergency Vehicle Reels
    • Series "SZ" Reels
    • Main Spring Assemblies
    • Cable Reel Roller Guides
    • Heavy Duty Reeling Systems
  • Festoon Systems:
    • Series Track Master
    • Series Beam Master
    • Series I-132
    • Series PDQ 300 I-Beam
    • Series PDQ 450 & 700 I-Beam
    • Series RTG 450 & 700 I-Beam
    • Series T-50 Curved Rail
  • Hose Reels:
    • Hose Reels
  • PowerTrak Drag Chains:
    • PowerFlex
    • PowerTube
    • Type "GRP" Molded Nylon
    • Type "E" & "EF" Steel Link
    • Type "G" Nylon & Aluminum
  • Conductor Bar, Electrification:
    • Conductor Bar, Electrification
  • Slip Ring Assemblies:
    • Compact & Rota-Power
    • Compact 30 Amp & 55 Amp
    • Compact 30 Amp (DR)
    • Rota-Power 35 Amp
    • Rota-Power 75 Amp
    • Rota-Power 125 Amp
    • Rota-Power 200 Amp
Pre-Engineered Products


Gleason
Pre-Engineered Products


  • Cable Reels:
    • "A" Cast Aluminum Reels
    • "ER" Hoist Reels
    • "G" Heavy Duty Cable Reels
  • Cord Reels:
    • Compact Cord Reels
    • Industrial Duty Cord Reels
    • Outlets, Lamps & Receptacles
  • Festoon Kits & Components:
    • Wire Rope, Nylon, Cable/Hose
    • Wire Rope, Nylon, Flat Cables
    • Wire Rope, Steel, Flat Cables
    • Optional Components
    • C-Rail C25, Components
    • C-Rail C35, Flat Cable
    • C-Rail C35, Round Cable
    • C-Rail C35, Components
    • T-Track Heavy Duty
    • Kellems Cord Grips
    • Kellems Support Grips
    • NEMA 12 Electrical Boxes
    • Cable Connectors
    • Universal Cable Grips
    • Festoon Cable
    • Adjustable Beam Trolleys
    • Festoon Pendants
  • Hose Reels:
    • "GHA" Industrial Duty Reels
    • "EZ" Pull Heavy Duty Reels
    • "HC" Heavy Duty Reels
    • "EZ9" Clean Air Reels
    • "HH" Hand Crank Reels
    • "UH" Universal Reels
  • PowerTrak Kits:
    • PowerTrak Kits
  • Limit Switches, Geared Rotary:
    • 54 Series
    • 55 Series, NEMA 4
    • 55 Series, NEMA 7
  • Static Discharge Products:
    • Cable & Accessories
    • Static Discharge Reels
  • Tool Balancer Reels:
    • Accessories
    • Tool Balancer Reels

Workplace Solutions


Hubbell
Workplace Solutions


  • Booms and Jibs
  • Mobile Carts
  • Qualtech Computer Enclosures
  • Qualtech Document Stands
  • Tool Balancers
  • Workstations
  • Complete List & Catalog
  • Hubbell WS Idea Sheets
  • WS Replacement Parts
Gleason Replacement Parts


Gleason Replacement Parts

  • PowerTrak Replacement Parts

  • Reel Replacement Parts
Entertainment Solutions


Gleason
Entertainment Solutions


From performing arts and concerts to studio and television, Gleason Reel has the right products for the right application. These events typically include a variety of learning and entertainment activities, performances, plays and general assemblies, or large-scale seminars, theatre productions and award ceremonies. These spaces must accommodate the latest audio, visual, and lighting technology while providing maximum reliability to ensure that the show goes on.


  • Entertainment Products Guide
Manuals and Information


Gleason
Manuals and Information


  • Manuals and Information


This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com
  Federal ID #: 34-1473351
  CAGE Code: 1QTP8
  DUNS# 14-748-2392
  Download: Form W-9
Supplier of Industrial Brake Parts Since 1985
