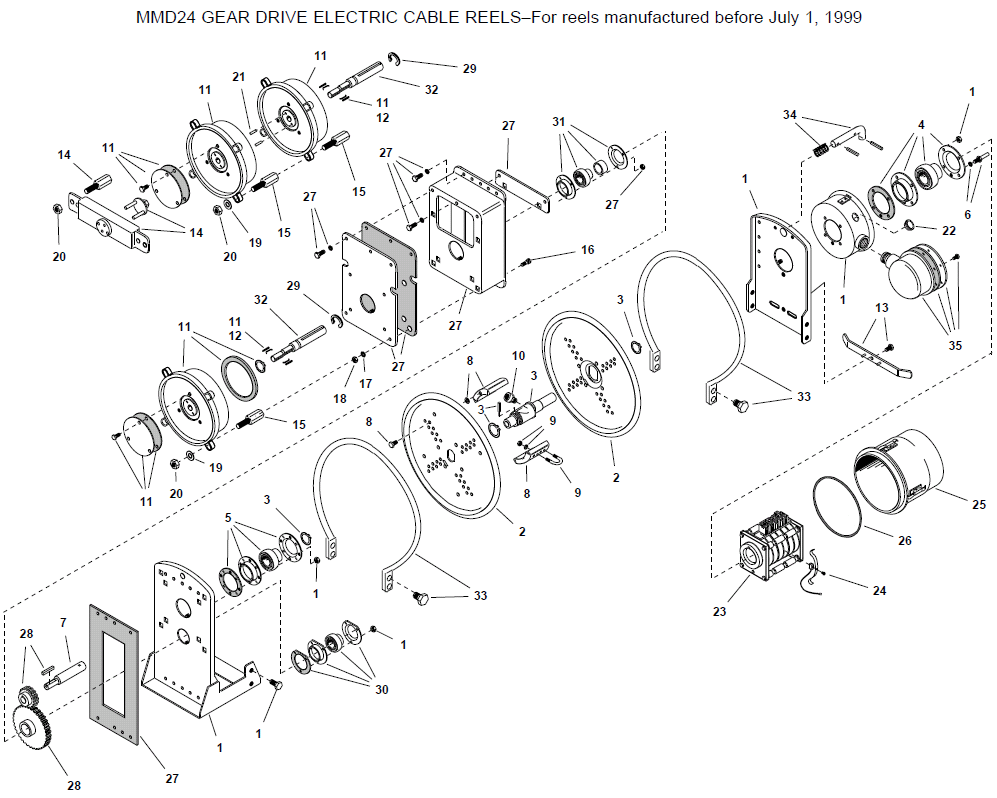

Gleason Mill Duty Gear Drive Electric Cable Reels MMD24 (Manufactured before July 1, 1999) Replacement Parts

No	Qty Req'd	Part Number	Description	Picture	Stock Qty	Price Each	Qty Ord'd	Update Cart
1	1	GRD-GR012394	Gleason SPL FRAME ASSY S24 (aka GR012394) Ships in 5 days	-	0	$3,998.65
2	1	GRD-GR012407	Gleason SPL DISCS S24 (aka GR012407) Ships in 5 days	-	0	$1,990.35
3	1	GRD-GR012397	Gleason Hubbell Main Shaft  Part 0123978  aka GR012397  Main Shaft Assembly  For S16 18 21 & 24 Cable Reels  Ships in 5 Days, WI 53050  Dated 01-2021	-	0	$1,570.80
4	1	GRD-GR012402	Gleason Hubbell Bearing Kit  Part 012402  aka GR012402  Origin USA  Export Code 8482105056  Ships in 5 Days, WI 53050  Dated 01-2023	-	0	$238.90
5	1	GRD-GR012401	Gleason Hubbell Bearing Kit SPL  Part 012401  aka GR012401  1.75 Inch Bore  Ships in 5 Days, WI 53050  Dated 01-2021	-	0	$558.45
6	1	GRD-GR012456	Gleason SPL DRIVE STUD KIT (aka GR012456) Ships in 5 days	-	1	$112.20
7	1	GRD-GR012138 Gleason SHAFT,STUB,#8 PITCH GEARS (aka GR012138) Ships in 5 days - 0 $285.05 GRD-GR012207 Gleason SHAFT,STUB,#6 PITCH GEARS (aka GR012207) Ships in 5 days - 0 $351.25
8	1	GRD-GR012416 Gleason SPL WRAPPER KIT 5.0W X SM.DIA (aka GR012416) Ships in 5 days - 0 $462.25 GRD-GR012417 Gleason SPL WRAPPER KIT 5.0W X LG.DIA (aka GR012417) Ships in 5 days - 0 $481.25
9	1	GRD-GR012444 Gleason Hubbell Clamp Kit  Part GR012444   Cable Clamp Kit  Item 9, 1 per reel  U Bolt & Hardware  For Cable Diameters 0.38 to 0.74 Inches  aka GR012444  [NSN 5340-01-342-1000]  Ships in 5 Days  Dated 1/18  (1LB) H 4" L 5" W 4" Box - 0 $17.45 GRD-GR012445 Gleason SPL CABLE CLAMP KIT .75-1.11 (aka GR012445) Ships in 5 days - 0 $21.60 GRD-GR012446 Gleason SPL CABLE CLAMP KIT 1.25-1.50 (aka GR012446) Ships in 5 days - 0 $22.50
10	1	GRD-GR012459 N/A - 0 N/A N/A N/A GRD-GR012460 Gleason Hubbell Cable Connector  Part 012460  aka GR012460  For Cables with a Diameter Range OF:  0.50 to 0.52 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $166.95 GRD-GR012461 Gleason Hubbell Cable Connector  Part 012461  aka GR012461  For Cables with a Diameter Range OF:  0.62 to 0.75 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 1 $173.20 GRD-GR012462 Gleason Hubbell Cable Connector  Part 012462  aka GR012462  For Cables with a Diameter Range OF:  0.75 to 0.88 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $241.70 GRD-GR012463 Gleason Hubbell Cable Connector  Part 012463  aka GR012463  For Cables with a Diameter Range OF:  0.88 to 1.00 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $254.85 GRD-GR012464 Gleason Hubbell Cable Connector  Part 012464  aka GR012464  For Cables with a Diameter Range OF:  1.00 to 1.12 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $261.15 GRD-GR012465 Gleason Hubbell Cable Connector  Part 012465  aka GR012465  For Cables with a Diameter Range OF:  1.12 to 1.25 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $270.55 GRD-GR012466 Gleason Hubbell Cable Connector  Part 012466  aka GR012466  For Cables with a Diameter Range OF:  1.25 to 1.38 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023ys - 0 $300.80 GRD-GR012467 Gleason Hubbell Cable Connector  Part 012467  aka GR012467  For Cables with a Diameter Range OF:  1.38 to 1.50 Inches  Ships in 3 to 5 Days, WI 53050  Dated 01-2023 - 0 $457.00
11	A/R	GRD-GR017052 Gleason Hubbell Main Spring  Part 017052  aka GR017052  Main Spring Kit  100 Series  Reverse Rotation  Includes Containerized Safety Spring Assembly  Snap Ring  2 Pawls  2 Pawl - Leaf Springs  Hub Cover & Cover Gasket  Ships in 5 Days, WI 53050  Dated 01-2023  (68LBS) H 4" L 13" W 13" Box - 0 $1,570.75 GRD-GR017051 Gleason Hubbell Main Spring Kit  Part 017051  aka GR017051  100 Series Main Spring  For Standard Rotation Reels  Includes:  Containerized Safety Spring  Snap Ring  2 Pawls  2 Pawl Leaf Springs  Hub Cover & Cover Gasket  NSN 5360-01-297-1022 Gov #  Ships in 5 Days, WI 53050  Dated 01-2025  (68LBS) H 4" L 13" W 13" Box - 31 $1,570.75
12	A/R	GRD-GR012427	Gleason SPL PAWL KIT 100 SPRING (aka GR012427) Ships in 5 days	-	0	$98.35
13	1	GRD-GR017191	Gleason SPL TENSION WRENCH 100 SPRING (aka GR017191) Ships in 5 days	-	0	$156.25
14	1	GRD-GR032804	Gleason Hubbell Wrench  Part 032804  aka GR032804  Pretension Wrench Kit  For a 100- Series Spring   Ships from Stock to 10 Days, WI 53050  Dated 07-2021	-	2	$561.15
15	A/R	GRD-GR017055	Gleason Hubbell Stud Bolt Extension Kit  Part 017055  aka GR017055  4 Inches Long  Origin USA  Export Code 7318155090  Ships in 5 Days, WI 53050  Dated 07-2022  (2LBS)	-	4	$70.40
16	A/R	GRD-GR016182	N/A	-	0	N/A	N/A	N/A
17	A/R	GRD-GR021291	N/A	-	0	N/A	N/A	N/A
18	A/R	GRD-GR100959	N/A	-	0	N/A	N/A	N/A
19	A/R	GRD-GR101211	N/A	-	0	N/A	N/A	N/A
20	A/R	GRD-GRP06-03	N/A	-	0	N/A	N/A	N/A
21	A/R	GRD-GR021762	Gleason Hubbell Pin Kit  Part 021762  aka GR021762  Hub lock Pin Kit  100 Series Spring  Origin USA  Export Code 7318190000  Ships in 5 Days, WI 53050  Dated 07-2022  (1LB) H 4" L 6" W 4" Box	-	0	$19.30
22	1	GRD-GR012457	Gleason SPL BUTTON PLUG (aka GR012457) Ships in 5 days	-	0	$7.75
23	1	GRD-GR012285 Gleason Slip Ring Assembly  Part aka GR012285  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  2 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 23  Dated 1/18  (8LBS) H 5" L 10" W 5" Box - 1 $1,690.60 GRD-GR012286 Gleason Slip Ring Assembly  Part aka GR012286  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  3 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 33  Dated 1/18  (9LBS) H 5" L 10" W 5" Box - 1 $1,792.95 GRD-GR012287 Gleason Hubbell Slip Ring Assembly  Part 012287  aka GR012287  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  4 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 43  NSN 5977-01-311-2203 Gov  Ships in 10 Days, WI 53050  Dated 04-2024  (10LBS) H 5" L 10" W 5" Box 0 $1,905.95 GRD-GR012288 Gleason Hubbell Slip Ring Assembly  Part 012288  aka GR012288  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  6 Independent Circuits - Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 63  NSN 5977-01-186-6639 Gov#  Dated 01-2021  (10LBS) H 5" L 12" W 5" Box - 0 $2,213.00 GRD-GR012289 Gleason Hubbell Slip Ring Assembly 83  Part 012289  aka GR012289  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  8 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 83  NSN 5977-01-265-5103 Gov  Ships in 10 Days, WI 53050  Dated 01-2021  (9LBS) H 5" L 12" W 5" Box - 0 $2,520.70 GRD-GR012290 Gleason Hubbell Slip Ring Assembly  Part 012290  aka GR012290  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  10 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 103  Gov # NSN 5977-01-252-6406  Ships in 15 Days, WI 53050  Dated 01-2025  (12LBS) H 5" L 14" W 5" Box - 0 $2,868.45 GRD-GR012291 Gleason Hubbell Slip Ring Assembly  Part 012291  aka GR012291  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  12 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 123  Ship sin 10 Days, WI 53050  Dated 1-2020 - 0 $3,216.95 GRD-GR012292 Gleason Hubbell Slip Ring Assembly  Part 012292  aka GR012292  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  14 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 143  Ships in 5 Days, WI 53050  Dated 01-2021  (13LBS) H 5" L 18" W 5" Box - 0 $3,495.60 GRD-GR012293 Gleason Hubbell Slip Ring Assembly  Part 012293  aka GR012293  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  16 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 163  Ships in 10 Days, WI 53050  Dated 10-2024  (18LBS) H 5" L 20" W 5" Box - 0 $276.72 GRD-GR012294 Gleason Hubbell Slip Ring Assembly  Part 012294  aka GR012294  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  20 Independent Circuits - Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 203  NSN 5977-01-362-0979 US Gov #  Dated 01-2023  Ships in 2 to 3 Weeks, WI 53030  (20LBS) H 5" L 22" W 5" Box - 0 $5,193.15 GRD-GR012295 Gleason Hubbell Slip Ring Assembly  Part 012295  aka GR012295  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  24 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 243  [NSN 5977-01-371-8300]  Ships in 10 Days, WI 53050  Dated 1-19  (22LBS) H 5" L 24" W 5" Box - 0 $5,832.80 GRD-GR012296 Gleason Hubbell Slip Ring Assembly  Part 012296  aka GR012296  Completely Self Contained Ring Assembly  35 AMP Continuous Duty  30 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  # 303  [NSN 5977-01-181-3136]  Dated 1-19  (24LBS) H 5" L 26" W 5" Box - 0 $6,822.30 GRD-GR012297 N/A - 0 N/A N/A N/A GRD-GR012298 Gleason Hubbell Slip Ring Assembly  Part RP075-02  aka GR012298  ROTA-POWER Self Contained Slip Ring   75 Amp Continuous Duty  Must be derated for multiple conductors  2 Conductor / Circuits  600 Volt Maximum  8 AWG Lead Wires for connection  2 Inch ID Drive Collar with double screws  6.38 Inch, Assembled Length Dim "A"  Part # 27   Normally a Stock Item @ BPI  Ships from Stock to 10 Days   Dated 08-2023  (10LBS) H 7" L 10" W 8" Box - 0 $1,752.40 GRD-GR012299 Gleason Hubbell Slip Ring Assembly  Part 012299 # 37  aka GR012299  Self Contained Ring Assembly  75 AMP Continuous Duty  3 Independent Circuits - Conductors  600 Volts Maximum  2 Inch Bore Diameter  Dated 01-2023  (13LBS) H 6" L 10" W 6" Box 0 $1,896.00 GRD-GR012300 Gleason Hubbell Slip Ring Assembly SR  Part 012300  aka GR012300  Completely Self Contained Ring Assembly  75 AMP Continuous Duty  4 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  Normally a Stock Item @ BPI  (10LBS) H 12" L 16" W 16" Box - 0 $2,008.50 GRD-GR012376 Gleason Hubbell Slip Ring Assembly  Part 012376  aka GR012376  Completely Self Contained Ring Assembly  75 AMP Continuous Duty  4 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #47  NSN 5977-01-317-4238 US GOV #  Dated 07-2020  (10LBS) H 5" L 10" W 5" Box - 2 $2,274.60 GRD-GR012377 Gleason Hubbell Slip Ring Assembly  Part 012377  aka GR012377  Completely Self Contained Ring Assembly  75 AMP Continuous Duty  8 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #87  Dated 1-19  (10LBS) H 5" L 10" W 5" Box - 0 $2,439.05 GRD-GR037194 Gleason Hubbell Slip Ring Assembly   Part 037194  aka GR037194  A Completely Self Contained Assembly  2 Conductor - Circuits  125 Amps Continuous Duty  600 Volts Maximum  2 Inch Bore Diameter  # 212  Origin USA  Export Code 8536908585  Normally a Stock Item @ BPI  Ships from Stock to 15 Days  Dated 01-2024  (7LBS) H 6" L 8" W 6" Box 0 $3,118.30 GRD-GR037294 Gleason COLLECTOR ASSEMBLY 312 (aka GR037294) Ships in 10 days - 1 $3,501.55 GRD-GR037295 Gleason Hubbell Slip Ring Assembly RP  Part 037295 #412  aka GR037295  ROTA-POWER Self Contained Slip Ring   125 Amp Continuous Duty  Must be derated for multiple conductors  4 Conductor - Circuits  600 Volt Maximum  4 AWG Lead Wires for connection  2 Inch ID Drive Collar with double set screws & a woodruff key  10.38 Inch Assemble Length Dim "A"  Origin USA  Export Code 8536908585  Ships in 15 Days, WI 53050 - 0 $3,811.85 GRD-GR012304 Gleason Hubbell Slip Ring Assembly  Part 012304  aka GR012304  Completely Self Contained Ring Assembly  200 AMP Continuous Duty  2 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  aka #220  Dated 07-2021  (8LBS) H 6" L 10" W 6" Box - 0 $2,735.10 GRD-GR012381 Gleason Hubbell Slip Ring Assembly  Part 012381  aka GR012381  Completely Self Contained Ring Assembly  200 AMP Continuous Duty  3 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #320  Dated 1-19  (12LBS) H 6" L 10" W 6" Box - 0 $3,299.10 GRD-GR012382 Gleason Hubbell Slip Ring Assembly  Part 012382  aka GR012382  #420 090065  Completely Self Contained Ring Assembly  200 AMP Continuous Duty  4 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #420  Normally a Stock Item @ BPI  Ships from Stock to 5 Days  Dated 06-2024 3 $3,861.45 GRD-GR012383 Gleason Hubbell Slip Ring Assembly  Part 012383  aka GR012383  Completely Self Contained Ring Assembly  75 AMP Continuous Duty  6 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #62  Ships in 5 Weeks, WI   Dated 08-2021  (10LBS) H 6" L 12" W 6" Box - 0 $5,264.70 GRD-GR012384 Gleason Hubbell Slip Ring Assembly  Part 012384  aka GR012384  Completely Self Contained Ring Assembly  200 AMP Continuous Duty  8 Independent Circuits / Conductors  600 Volts Maximum  2 Inch Bore Diameter  #820  Dated 1-19  (18LBS) H 6" L 16" W 6" Box - 0 $6,601.05
24	A/R	GRD-GR012440 Gleason Hubbell Brush Kit  Part 012440  aka GR012440  For a 3 or 4 Conductors 35 AMP Slip Ring  Includes:  4, Brushes  4, Brush Fingers - Springs & Instructions  NSN 5977-01-182-7784 US Gov #  Origin USA  Export Code 8545200000  Ships in 5 Days, WI 53050  Dated 01-2024 - 0 $457.95 GRD-GR012441 Gleason Hubbell Brush Kit  Part 012441  aka GR012441  For a 75 Amp Slip Ring Assembly  Includes:  4 Brushes  4, Spring Fingers & Instructions  NSN 5977-01-317-4284 Gov #  Ships from Stock to 5 Days  Dated 08-2021  (2LBS) H 4" L 8" W 4" Box" - 0 $904.15 GRD-GR012443 Gleason Hubbell Brush Kit  Part 012443  aka GR012443  For a 200 Amp Slip Ring Assembly  Includes:  4 Brushes / 2 Brushes per Ring  Spring Fingers & Instructions  Enough brushes & spring fingers for a 2 conductor slip ring assembly  Origin USA  Export Code 8545200000  Ships from Stock to 5 Days, WI 53050  Dated 04-2025  (2LBS) H 4" L 8" W 4" Box - 0 $968.20
25	1	GRD-GR012409 Gleason Hubbell Slip Ring Cover Kit  Part 012409  aka GR012409  8 Inches Long  With Ring Seal  Ships in 5 Days, WI 53050  Dated 04-2024 - 0 $835.55 GRD-GR012410 Gleason Hubbell Slip Ring Cover Kit  Part 012410  aka GR012410  Extends 10.5 Inches to Cover the Slip Ring  For Slip Rings 47 &   Powder Coat Polyester Orange  Origin USA  Export Code 8479909596  Ships in 5 Days, WI 53050  Dated 01-2023  (10LBS) H 6" L 12" W 6" Box - 0 $913.70 GRD-GR012411 Gleason Hubbell Slip Ring Cover  Part 012441  aka GR012411  13 Inches Long  Color Orange  Ships in 5 Days, WI 53050  Dated 12-2021  (12LBS) - 2 $1,047.30 GRD-GR012412 Gleason Hubbell Cover Kit  Part 012412  aka GR012412  Cable Reel Slip Ring Cover  15.5 Inches Long  Color Orange  Ships in 4 Weeks, WI 53050  Dated 01-2023  (12LBS) H 10" L 16" W 10" Box - 0 $1,078.10 GRD-GR012413 Gleason Hubbell Slip Ring Cover Kit  Part 012413   aka GR012413   20.5 Inches Long  Ship in 10 Days, WI 53050  Dated 12-2022  (10LBS) - 1 $1,228.30 GRD-GR012414 Gleason Hubbell Slip Ring Cover Kit  Part 012414  aka GR012414  28.5 Inches Long  Ships in 10 Days, WI 53050  Dated 02-26-2022  (12LBS) - 1 $1,687.95
26	1	GRD-GR012458	Gleason Hubbell Housing Seal Ring  Part 012458  aka GR012458  Slip Ring Housing Seal  Origin USA  Export Code 4016935010  Ships in 15 Days, WI 53050  Dated 04-2025  (1LB)	-	0	$86.30
27	1	GRD-GR012420 N/A - 0 N/A N/A N/A GRD-GR012421 N/A - 0 N/A N/A N/A
28	1	GRD-GR014445 Gleason Hubbell Gear Kit  Part 014445  aka GR014445  Ration "A"   Origin USA  Export Code 8483905090  Ships in 15 Days, WI 53050  Dated 01-2023 - 0 $3,042.55 GRD-GR014472 N/A - 0 N/A N/A N/A GRD-GR014446 Gleason GEAR KIT ASSEMBLY RATIO"C" (aka GR014446) Ships in 10 days - 0 N/A N/A N/A GRD-GR012468 N/A - 0 N/A N/A N/A GRD-GR012469 N/A - 0 N/A N/A N/A GRD-GR012470 Gleason GEAR KIT ASSEMBLY RATIO"F" (aka GR012470) Ships in 15 days - 0 $3,042.55 GRD-GR012471 N/A - 0 N/A N/A N/A GRD-GR012473 N/A - 0 N/A N/A N/A GRD-GR012474 N/A - 0 N/A N/A N/A
29	1	GRD-GR118320	Gleason RET RING #5103-125-ZC ZINC CLE (aka GR118320) Ships in 7 days	-	0	$6.65
30	1	GRD-GR012399	Gleason SPL BEARING KIT 1.25 BORE (aka GR012399) Ships in 10 days	-	0	$281.70
31	1	GRD-GR012400	Gleason Hubbell Bearing Kit SPL  Part 012400  aka GR012400  Bearing Kit Gearbox  Ships in 5 Days, WI 53050  Dated 01-2021	-	0	$281.70
32	1	GRD-GR012217 Gleason SHAFT,STUB,GEARED,1001,STD (aka GR012217) Ships in 5 days - 0 $959.45 GRD-GR01221701 Gleason SHAFT,STUB,GEARED,1001,REV (aka GR01221701) Ships in 10 days - 0 $959.45 GRD-GR012218 Gleason SHAFT,STUB,GEARED,1002,STD (aka GR012218) Ships in 5 days - 0 $1,081.70 GRD-GR01221801 Gleason SHAFT,STUB,GEARED,1002,REV (aka GR01221801) Ships in 5 days - 0 $1,081.70 GRD-GR012219 Gleason SHAFT,STUB,GEARED,1003,STD (aka GR012219) Ships in 5 days - 0 $1,204.75 GRD-GR01221901 Gleason SHAFT,STUB,GEARED,1003,REV (aka GR01221901) Ships in 5 days - 0 $1,204.75 GRD-GR012220 Gleason SHAFT,STUB,GEARED,1004,STD (aka GR012220) Ships in 5 days - 0 $1,327.80 GRD-GR01222001 Gleason SHAFT,STUB,GEARED,1004,REV (aka GR01222001) Ships in 5 days - 0 $1,327.80
33	1	GRD-GR012097	Gleason Hubbell Hoop Guide Assembly  Part 012097  aka GR012097  For a S24 & MMD24 Cable Reels  Guide Centers the Cable on the Spool  Ships in 10 Days, WI 53050  Dated 01-2021	-	2	$596.00
34	1	GRD-GR012091	Gleason Hubbell Spool Lock Assembly  Part 012091  aka GR012091  Spool Lock Assembly  For S16 through S32 Cable Reels  Secures the spool facilitating cable reel maintenance  NSN 5342-01-341-2171 Gov #  Ships in 10 Days, WI 53050  Dated 07-2022  (6LBS) H 6" L 8" W 6" Box	-	1	$202.00
35	1	GRD-GR015659	N/A	-	0	N/A	N/A	N/A

Gleason "MMD24-Gear-Older" Parts List (PDF)
