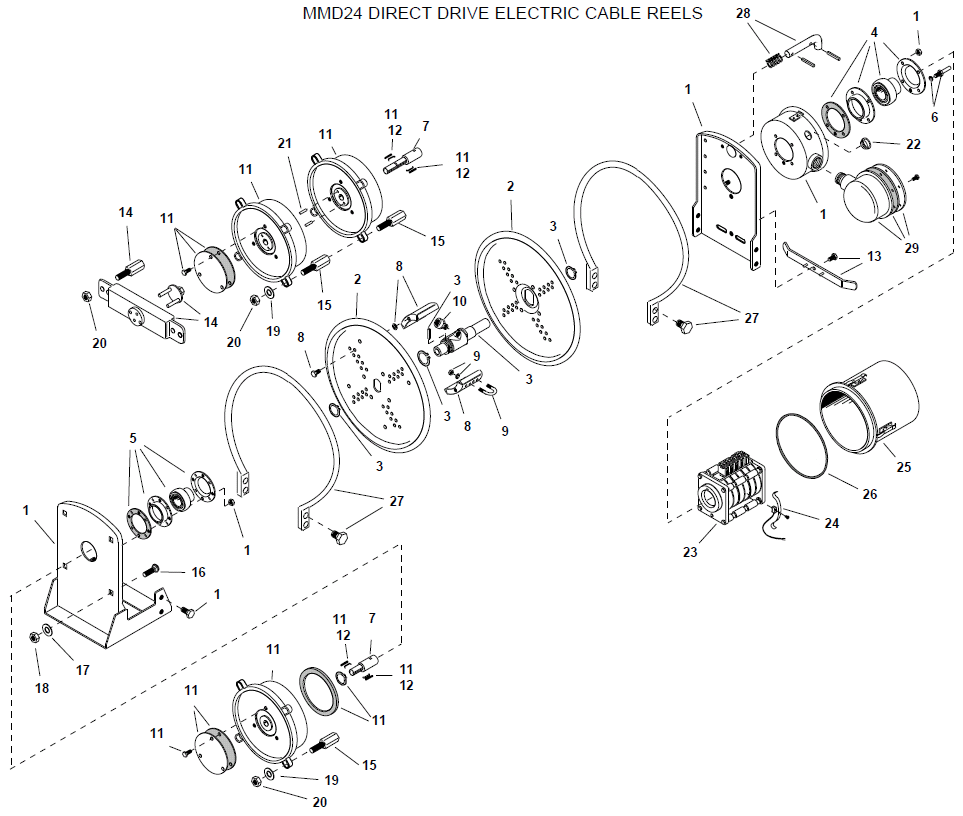

Gleason Mill Duty Direct Drive Electric Cable Reels MMD24 Replacement Parts

No Qty
Req'd		 Part
Number		 Description Picture Stock
Qty		 Price
Each		 Qty
Ord'd		 Update
Cart
1 1 GRD-012394 Gleason SPL FRAME ASSY S24 - 0 $2,263.70
2 1 GRD-012407 Gleason SPL DISCS S24 - 0 $1,126.80
3 1 GRD-012397 Gleason SPL MAIN SHAFT ASSY S16-S24 4/14 [NSN 3040-01-132-7274] - 0 $889.30
4 1 GRD-012402 Gleason Hubbell Bearing Kit Part GR012402 2 Inch Bore Includes 2 Housings & Gasket Item 4, 1 per reel Part GRD-012402 aka 012402 [NSN 3120-01-234-0350] Ships in 5 Days Dated 1/18 - 1 $146.25
5 1 GRD-012401 Gleason Cable Reel Part S14 Bearing Kit 1.75 Inch Bore Includes 2 Housings & Gasket Item 5, 1 per reel Part GRD-012401 aka GR012401 [NSN 3120-01-233-0577] Ships in 3 Days - 0 $316.15
6 1 GRD-012456 Gleason Cable Reel Part S14 Drive Stud Kit Item 6, 1 per reel Part GRD-012456 aka GR012456 Ships in 3 Days - 1 $63.55
7 1
GRD-012213 Gleason Stub Shaft for a 100 Series Spring, Standard Rotation with single spring stack on a direct drive reel - 0 $439.95
GRD-01221301 Gleason Stub Shaft for a 100 Series Spring, Reverse Rotation with a single spring stack on a direct drive reel - 0 $422.75
GRD-012214 Gleason Stub Shaft. Stub Shaft for 100 Series Springs, Standard Rotation, for a 2 spring stack, direct drive reel - 0 $517.30
GRD-01221401 Gleason Stub Shaft. Stub Shaft for 100 Series Springs, Reverse Rotation, for a 2 spring stack, direct drive reel - 1 $517.30
GRD-012371 Gleason Stub Shaft 100 Series Springs Qty 3 Spring Pack Direct Drive Standard Rotation Part GRD-012371 aka GR012371 - 0 $469.70
GRD-01237101 Gleason Stub Shaft 100 Series Springs Qty 3 Spring Pack Direct Drive Reverse Rotation Part GRD-01237101 aka GR01237101 - 0 $608.20
GRD-014619 Gleason Shaft. Stub Shaft for a 4 Spring Reel - 0 $668.15
GRD-01461901 Gleason SHAFT,STUB,DIRECT,1004,REV - 0 $668.15
8 1
GRD-012416 Gleason SPL WRAPPER KIT 5.0W X SM.DIA - 0 $261.75
GRD-012417 Gleason SPL WRAPPER KIT 5.0W X LG.DIA - 0 $272.45
9 1
GRD-012444 Gleason Hubbell Clamp Kit Part GR012444 Cable Clamp Kit Item 9, 1 per reel U Bolt & Hardware For Cable Diameters 0.38 to 0.74 Inches aka GR012444 [NSN 5340-01-342-1000] Ships in 5 Days Dated 1/18 (1LB) H 4" L 5" W 4" Box - 0 $10.65
GRD-012445 Gleason Cable Clamp Kit Part 012445 Cable Clamp Kit Item 9, 1 per reel U Bolt & Hardware For Cable Diameters 0.75 to 1.11 Inches aka GR012445 Ships in 5 Days Dated 1/18 - 0 $13.20
GRD-012446 Gleason Cable Reel Part Cable Clamp Kit Item 9, 1 per reel U Bolt & Hardware For Cable Diameters 1.25 to 1.50 Inches Part GRD-012446 aka GR012446 Ships in 3 Days - 0 $12.75
10 1
GRD-012459 N/A - 0 N/A N/A N/A
GRD-012460 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 0.50 to 0.62 Inches Part GRD-012460 aka GR012460 Ships in 3 Days (1LB) - 0 $94.55
GRD-012461 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 0.62 to 0.75 Inches Part GRD-012461 aka GR012461 Ships in 3 Days (1LB) - 1 $98.05
GRD-012462 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 0.75 to 0.88 Inches Part GRD-012462 aka GR012462 Ships in 3 Days (1LB) - 0 $136.85
GRD-012463 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 0.88 to 1.00 Inches Part GRD-012463 aka GR012463 Ships in 3 Days (1LB) - 0 $144.25
GRD-012464 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 1.00 to 1.12 Inches Part GRD-012464 aka GR012464 Ships in 3 Days (1LB) - 0 $147.85
GRD-012465 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 1.12 to 1.25 Inches Part GRD-012465 aka GR012465 Ships in 3 Days (1LB) - 0 $153.20
GRD-012466 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 1.25 to 1.38 Inches Part GRD-012466 aka GR012466 Ships in 3 Days (1LB) - 1 $170.30
GRD-012467 Gleason Cable Reel Part Cable Connector Item 10, 1 per reel Round Cable Entrance For Cable Diameters 1.38 to 1.50 Inches Part GRD-012467 aka GR012467 Ships in 3 Days (1LB) - 0 $258.75
11 A/R
GRD-017051 Gleason Hubbell Main Spring Kit Part GR017051 100 Series Main Spring For Standard Rotation Reels Includes: Containerized Safety Spring Snap Ring 2 Pawls 2 Pawl Leaf Springs Hub Cover & Cover Gasket aka 017051 [NSN 5360-01-297-1022] [Amazon] Dated 1/18 Ships in 5 days, WI 53050 (65LBS) H 4" L 13" W 13" Box 34 $1,432.50
GRD-017052 Gleason Spring Part GR017052 Main Spring Kit 100 Series Reverse Rotation Includes Containerized Safety Spring Assembly Snap Ring 2 Pawls 2 Pawl / Leaf Springs Hub Cover & Cover Gasket aka GR017052 [Amazon] Dated 1/18 (65LBS) H 4" L 13" W 13" Box - 0 $1,432.50
12 A/R GRD-012427 Gleason Pawl Kit for a 100 Series Spring [NSN 3040-01-316-6511] - 0 $55.65
13 1 GRD-017191 Gleason Wrench Part GR017191 Spanner Wrench For 100 Series Main Springs Part GR017052 and others Dated 4/17 Ships from stock WI - 0 $91.75
14 1 GRD-032804 Gleason Wrench. Pre-Tension Wrench with Socket for the 100 Series Spring (10LBS) 5/9 - 4 $317.75
15 A/R GRD-017055 Gleason Bolt Kit Part GRD-017055 Stud Bolt Extension Kit For Spring Motors For 100 Series Main Springs Includes 4 Bolts 4 Inches Long aka GR017055 [NSN 5307-01-341-3562] Dated 1/18 Ships in 5 days (1LBS) H 4" L 6" W 4" Box - 4 $43.10
16 A/R GRD-016182 N/A - 0 N/A N/A N/A
17 A/R GRD-021291 N/A - 0 N/A N/A N/A
18 A/R GRD-100959 Gleason Part Hex NUT 0.500-13 Part GRD-100959 aka GR100959 [NSN 5310-01-341-2107] (1LB) - 0 $5.20
19 A/R GRD-101211 Gleason Part Flat Washer 1/2 Inch Part GRD-101211 aka GR101211 (1LB) - 0 $3.90
20 A/R GRD-P06-03 Gleason Part Lock Nut Part GRD-P06-03 aka GRP06-03 [NSN 5310-01-066-4059] (1LB) - 0 $5.20
21 A/R GRD-021762 Gleason Hubbell Hub Lock Pin Kit Part GR021762 For 100 Series Main Springs 2 pieces aka 021762 Dated 1/18 Ships in 3 days, WI 53050 (1LB) H 4" L 5" W 4" Box - 0 $11.80
22 1 GRD-012457 Gleason Part Button Plug Part GRD-012457 aka GR012457 [NSN 5340-01-311-1525] (1LB) - 0 $4.40
23 1
GRD-012285 Gleason Slip Ring Assembly Part GR012285 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 2 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 23 [Amazon] Dated 1/18 (8LBS) H 5" L 10" W 5" Box 1 $1,174.70
GRD-012286 Gleason Slip Ring Assembly Part GR012286 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 3 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 33 Dated 1/18 (9LBS) H 5" L 10" W 5" Box 1 $174.00
GRD-012287 Gleason Slip Ring Assembly Part GR012287 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 43 Part GRD-012287 aka GR012287 [Amazon] [NSN 5977-01-311-2203] Dated 1/18 (10LBS) H 5" L 10" W 5" Box - 1 $1,324.85
GRD-012288 Gleason Slip Ring Assembly Part GR012288 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 6 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 63 Part GRD-012288 aka GR012288 [Amazon] [NSN 5977-01-186-6639] Dated 1/18 (10LBS) H 5" L 12" W 5" Box - 0 $1,537.75
GRD-012289 Gleason Slip Ring Assembly 83 Part GR012289 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 8 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 83 Part GRD-012289 aka GR012289 [Amazon] [NSN 5977-01-265-5103] Dated 1/18 (10LBS) H 5" L 12" W 5" Box 0 $1,751.55
GRD-012290 Gleason Slip Ring Assembly Part GR012290 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 10 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 103 aka 012290 [NSN 5977-01-252-6406] Dated 1/18 (12LBS) H 5" L 14" W 5" Box - 0 $1,993.20
GRD-012291 Gleason Slip Ring Assembly Part GR012291 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 12 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 123 aka 012291 Dated 1/18 (14LBS) H 5" L 16" W 5" Box - 0 $2,235.35
GRD-012292 Gleason Slip Ring Assembly Part GR012292 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 14 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 143 aka 012292 Dated 1/18 (16LBS) H 5" L 18" W 5" Box - 0 $2,428.90
GRD-012293 Gleason Slip Ring Assembly Part GR012293 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 16 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 163 aka 012293 (18LBS) H 5" L 20" W 5" Box - 0 $2,775.90
GRD-012294 Gleason Slip Ring Assembly Part GR012294 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 20 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 203 aka 012294 [NSN 5977-01-362-0979] Dated 1/18 (20LBS) H 5" L 22" W 5" Box - 0 $3,608.50
GRD-012295 Gleason Slip Ring Assembly Part GR012295 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 24 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 243 aka 012294 [NSN 5977-01-371-8300] Dated 1/18 (22LBS) H 5" L 24" W 5" Box - 0 $4,052.95
GRD-012296 Gleason Slip Ring Assembly Part GR012296 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 30 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 303 aka 012296 [NSN 5977-01-181-3136 Dated 1/18 (24LBS) H 5" L 26" W 5" Box - 0 $4,740.60
GRD-012297 Gleason Slip Ring Assembly Part GR012297 Completely Self Contained Ring Assembly 35 AMP Continuous Duty 36 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 363 aka 012297 Dated 1/18 (26LBS) H 5" L 28" W 5" Box - 0 $5,587.15
GRD-012298 Gleason Slip Ring Assembly Part GR012298 Completely Self Contained Ring Assembly 75 AMP Continuous Duty 2 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 27 aka 012298 [Amazon] Dated 1/18 (12LBS) H 6" L 8" W 6" Box 1 $1,217.70
GRD-012299 Gleason Slip Ring Assembly Part GR012299 Completely Self Contained Ring Assembly 75 AMP Continuous Duty 3 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter # 37 aka 012299 [Amazon] Dated 1/18 (13LBS) H 6" L 10" W 6" Box 1 $1,317.45
GRD-012300 Gleason Slip Ring Assembly Part GR012300 Completely Self Contained Ring Assembly 75 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #47 aka 012300 [NSN 5977-01-317-4238] [Amazon] Dated 1/18 (10LBS) H 5" L 10" W 5" Box 0 $1,395.60
GRD-012376 Gleason Slip Ring Assembly Part GR012376 Completely Self Contained Ring Assembly 75 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #47 aka 012376 [Amazon] [NSN 5977-01-317-4238] Dated 1/18 (10LBS) H 5" L 10" W 5" Box - 0 $1,580.55
GRD-012377 Gleason Slip Ring Assembly Part GR012377 Completely Self Contained Ring Assembly 75 AMP Continuous Duty 8 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #87 aka 012377 Dated 1/18 (10LBS) H 5" L 10" W 5" Box - 0 $1,694.85
GRD-037194 Gleason Slip Ring Assembly Part GRD-GR037194 A Completely Self Contained Assembly 125 Amps Continuous Duty 2 Conductor / Circuits 600 Volts Maximum 2 Inch Bore Diameter aka # 212, 012301 037194 [Amazon] Dated 1/18 (7LBS) H 6" L 8" W 6" Box 0 $2,105.05
GRD-037294 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 125 AMP Continuous Duty 3 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #312 Part GRD-037294 aka GR037294 (10LBS) H 6" L 10" W 6" Box - 1 $2,185.50
GRD-037295 Gleason Slip Ring Assembly Completely Self Contained Ring Assembly 125 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #412 Part GRD-037295 aka GR037295 (10LBS) H 6" L 10" W 6" Box [Amazon] 0 $2,379.15
GRD-012304 Gleason Slip Ring Assembly Part GR012304 Completely Self Contained Ring Assembly 200 AMP Continuous Duty 2 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter aka 012304 & #220 [Amazon] Dated 1/18 (10LBS) H 6" L 10" W 6" Box 0 $1,900.50
GRD-012381 Gleason Slip Ring Assembly Part GR012381 Completely Self Contained Ring Assembly 200 AMP Continuous Duty 3 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #320 aka 012381 Dated 1/18 (12LBS) H 6" L 10" W 6" Box - 0 $2,292.40
GRD-012382 Gleason Slip Ring Assembly Part GR012382 Completely Self Contained Ring Assembly 200 AMP Continuous Duty 4 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #420 aka 012382 aka 090065 [Amazon] Dated 1/18 2 $2,683.15
GRD-012383 Gleason Slip Ring Assembly Part GR012383 Completely Self Contained Ring Assembly 200 AMP Continuous Duty 6 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #620 aka 012383 [Amazon] Dated 1/18 (16LBS) H 6" L 14" W 6" Box - 0 $3,658.20
GRD-012384 Gleason Slip Ring Assembly Part GR012384 Completely Self Contained Ring Assembly 200 AMP Continuous Duty 8 Independent Circuits / Conductors 600 Volts Maximum 2 Inch Bore Diameter #820 aka 012384 Dated 1/18 (18LBS) H 6" L 16" W 6" Box - 0 $4,586.75
24 A/R
GRD-012440 Gleason Hubbell Brush Kit Part GR012440 aka 012440 Includes: 4, Brushes 4, Brush Fingers / Springs & Instructions For a 3 or 4 conductors 35 AMP Slip Ring [NSN 5977-01-182-7784] [Updated 1/18] [Ships in 5 Days] (2LBS) H 4" L 8" W 4" Box - 0 $280.40
GRD-012441 Gleason Brush Kit Part GR012441 For a 75 Amp Slip Ring Assembly Includes: 4 Brushes 4, Spring Fingers & Instructions aka GR012441 [NSN 5977-01-317-4284] [Amazon] (2LBS) H 4" L 8" W 4" Box" 6 $553.60
GRD-012443 Gleason Brush Kit Part GRD-012443 For a 200 Amp Slip Ring Assembly Includes: 4 Brushes / 2 Brushes per Ring Spring Fingers & Instructions Enough brushes & spring fingers for a 2 conductor slip ring assembly aka GR012443 Dated 4/17 Ships in 5 days OS (2LBS) H 4" L 8" W 4" Box - 0 $568.75
25 1
GRD-012409 Gleason Cable Reel Part Slip Ring Cover Kit Extends 8 Inches to Cover the Slip Ring Part GRD-012409 aka GR012409 Ships in 5 Days (10LBS) H 6" L 12" W 6" Box - 0 $473.00
GRD-012410 Gleason Cable Reel Part Slip Ring Cover Kit Part GRD-012410 Extends 10.5 Inches to Cover the Slip Ring aka GR012410 (10LBS) H 6" L 12" W 6" Box 3/17 [Amazon] 0 $483.03
GRD-012411 Gleason Cable Reel Part Slip Ring Cover Kit Extends 13 Inches to Cover the Slip Ring Part GRD-012411 aka GR012411 Ships in 5 Days (12LBS) H 6" L 14" W 6" Box - 0 $592.85
GRD-012412 Gleason Cable Reel Part Slip Ring Cover Kit Extends 15.5 Inches to Cover the Slip Ring Part GRD-012412 aka GR012412 Ships in 5 Days (12LBS) H 6" L 17" W 6" Box - 0 $610.30
GRD-012413 Gleason Cable Reel Part Slip Ring Cover Kit Extends 20.5 Inches to Cover the Slip Ring Part GRD-012413 aka GR012413 Ships in 5 Days (12LBS) H 6" L 22" W 6" Box - 0 $695.35
GRD-012414 Gleason Cable Reel Part Slip Ring Cover Kit Extends 28.5 Inches to Cover the Slip Ring Part GRD-012414 aka GR012414 Ships in 5 Days (12LBS) H 6" L 30" W 6" Box - 0 $955.50
26 1 GRD-012458 Gleason Cable Reel Part Slip Ring Cover Seal Part GRD-012458 aka GR012458 Ships in 5 Days (1LB) H 4" L 5" W 4" Box - 3 $48.90
27 1 GRD-012097 Gleason Hoop Guide Assembly Part GRD-012097 For a S24 / MMD24 Cable Reels Guide Centers the cable on the Spool aka GR012097 Dated 4/17 - 2 $361.00
28 1 GRD-012091 Gleason Spool Lock Part 12091 Spool Lock Assembly For S16 through S32 Cable Reels Secures the spool facilitating cable reel maintenance aka GR012091 [NSN 5342-01-341-2171] Dated 1/18 (6LBS) H 6" L 8" W 6" Box - 0 $128.00
29 1 GRD-015660 N/A - 0 N/A N/A N/A
