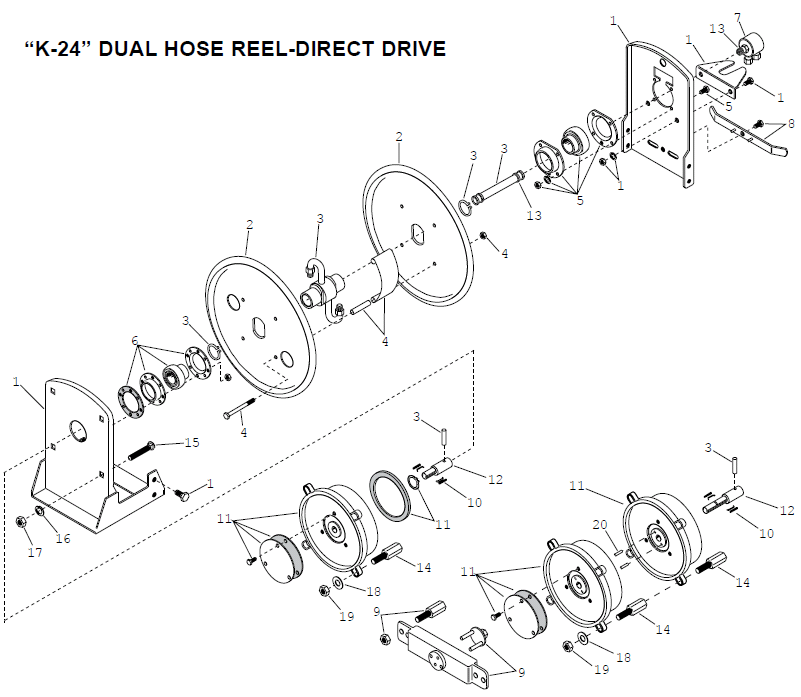

Gleason Series K Hose Reels K-24 Replacement Parts

No Qty
Req'd
Part
Number
Description Picture Stock
Qty
Price
Each
Qty
Ord'd
Update
Cart
1 1
GRD-GR015527 N/A - 0 N/A N/A N/A
GRD-GR015528 N/A - 0 N/A N/A N/A
GRD-GR015529 N/A - 0 N/A N/A N/A
GRD-GR015530 N/A - 0 N/A N/A N/A
2 1 GRD-GR015537 Gleason SPL DISCS K24 (aka GR015537) Ships in 5 days - 0 $1,362.85
3 1
GRD-GR015539 Gleason SPL SHAFT KIT KXX-XXXX-4 (aka GR015539) Ships in 5 days - 0 $926.35
GRD-GR015540 Gleason SPL SHAFT KIT KXX-XXXX-L (aka GR015540) Ships in 5 days - 0 $947.10
GRD-GR015541 Gleason SPL SHAFT KIT KXX-XXXX-8 (aka GR015541) Ships in 5 days - 0 $968.35
GRD-GR015542 Gleason MAIN SHAFT KIT KXX-XXXX-12 (aka GR015542) Ships in 20 days - 0 $960.95
4 1
GRD-GR015543 Gleason SPL WRAPPER KIT KXX-XXXX-4 (aka GR015543) Ships in 5 days - 0 $159.00
GRD-GR015544 Gleason SPL WRAPPER KIT KXX-XXXX-6 (aka GR015544) Ships in 5 days - 0 $168.75
GRD-GR015545 Gleason SPL WRAPPER KIT KXX-XXXX-8 (aka GR015545) Ships in 5 days - 0 $178.80
GRD-GR015546 N/A - 0 N/A N/A N/A
5 1 GRD-GR015547 Gleason SPL BEARING KIT-SWIVEL END (aka GR015547) Ships in 5 days - 0 $382.40
6 1 GRD-GR015548 Gleason SPL BEARING KIT-SPRING END (aka GR015548) Ships in 5 days - 0 $406.20
7 1
GRD-GR700079 N/A - 0 N/A N/A N/A
GRD-GR700080 N/A - 0 N/A N/A N/A
GRD-GR700081 N/A - 0 N/A N/A N/A
GRD-GR015549 N/A - 0 N/A N/A N/A
8 1
GRD-GR017190 Gleason Hubbell Tension Wrench
Part 017190
aka GR017190
Main Spring Tension Wrench
For 35 - 60 - 62 - & 75 Series Main Springs
Ships in 3 Days, WI 53050
Dated 1-2020
- 1 $105.60
GRD-GR017191 Gleason SPL TENSION WRENCH 100 SPRING (aka GR017191) Ships in 5 days - 0 $106.95
9 1
GRD-GR032805 Gleason Hubbell Pre-Tension Wrench Kit
Part GR032805
aka GR032805
Main Spring Pretension Wrench Kit
For 75/80 Series Main Springs
[Ships in 5 Days]
[Updated 1-19]
- 1 $246.70
GRD-GR032804 Gleason Hubbell Wrench
Part 032804
aka GR032804
Pretension Wrench Kit
For a 100- Series Spring
Ships from Stock to 10 Days, WI 53050
Dated 07-2021
- 4 $444.65
10 A/R
GRD-GR012425 Gleason Hubbell Pawl Kit
Part 012425
aka GR012425
Pawl Kit
For 35 & 60 Series Main Spring
Ships in 3 Days, WI 53050
Dated 01-2-20
- 0 $63.75
GRD-GR012426 Gleason Hubbell Pawl Kit for Main Springs
Part GR012426
aka GR012426
For 62, 75 or 80 Series Main Springs
Includes Pawl Pin, Pawl Leaf Spring, Pawl Clip & a Snap Ring
Item 12, 1 per reel
[NSN 3040-01-223-0631]
[Ships in 5 to 7 Days]
[Updated 1/19]
- 2 $66.25
GRD-GR012427 Gleason SPL PAWL KIT 100 SPRING (aka GR012427) Ships in 5 days - 0 $67.30
11 A/R
GRD-GR017041 Gleason Hubbell Spring
Part 017041
aka GR017041
Main Spring Kit
35 Series, Standard Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
NSN 5360-01-423-7121 Gov #
Ships in 5 Days, WI
Dated 01-2020
(30LBS) H 4" L 10" W 10" Box
- 3 $605.15
GRD-GR017042 Gleason Hubbell Main Spring Kit
Part GR017042
aka GR017042
35 Series Spring
For Reveres Rotation Cable Reel R
Includes:
Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
Dated 1-19
(20LBS) H 4" L 10" W 10" Box
- 0 $605.15
GRD-GR017043 Gleason SPARE SPRING KIT,60S (aka GR017043) Ships in 10 days - 2 $652.45
GRD-GR017044 Gleason SPARE SPRING KIT,60R (aka GR017044) Ships in 10 days - 0 $652.45
GRD-GR017045 Gleason Hubbell Main Spring Kit
Part 017045
aka GR017045
Main Spring Kit
62 Series for a Standard Rotation Cable Reel
Includes Containerized Safety Spring Assembly
Snap Ring
2, Pawls
2, Pawl Leaf Springs
Hub Cover & Cover Gasket
Ships in 5 Days, WI 53050
Dated 01-2021
(50LBS) H 4" L 10" W 10" Box
- 2 $917.90
GRD-GR017046 Gleason SPARE SPRING KIT,62R (aka GR017046) Ships in 10 days - 0 $917.90
GRD-GR017047 Gleason Hubbell Main Spring Kit
Part 017047
aka GR017041
75 Series Main Spring
For a Standard Rotation able Reel
Includes:
Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
Ships in 5 Days, WI 53050
Dated 01-2021
(50LBS) H 4" L 10" W 10" Box
- 6 $965.90
GRD-GR017048 Gleason Hubbell Main Spring Kit
Part GR017048
aka GR017048
75 Series, Reverse Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl / Leaf Springs
Hub Cover & Cover Gasket
[NSN 5360-01-224-2307]
Dated 1-19
(50LBS) H 4" L 10" W 10" Box
- 0 $965.90
GRD-GR017049 Gleason Hubbell Main Spring Kit
Part 017049
aka GR017049
80 Series Main Spring
For a "Standard Rotation" Cable Reel
Containerized Safety Spring Assembly
Includes:
Snap Ring
2 Pawls
2 Pawl Leaf Springs
Hub Cover & Cover Gasket
NSN 5360-01-148-5893
Ships in 5 Days, WI 53050
Dated 01-2021
(48LBS) H 4" L 10" W 10" Box
- 0 $1,060.20
GRD-GR017050 Gleason Spring. Main Spring Kit
Part GR017050
For a Reel with an 80 Series
Main Spring Designation
And the Reverse Rotation option
Includes Containerized Safety Spring Assembly
Snap Ring, 2 Pawls, 2 Pawl / Leaf Springs, Hub Cover & Cover Gasket
aka GR017050
[NSN 6105-01-189-3576] Dated 4/17
(50LBS) H 4" L 10" W 10" Box [1/2018]
- 0 $1,060.20
GRD-GR017051 Gleason Hubbell Main Spring Kit
Part 017051
aka GR017051
100 Series Main Spring
For Standard Rotation Reels
Includes:
Containerized Safety Spring
Snap Ring
2 Pawls
2 Pawl Leaf Springs
Hub Cover & Cover Gasket
NSN 5360-01-297-1022 Gov #
Ships in 5 Days, WI 53050
Dated 07-2021
(68LBS) H 4" L 13" W 13" Box
- 34 $1,570.75
GRD-GR017052 Gleason Hubbell Main Spring
Part 017052
aka GR017052
Main Spring Kit
100 Series
Reverse Rotation
Includes Containerized Safety Spring Assembly
Snap Ring
2 Pawls
2 Pawl - Leaf Springs
Hub Cover & Cover Gasket
Ships in 5 Days, WI 53050
Dated 01-2021
(68LBS) H 4" L 13" W 13" Box
- 0 $1,461.15
12 1
GRD-GR014200 Gleason STUB SHAFT STD. ROT. KXX-351 (aka GR014200) Ships in 5 days - 0 $482.55
GRD-GR01420001 N/A - 0 N/A N/A N/A
GRD-GR014202 Gleason STUB SHAFT STD. ROT. KXX-751 (aka GR014202) Ships in 10 days - 0 $519.15
GRD-GR01420201 Gleason STUB SHAFT REV. ROT. KXX-751 (aka GR01420201) Ships in 5 days - 0 $519.15
GRD-GR016306 Gleason SHAFT,STUB,DIRECT,STD,752,KRL (aka GR016306) Ships in 5 days - 0 $571.20
GRD-GR01630601 Gleason SHAFT,STUB,DIRECT,REV,752,KRL (aka GR01630601) Ships in 10 days - 0 $926.35
GRD-GR014204 Gleason STUB SHAFT STD. ROT. KXX-1001 (aka GR014204) Ships in 5 days - 0 $532.15
GRD-GR01420401 N/A - 0 N/A N/A N/A
13 1
GRD-GR015564 Gleason Hubbell Repair Kit
Part aka GR015564
Replacement Seal Kit
K-4, K-6 & K-8 Swivel Sizes
Standard Nitrile Seals
For Swivel Part #'s GR700079, GR700080 & GR700081
Ships in 5 Days, WI 53050
Dated 01-2020
(1LB) H 4" L 5" W 4" Box
- 0 $123.15
GRD-GR015565 Gleason REPL. SEAL KIT K-4/K-8 PROPYL (aka GR015565) Ships in 5 days - 0 $122.00
GRD-GR015566 Gleason REPL. SEAL KIT K-4/K-8 VIT0N (aka GR015566) Ships in 5 days - 0 $122.00
GRD-GR015567 Gleason SPL REPL SEAL KIT K12 (aka GR015567) Ships in 5 days - 0 $122.00
GRD-GR015568 Gleason SPL REPL SEAL KIT K12 (aka GR015568) Ships in 5 days - 0 $124.35
GRD-GR015569 N/A - 0 N/A N/A N/A
14 A/R
GRD-GR017054 Gleason STUD BOLT EXTENSION KIT-3.00"L (aka GR017054) Ships in 5 days - 2 $45.20
GRD-GR017055 Gleason STUD BOLT EXTENSION KIT-4.00"L (aka GR017055) Ships in 3 days - 4 $48.20
15 A/R GRD-GR016182 N/A - 0 N/A N/A N/A
16 A/R GRD-GR021291 N/A - 0 N/A N/A N/A
17 A/R GRD-GR100959 N/A - 0 N/A N/A N/A
18 A/R GRD-GR101211 N/A - 0 N/A N/A N/A
19 A/R GRD-GRP06-03 N/A - 0 N/A N/A N/A
20 A/R
GRD-GR021762 Gleason Hubbell Pin Kit
Part 021762
aka GR021762
Hub lock Pin Kit
Ships in 5 Days
Dated 07-2021
(1LB) H 4" L 6" W 4" Box
- 0 $15.30
GRD-GR021761 Gleason HUB LOCK PIN KIT-80 SPRINGS (aka GR021761) Ships in 3 days - 0 $7.00
Gleason "K-24" Parts List (PDF)
Gleason Reels Replacement Parts

    Gleason Spring Operated Electric Cable-Master Reels Replacement Parts
  • C14, C16, C19 Reels Manufactured Before 1-1-2010 • C14, C16, C19 Reels Manufactured After 1-1-2010

    Gleason Hose-Master Reels Replacement Parts
  • HM14, HM19 Manufactured Before 1-1-2010 • HM14-4 • HM14-6 • HM14-8 • HM16-6 • HM16-8 • HM19-4 • HM19-6 • HM19-8

    Gleason Series J Hose Reels Replacement Parts
  • GL15-23 Roller Guide • GL15-24 Roller Guide • GL20-07 Roller Guide • GL20-08 Roller Guide • J35A Reel • J60A Reel • J62A-KM Reel
  • J80A Reel • J100A Reel

    Gleason Series K Hose Reels Replacement Parts
  • K-18 • K-21 • K-24 • K-28 • K-32

    Gleason Mill Duty Electric Cable Reels Replacement Parts
  • MMD21 Direct • MMD21 Gear, Manufactured before July 1, 1999 • MMD21 Gear, Manufactured after July 1, 1999 • MMD24 Direct
  • MMD24 Gear, Manufactured before July 1, 1999 • MMD24 Gear, Manufactured after July 1, 1999 • MMD28 Direct
  • MMD28 Gear, Manufactured before July 1, 1999 • MMD28 Gear, Manufactured after July 1, 1999 • MMD32 Direct • MMD32 Gear

    Gleason Pendant Station Reels Replacement Parts
  • P14 • P16 • P18 • P21 • P24 • P28

    Gleason Spring Operated Hose Reels Replacement Parts
  • R-35 • R-45

    Gleason S-Reels Replacement Parts
  • S-14 • S-16 • S-18 • S-21 Direct • S-21 Gear • S-24 Direct • S-24 Gear • S-28 Direct • S-28 Gear • S-32 Direct • S-32 Gear

    Gleason Series SHO Special Magnet Reels Replacement Parts
  • SHO-101A • SHO-Cable • SHO-Hose • SHO-Twin

    Gleason Gear Drive Electric Cable Reels Replacement Parts
  • SM-21 • SM-24 • SM-28 • SM-32

    Gleason Direct Drive Hazardous Duty Electric Cable Reels Replacement Parts
  • SZ-16 • SZ-18 • SZ-21 • SZ-24 • SZ-28 • SZ-32

    Gleason TMR Series Electric Cable Reels Replacement Parts
  • TMR

    Gleason Universal Cable/Hose Reels Replacement Parts
  • UE-18 • UE-21 • UE-24 • UE-28 • UE-32 • UH-18 • UH-21 • UH-24-Chain • UH-24-Direct • UH-28-Chain • UH-28-Direct
  • UH-32-Chain • UH-32-Direct • UH-60 / UH-62

    Gleason Direct Drive Welding Reels Replacement Parts
  • W14 / W19

    Gleason WB Series Continuous Contact Reels Replacement Parts
  • WB60-25 • WB75-25 • WB100-60 • WB100-100-60

Secure Online Order



Secure Online Order

part numbers available for
online order

Shopping Cart
Empty
Checkout is secure

All products are covered by a $1,000,000 liability insurance:
Click to view the Certificate

Products Available From Stock
Free shipping via UPS Ground (continental US only, motor freight excluded)

Web Site Features

Part Number Lookup

Enter at least three characters of a Gleason part number to retrive the list of all documents (such as specifications, manuals, guides, drawings, etc.) from our web site, referencing this part number:

Part Number:


Search scope:
This web site only

Formal PDF Quotation

To obtain an instant formal printable PDF quotation use shopping cart and select "View PDF Quote", instead of checking out. Click here for instructions.

Your shopping cart is kept intact and you can still check out at a later time.
Engineered Products


Gleason
Engineered Products


  • Cable Reels:
    • Cable-Master Reels
    • Series "S" & "WB" Reels
    • Series "MMD" & "SM" Reels
    • Series "SHO" & "TMR" Reels
    • Welding Cable Reels
    • Low Profile Level Wind Reels
    • Vari-Matic Drive Reels
    • Motor-Driven Pendant Station
      Reels
    • Emergency Vehicle Reels
    • Series "SZ" Reels
    • Main Spring Assemblies
    • Cable Reel Roller Guides
    • Heavy Duty Reeling Systems
  • Festoon Systems:
    • Series Track Master
    • Series Beam Master
    • Series I-132
    • Series PDQ 300 I-Beam
    • Series PDQ 450 & 700 I-Beam
    • Series RTG 450 & 700 I-Beam
    • Series T-50 Curved Rail
  • Hose Reels:
    • Hose Reels
  • PowerTrak Drag Chains:
    • PowerFlex
    • PowerTube
    • Type "GRP" Molded Nylon
    • Type "E" & "EF" Steel Link
    • Type "G" Nylon & Aluminum
  • Conductor Bar, Electrification:
    • Conductor Bar, Electrification
  • Slip Ring Assemblies:
    • Compact & Rota-Power
    • Compact 30 Amp & 55 Amp
    • Compact 30 Amp (DR)
    • Rota-Power 35 Amp
    • Rota-Power 75 Amp
    • Rota-Power 125 Amp
    • Rota-Power 200 Amp
Pre-Engineered Products


Gleason
Pre-Engineered Products


  • Cable Reels:
    • "A" Cast Aluminum Reels
    • "ER" Hoist Reels
    • "G" Heavy Duty Cable Reels
  • Cord Reels:
    • Compact Cord Reels
    • Industrial Duty Cord Reels
    • Outlets, Lamps & Receptacles
    • CAT6 Data Reels
  • Festoon Kits & Components:
    • Wire Rope, Nylon, Cable/Hose
    • Wire Rope, Nylon, Flat Cables
    • Wire Rope, Steel, Flat Cables
    • Optional Components
    • C-Rail C25, Components
    • C-Rail C35, Flat Cable
    • C-Rail C35, Round Cable
    • C-Rail C35, Components
    • T-Track Heavy Duty
    • Kellems Cord Grips
    • Kellems Support Grips
    • NEMA 12 Electrical Boxes
    • Cable Connectors
    • Universal Cable Grips
    • Festoon Cable
    • Adjustable Beam Trolleys
    • Festoon Pendants
  • Hose Reels:
    • "GHA" Industrial Duty Reels
    • "EZ" Pull Heavy Duty Reels
    • "HC" Heavy Duty Reels
    • "EZ9" Clean Air Reels
    • "HH" Hand Crank Reels
    • "UH" Universal Reels
  • PowerTrak Kits:
    • PowerTrak Kits
  • Limit Switches, Geared Rotary:
    • 54 Series
    • 55 Series, NEMA 4
    • 55 Series, NEMA 7
  • Static Discharge Products:
    • Cable & Accessories
    • Static Discharge Reels
  • Tool Balancer Reels:
    • Accessories
    • Tool Balancer Reels

Workplace Solutions


Hubbell
Workplace Solutions


  • Booms and Jibs
  • Mobile Carts
  • Qualtech Computer Enclosures
  • Qualtech Document Stands
  • Tool Balancers
  • Workstations
  • Complete List & Catalog
  • Hubbell WS Idea Sheets
  • WS Replacement Parts
Gleason Replacement Parts


Gleason Replacement Parts

  • PowerTrak Replacement Parts

  • Reel Replacement Parts
Entertainment Solutions


Gleason
Entertainment Solutions


From performing arts and concerts to studio and television, Gleason Reel has the right products for the right application. These events typically include a variety of learning and entertainment activities, performances, plays and general assemblies, or large-scale seminars, theatre productions and award ceremonies. These spaces must accommodate the latest audio, visual, and lighting technology while providing maximum reliability to ensure that the show goes on.


  • Entertainment Products Guide
Manuals and Information


Gleason
Manuals and Information


  • Manuals and Information


This web site is owned and operated by Brake Products, Inc.
Brake Products, Inc.   16751 Hilltop Park Place
  Chagrin Falls, Ohio 44023
  Phone: (440) 543-7962
  Fax:     (440) 543-7963
  Web:   www.brakeproducts.com
  Email: sales@brakeproducts.com
  Federal ID #: 34-1473351
  CAGE Code: 1QTP8
  DUNS# 14-748-2392
  Download: Form W-9
Supplier of Industrial Brake Parts Since 1985
