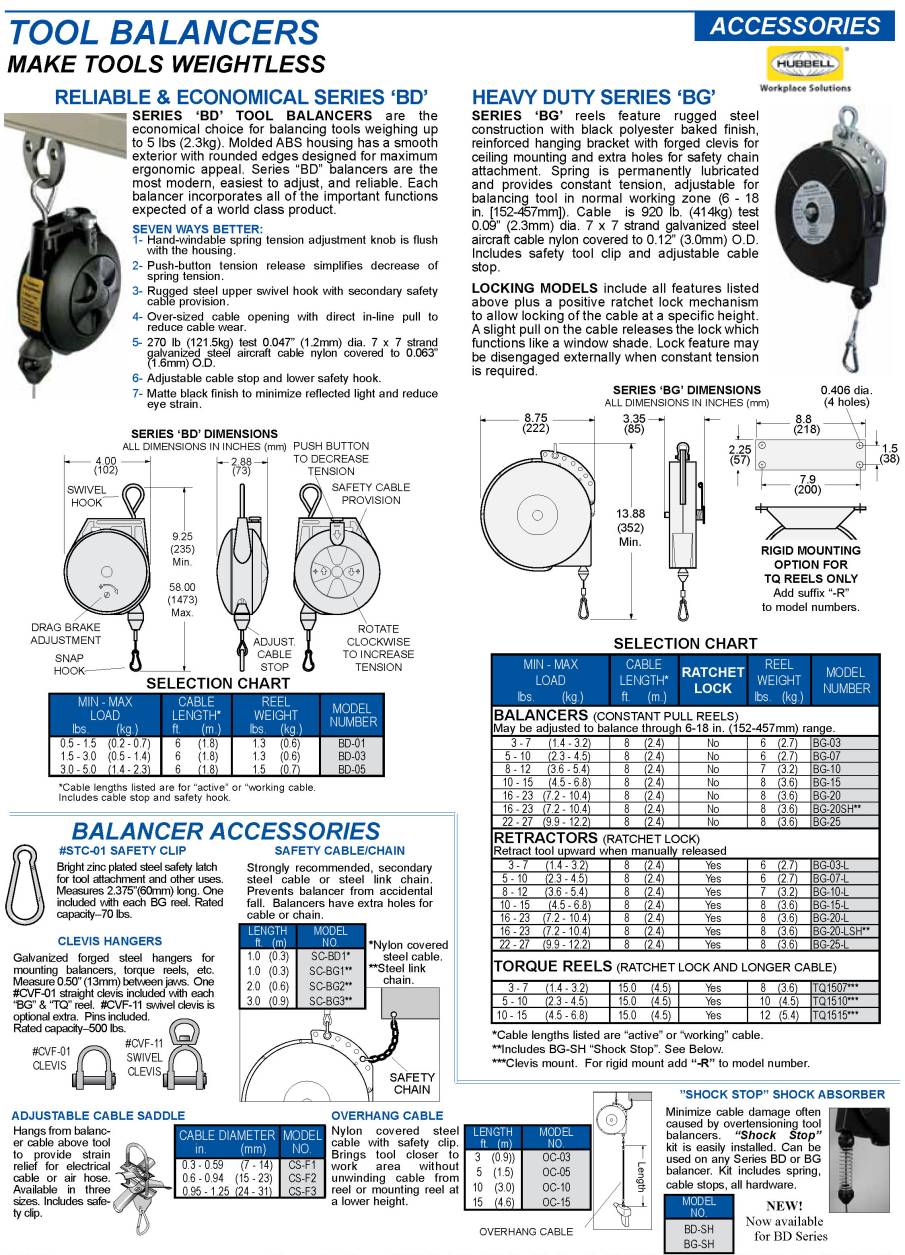

Hubbell Tool Balancers
|
|
TOOL BALANCERS MAKE TOOLS WEIGHTLESS
RELIABLE & ECONOMICAL SERIES "BD" TOOL BALANCERS are the economical choice for balancing tools
weighing up to 5 lbs (2.3kg). Molded ABS housing has a smooth exterior with rounded edges designed for
maximum ergonomic appeal. Series "BD" balancers are the most modern, easiest to adjust, and
reliable available. Each balancer incorporates all of the important functions expected of a world class
product.
HEAVY DUTY SERIES "BG" REELS feature rugged steel construction with black polyester baked finish,
reinforced hanging bracket with forged clevis for ceiling mounting and extra holes for safety chain attachment.
Spring is permanently lubricated and provides constant tension, adjustable for balancing tool in normal working
zone (6 - 18 in. [152-457mm]). Cable is 920 lb. (414kg) test 0.09" (2.3mm) dia. 7 x 7 strand galvanized steel
aircraft cable nylon covered to 0.12" (3.0mm) O.D. Includes safety tool clip and adjustable cable stop.

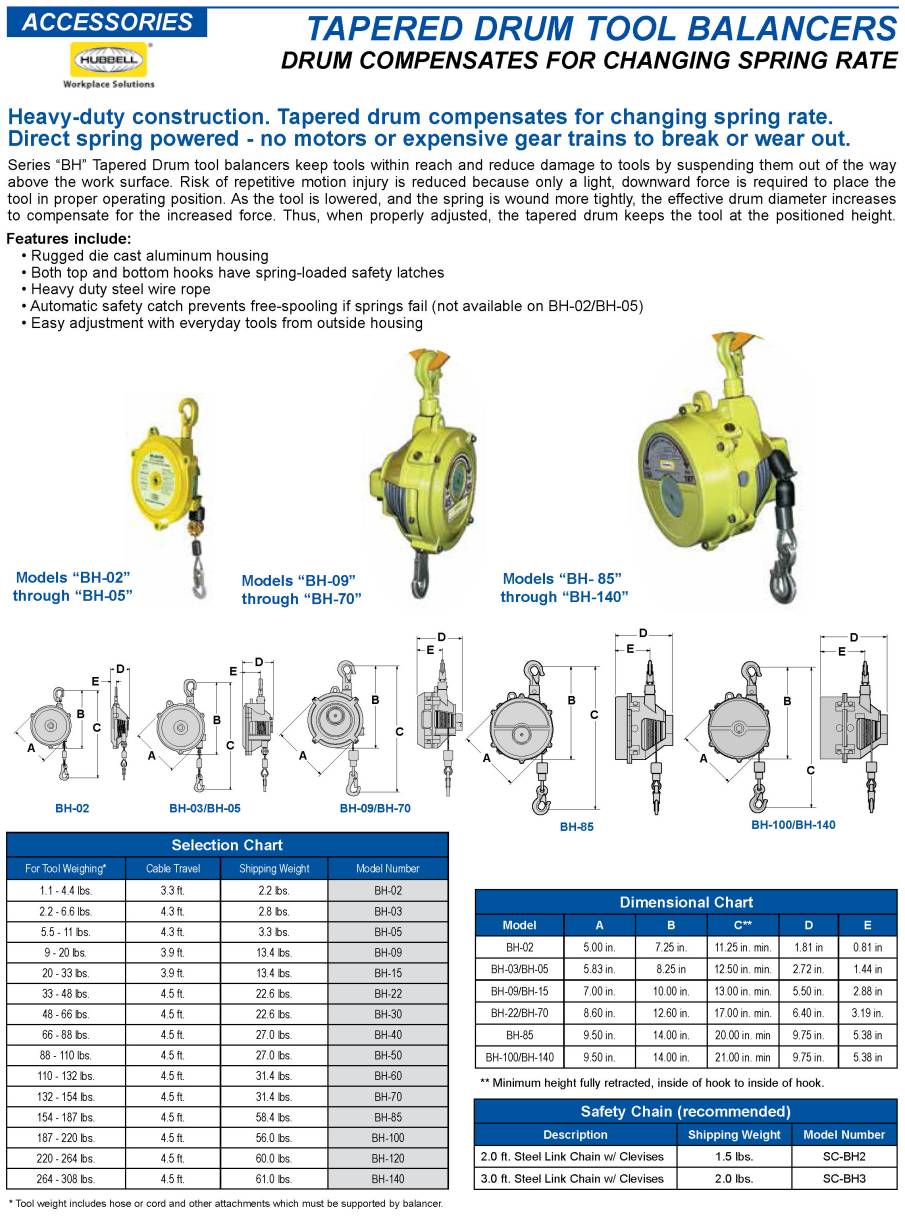

EXTRA HEAVY DUTY SERIES "BH" BALANCERS in various models for tools from 1.1 to 187 lbs.
Balancers feature tapered drums to compensate for spring rate, die cast aluminum housings and automatic safety
catches. Spring tension easily adjusted from outside housing without disassembly.
Hubbell Tool Balancers Information
|
|
|
